Summary of Contents for Quiet Vent Comfort Cooler 1700
- Page 1 Comfort Cooler 1700 & Cooling Coil Installation Guide...
- Page 2 Comfort Cooler Installation has been designed to be easily performed by any competent person. Simply, install the Cooling Coil to the air supply ducting, connect the water pipes to the cooling unit, install the pre-wired duct sensor, fill with water and switch on. The unit has been designed for minimal owner maintenance and only requires annual filter cleaning and inspection.

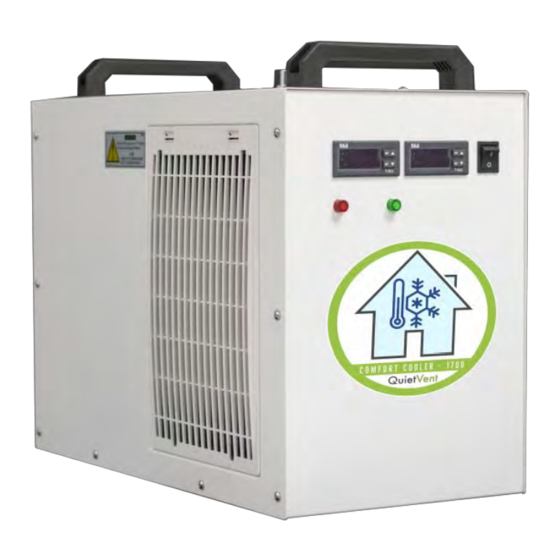

- Page 3 Quiet Vent Comfort Cooler Kit Contents CC-1700 Unit Duct Mounted Cooling Coil Plug High Efficiency Non-Toxic Refrigerant Antifreeze (1 Litre) Duct Temperature Sensor Duct Temperature Mounting Flange Jubilee Clips (x4) PTFE Tape Hose Tail (x2) 10. Pipe Insulation 11. 10mm Hose (2m)
- Page 4 Comfort Cooler Open your package and check contents. Fasten Cooling Coil to wall or floor via provided brackets. Install Cooling Coil into room air supply ducting after the MVHR unit. On 200mm coil only Attach hose tails to inlet & outlet on Cooling Coil, using PTFE tape provided.
- Page 5 Comfort Cooler Attach pipes to hose tail connections on the unit and fasten with provided jubilee clips. Attach other end of pipes to hose tail connections on Cooling Coil and fasten with provided jubilee clips. Drill 9mm hole in air extract ducting before the unit for temperature probe.
- Page 6 Comfort Cooler Remove cap and pour all the provided glycol mix into unit. Pour water into unit observing the water level gauge. Plug in the unit & switch on. (Check water level after switching on, pour clean water into unit until the water level maintains the full mark.) Unit temperature factory set at 17°C and cannot be...
- Page 7 Comfort Cooler (Optional) connect pipes (maximum 5m length) to the vent outlets at the back of the unit to expel heat given off by fans. If you have any issues installing the Cooler System, please contact our technical team by email or telephone to lend a helping hand! Most information can also be found on our website If you do require your system installed...
- Page 8 How to set the chiller unit to turn on at 26°C and turn off at 22°C. These instructions can be applied to suit the on/off temperature of your choice.
- Page 9 Notes...
-
Page 10: We're Here To Help
We’re here to help! Independent Distributors UK Office T: 028 2827 5150 Our expert technical support team on hand to aid you with any queries! E: sales@bpcventilation.com W: www.bpcventilation.com ROI Office T: +353 1526 7452 E: sales@bpcventilation.ie W: www.bpcventilation.ie Professional, wide range of installers throughout the UK &...
