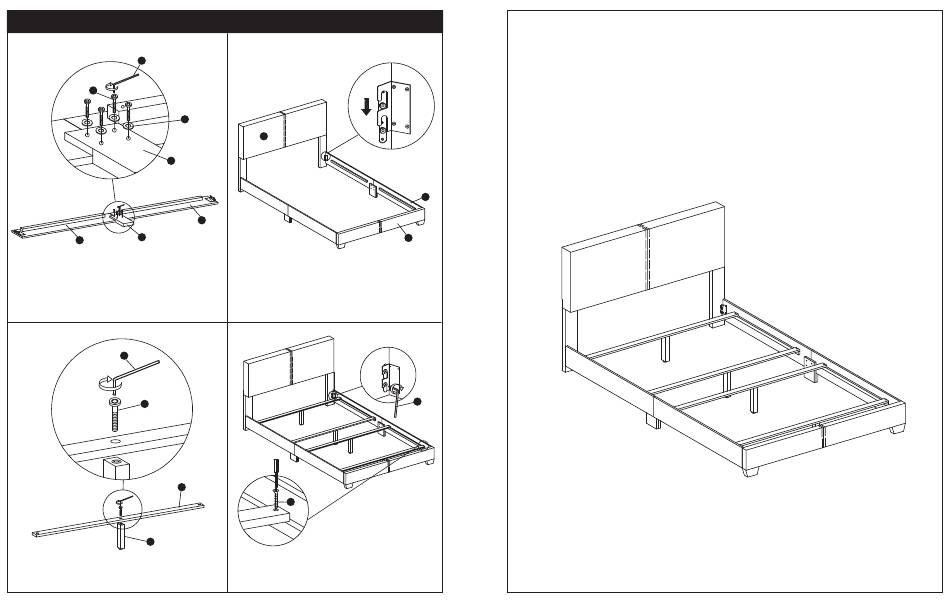

ASSEMBLY INSTRUCTIONS (CONTINUED)
STEP 4
N
K
R
F
F
C1
Attach the Side Rail Legs (Part F) to the Side Rails (Part C1 and C2)
using 30mm Bolts (Part K) and Flat Washers (Part R). Tighten
using Large Hex Key (Part N).
STEP 6
N
L
H
I
Attach the Center Leg (Part I) to the Slat (Part H) using 35mm Bolt
(Part L). Tighten the bolt using Large Hex Key (Part N). Repeat this
process for all 4 Support Legs.
A
STEP 5
A
C2
Attach the complete Side Rails to the Headboard (Part A) and
Footboard (Part B) by sliding the side rail brackets onto the bolts
on the Headboard Legs (Part D) and Footboard (Part B). Do not
tighten yet.
STEP 7
P
Place the four slats into the bed as shown. Tighten the bolts on
the headboard legs and footboard using Small Hex Key (Part O).
Secure the 4 slats using eight Screws (Part P) and a Phillips
Screwdriver. Your bed is now set up and ready for use.
C
B
O
A

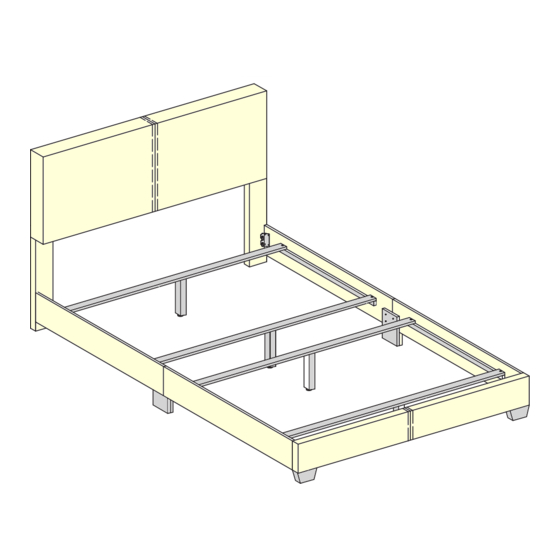

Assembly Instructions
Contains One Bed and Hardware
