ETE-TH07

Remote Accessible Health Check Monitoring Bracelet

Quick User Guide

Remote Health and Activity Monitoring Is Our Mission

Table of Contents

Need help?

Do you have a question about the ETE-TH07 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eye To Eye Security ETE-TH07

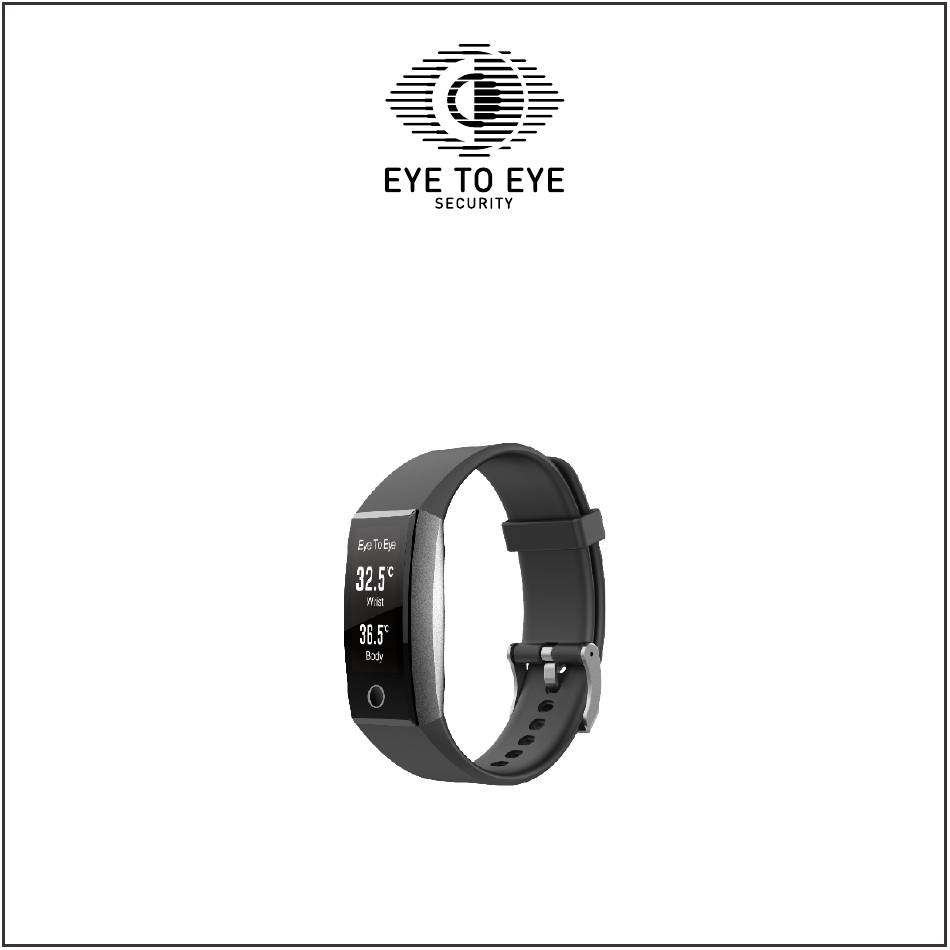

Page 1 ETE-TH07 Remote Accessible Health Check Monitoring Bracelet Quick User Guide Remote Health and Activity Monitoring Is Our Mission...
Page 2: Table Of Contents
Contents Page 1. Know your ETE-TH07 2. Download ETE Health and ETE Mobile Gateway Apps 3. Register your ETE-TH07 via the ETE Health App 4. ETE-TH07 User Interface 5. ETE-TH07 Functions 6. How to wear the ETE-TH07 7. Warranty and After Sales Services...
Page 3: Know Your Ete-Th07
1.Know your ETE-TH07 Strap Disassembly Schematic Screen Bluetooth ID You can pull oﬀ the ETE-TH07 strap to connect the ETE-TH07 body to a USB Charging device 1.80 Navigation Key Strap Charging Schematic USB Connector Activation & Charging Temperature Sensor Insert ETE-TH07 USB Connector...
Page 4: Download Ete Health And Ete Mobile Gateway Apps
ETE Mobile Gateway 3.Register your ETE-TH07 via the ETE Health App To register the ETE-TH07 via the ETE Health App, ﬁrst you need to Sign up with a valid email address and password. If you already have an existing account please continue to Sign in with your email address and password and follow the ETE-TH07 connection steps in the guide.
Page 5 If you already have an existing account please input your email address and password as shown below, click “Login” to login into your account. If you dont have an account click “Sign Up” to proceed to the Sign up page to enter your preferred email address and password.
Page 6 Under account registration interface, input a valid email and preferred password, click “Sign Up” to continue with account registration. After successful registration, please ﬁll in your name and your proﬁle picture respectively, it is not mandatory to add a proﬁle picture, you may leave the default avatar and change later on. After adding your name and picture, please click “Next”...
Page 7 Under Device connection interface, If you have the ETE-TH07 with you, click “Connect Device” to proceed to the ETE-TH07 selection interface. If you don't have the ETE-TH07 with you, select “No Device” and you will be directed to the ETE Health App Home interface.
Page 8 Hold the ETE-TH07 Navigation Key for 3 seconds and the screen will display four letter Code, this is your unique ETE-TH07 Bluetooth ID. If the Bluetooth ID is not displayed on the screen, please pull oﬀ the ETE-TH07 strap and insert the USB connector into a USB charging device.
Page 9 This alert appears if your Bluetooth is turned oﬀ After ensuring your mobile phone Bluetooth is turned on Click “Next” to proceed to the “Device list” to select your ETE-TH07 to be paired with the ETE Health App. Page 7...
Page 10 Bluetooth. If you are using Android mobile phone, Bluetooth pairing is done automatically and if the ETE-TH07 is not available under Device list, please go to mobile phone Bluetooth settings, pair ETE-TH07 manually and return to ETE Health App Device list, it will appear.
Page 11 This completes the ETE-TH07 activation process. If you have chosen “No Device” during the connection steps and now you want to connect the ETE-TH07 to the ETE Health App, please click the Menu Button in the Homepage, as highlighted above in red.
Page 12 In the Menu page, select “Bracelet Settings”, a pop up message will come up notifying you that no ETE-TH07 is paired with the ETE Health App. Press “OK” to continue with the ETE-TH07 pairing to the ETE Health App where you will be directed to the Device model selection interface.
Page 13 Under Device model selection, please select ETE-TH07 and proceed to the next step with short guide to activate ETE-TH07 display and view the Bluetooth ID. Plug ETE-TH07 into any USB charging device to view the ETE-TH07 Bluetooth ID and follow Steps for new device pairing as instructed earlier on in the guide.
Page 14: Ete-Th07 User Interface
4.ETE-TH07 User Interface 1. Introduction to ETE-TH07 widgets After activating your ETE-TH07, the temperature widget is displayed by default. You can tap the Navigation key to switch between the dedicated ETE-TH07 widgets shown below: Temperature SOS conﬁrmation Time Press the 32.5...
Page 15: Ete-Th07 Functions
This widget shows your Wrist and Body temperature upon wearing the ETE-TH07 ﬁrmly on your wrist. 32.5 This is the ETE-TH07 default display widget, it comes ﬁrst Wrist upon activation and whenever the display turns oﬀ and on Temperature data is always synchronized with the ETE Health App...
Page 16 This information is synchronized from your mobile phone. It is important to synchronize your ETE-TH07 with the ETE Health App all the time, as the time displayed on your ETE-TH07 may be incorrect, if its not synchronized for a period of time.
Page 17 This widget comes up whenever the ETE-TH07 detects an abnormal body temperature. This is accompanied with the ETE-TH07 vibration to alert you that your temperature is abnormal. At the same time an abnormal temperature alarm is sent to the ETE Health platform to alert the Platform manager for further action.
Page 18 Under Menu please select “Bracelet Settings” to proceed to the “Device Details” interface as highlighted below. Under Device Details please select “Device Settings” to proceed to the ETE-TH07 settings. Page 16...
Page 19 Skin Temperature and Activity interface as highlighted below. Under Skin Temperature and Activity, you can set desired Body Temperature Upper and Lower limit levels as highlighted above. Click “Save” to save the settings and for the ETE Health App to synchronize the settings with ETE-TH07. Page 17...
Page 20 ETE-TH07 doesn’t calculate weather in your location. 6. Message Alert Display The widget comes up when a new message is received on your mobile phone. This is accompanied with the ETE-TH07 vibration to alert you that there is a new message. Mike:Let'...
Page 21 ETE-TH07 will display caller number or contact information if its saved in your mobile phone. To reject the call, press and hold the ETE-TH07 Navigation Key for 3 seconds. At the same time, the ETE-TH07 will display a rejection message which you can view by again pressing and holding the Navigation Key for 3 seconds.
Page 22 ADVANCE Access Code To access the above mentioned ETE-TH07 Health activities press and hold the Navigation Key for 3 seconds. Upon entering Advanced Menu, “Running” activity widget will show up ﬁrst. Tap the Navigation Key to switch between diﬀerent ETE-TH07 Health activity...
Page 23 These include outdoor running and cycling activities. To start any of the activity tracking press and hold Navigation Key for 3 seconds whilst on the activity widget. ETE-TH07 will try to connect with mobile phone for GPS access through the ETE Health App.
Page 24 Timeout” message is displayed on ETE-TH07. Click “Got it” by pressing and holding the Navigation key for 3 seconds and ETE-TH07 will enter into running/cycling mode however location tracking data will not be recorded in the ETE Health App. (ii) Gym Mode Display These include Treadmill, Elliptical, Cycling and Aerobics activities.
Page 25 If you wish to stop the activity tracking, tap the Navigation key to switch to the widget below. Stop To stop the activity tracking, press and hold the Navigation key for 3 seconds and ETE-TH07 will go back to the default body temperature widget.
Page 26: How To Wear The Ete-Th07
1 - 3 c m 时间 If the ETE-TH07 doesn’t show body temperature whilst you have already wore it to the best tight position please calibrate the sensor through the following steps: 1. Take oﬀ the ETE-TH07 from the wrist.
Page 27: Warranty And After Sales Services
Please read the warranty guide carefully before using the ETE-TH07. 1. Warranty period for the ETE-TH07 is One year. 2. You will not be able to enjoy free warranty service on the ETE-TH07 under the following conditions: i) Damage caused through repair services done by a non-Eye To Eye Security special maintenance center.
Page 28: Basic Parameters
Silicon UV-Resistant, Breathable Note: For a better user experience the ETE Health App software and the ETE-TH07 ﬁrmware will be updated from time to time via OTA, please update to the latest push versions, whenever an update is available Page 26...
Page 29 Thank you for choosing ETE-TH07 Remote Accessible Health Monitoring Bracelet. If you would like to know more information about ETE-TH07, please contact us on our email below or alternatively Scan QR Code below to visit our website Eye To Eye Security Dubai, UAE Email: info@eyetoeyesecurity.com...
