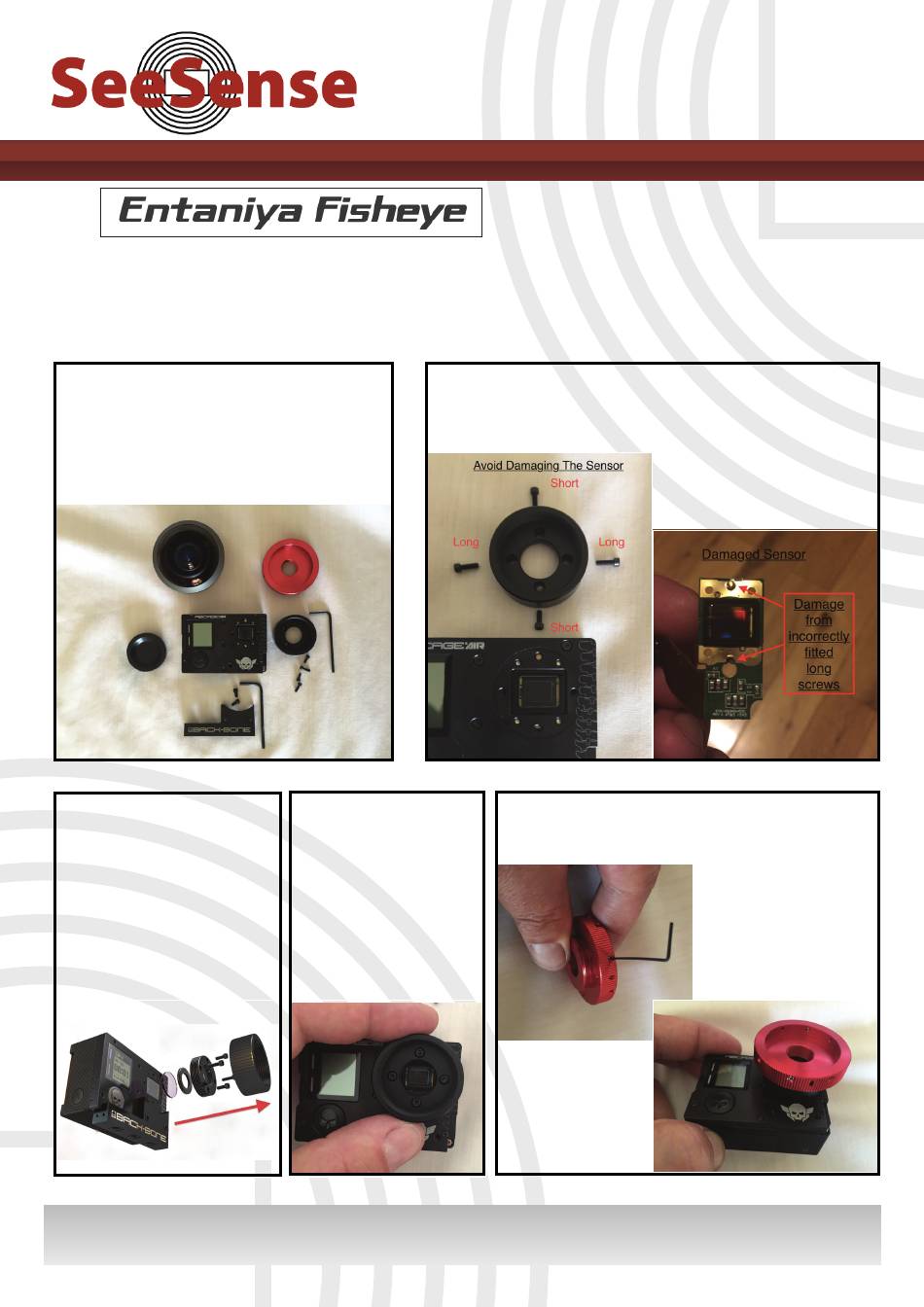

SeeSense Entaniya Fisheye How To Mount

To get the best from your GoPro BackBone camera fitted with Entaniya lenses it is essential
to mount the lens centrally in front of the image sensor.
This helps ensure that there are no uncovered areas in your 360VR video and that the
optimal area of the captured video can be used for a sharp image stitch.
Below is a step by step guide of we preparing cameras for customers.

Equipment required:

GoPre Ribcage modified camera,
Entaniya lens of choice, Micro
HDMI - HDMI cable, HDMI
monitor, AND SOME PATIENCE!
2) REMOVE BACKBONE
TRIPOD MOUNT
AND THE ORIGINAL
BACKBONE 2 PART LENS
MOUNT.
The IR cut filter is not
required since the lens
has one fitted.
Email: Sales@SeeSense.eu
Mob: 00 44 7967 445829
Web: www.SeeSense.eu
Miniature Camera Solutions
How to mount an Entaniya Lens on to a Ribcage GoPro Camera
3) FIT THE BLACK
ENTANIYA MOUNT ON
THE CAMERA TAKING
A SPECIAL NOTE OF 1)
ABOVE.
The screws do not
need to be tight, they
will be loosened again
shortly.
SeeSense s.r.o. Slovakia
Tel: 00421 917 163 367
PO Box 42, Kezmarok, 06001, Slovak Republic

1) RULE NUMBER ONE

sensor. ONLY fit the short
screws at the 12 and 6
o'clock positions. Fitting
the long screws here will
damage the sensor.
4) FIT GRUB SCREWS TO THE RED ENTANIYA
ADAPTER
SeeSense United Kingdom
Tel:
4C Woodley Park Est, Reading, RG5 3AW, UK
Avoid damaging the
Fit four screws
equally around the
mount but do not
screw all the way
through.
NEXT, FIT THE RED
ENTANIYA ADAPTER
ON TO THE CAMERA.
Rev: 1.012.0816 E.&.O.E.
00 44 203 468 2250
