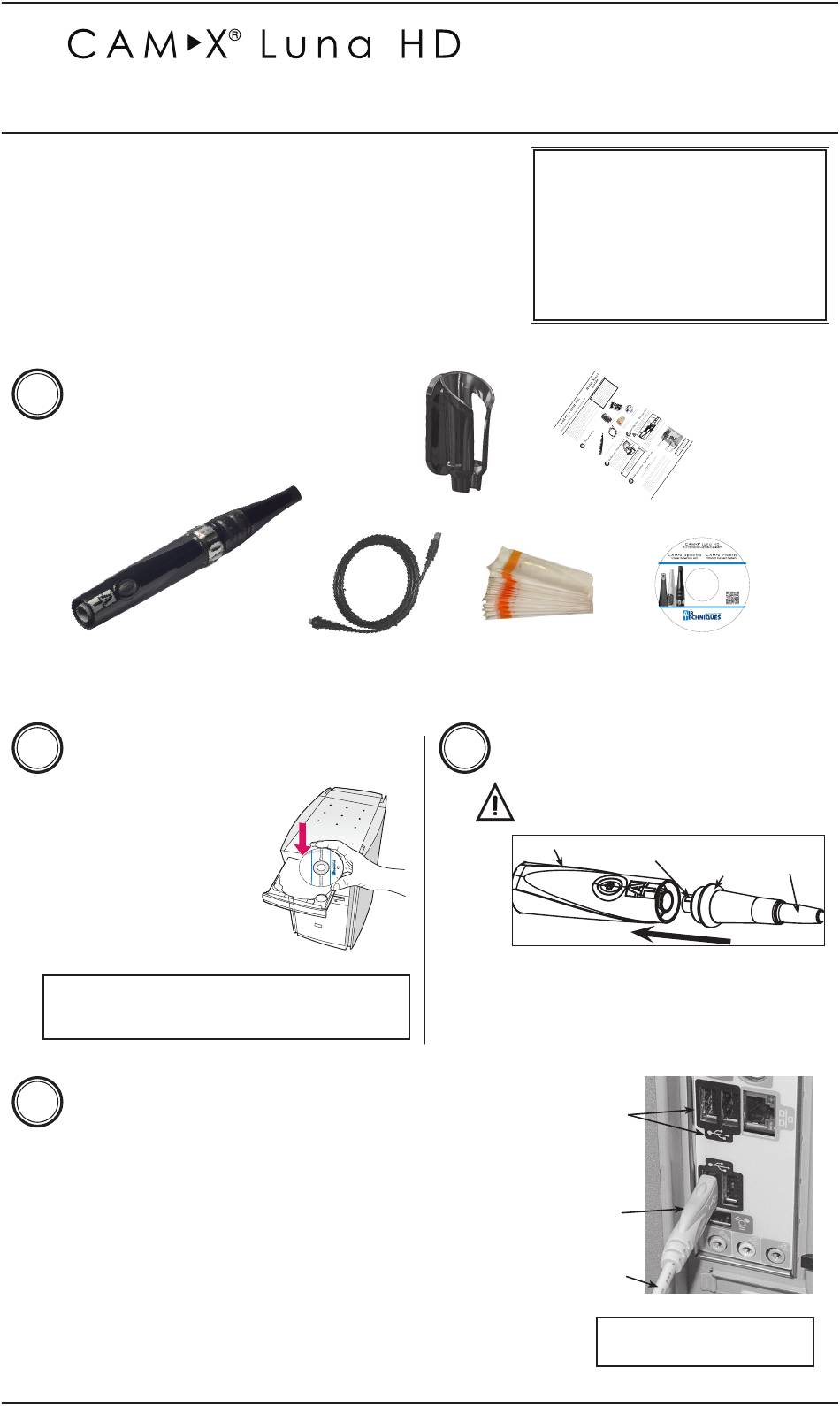

Cam-X Luna HD Quick Start Manual

High Definition Intraoral Video Camera System
Thank You and Congratulations
high definition camera in the dental video imaging product line from Air
Techniques, a leading manufacturer of dental equipment since 1962.
Luna HD offers the flexible benefits of USB Plug-N-Play technology that is easily
integrated into any practice. The lightweight one-piece handpiece is extremely
maneuverable and produces crisp, clear images.
This document provides brief information to help you get started using your
Luna HD for the first time.
Please refer to the Operator's Manual PDF file on the Drivers and Utilities
Disk for detailed information.
1
C o m p o n e n t s

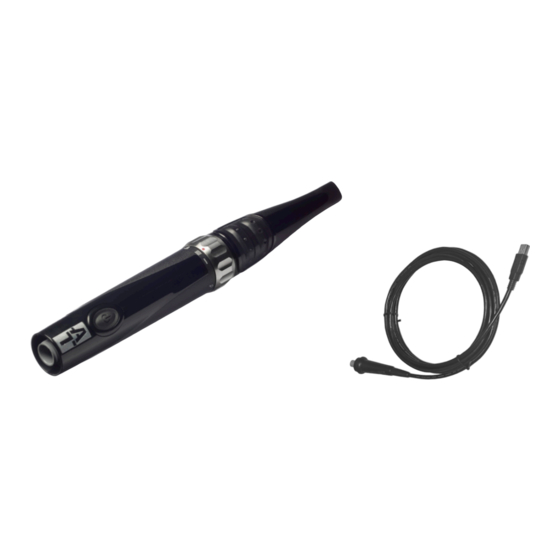

Luna HD Camera Handpiece
2
S o f t w a r e I n s t a l l a t i o n
Before connecting Luna HD or
attempting to use it for the first time,
device drivers must be installed
to communicate with the imaging
software installed on your computer.
Refer to the Software Installation and
Configuration Guide as needed and
run the Setup program on the Drivers
and Utilities Disk.
Note: If the startup screen does not appear, double-click
My Computer, double-click the CD drive and then
double-click Autorun.exe.
4
U S B I n t e r f a c e C o n n e c t i o n s
Use a High Power (500 mA) USB 2.0 Port Only
1. Connect the USB Type A connector side of the Handpiece Cable to any
available USB 2.0 high speed, high power port on your Computer System.
2. Always make sure to use the same USB port whenever re-connection of the
USB cable is necessary.
3. A self-powered USB hub can be used to extend the handpiece cable length.
4. Do not use a BUS - powered hub or extension cable.
on your purchase of Luna HD, the latest
USB 2.0 Cable,
10 Feet
IMPORTANT:
Online Warranty Registration.
register your new Luna HD online.
have the product model and serial numbers
available. Go to the Air Techniques web site,
www.airtechniques.com, click the Warranty
Registration link and complete the form.
Registration ensures a record for the warranty
period and helps to keep you informed of product
updates and other valuable information.
Handpiece Holder
with Wall Mount
Disposable Camera
Sheaths Sample Pack
H a n d p i e c e C o n n e c t i o n
3
Do not twist or turn the Handpiece Cable connec-
tor. The connector is keyed and mates straight on
with Handpiece connector.
Handpiece
1. Using the black molded connector end of the Handpiece
Cable, align the connector key with the keyway of the
Handpiece connector.
2. Insert straight into Handpiece connector until it securely snaps
into place.
Typical Computer
USB 2.0 Ports
USB Type A
Q u i c k S t a r t
G u i d e
Quick Start Guide
Disk P/N G1415 Rev L
Melville, NY U.S.A.
Software Drivers
and Utilities Disk
Quick
Connector
Disconnect
Key
Collar
Connector
Handpiece
Cable
Note: Desktop computer shown.
Laptop can be used.
Quickly
Just
Includes:
►Operator's Manuals
• Spectra
• Polaris
• Luna HD
►Software Installation and
Conguration Guide
►Acrobat Reader
►Installation Program
Handpiece
Cable
