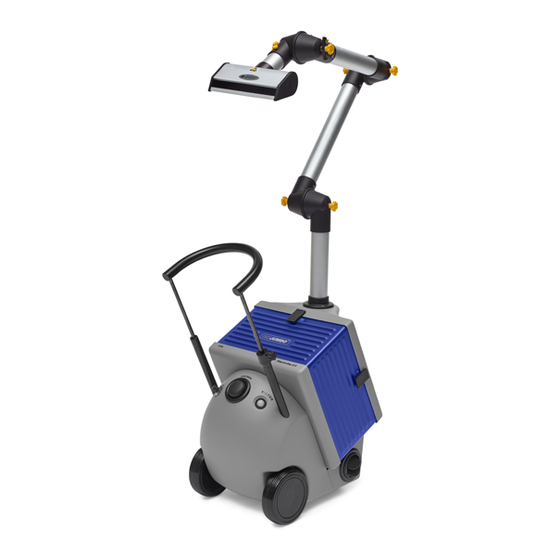

Summary of Contents for ULTJUMBO Filtertrolley 2.0
- Page 1 USER MANUAL Filtertrolley 2.0...
-
Page 2: Table Of Contents
Table of contents Preface Usage and Application 2.1. Models 2.1.1. Filtertrolley 2.0 LRA 2.1.2. Filtertrolley 2.0 LAS 2.1.3. Filtertrolley 2.0 ACD 2.1.4. Filtertrolley 2.0 ASD Safety 3.1. Workstation Safety 3.2. Safety Instructions 3.3. Remaining Risks 3.3.1. Accident Prevention – Mechanics 3.3.2. -
Page 3: Preface
The device impresses with its functional, up-to-date, and appealing design. Work without draft Filtertrolley 2.0 removes air borne hazardous substances directly from the place of their origin and filters them instantaneously. With supreme power. With the lowest possible energy consumption. Noiseless and adaptable. The extreme filter efficiency guarantees purest air quality. -
Page 4: Usage And Application
2. Use and application 2.1 Models Filtertrolley 2.0 is a versatile filter device. Many different device types with specified filter systems are available for their respective application cases. Each particular device type may only be used to capture, suck off, and filter those suction goods for which the producer determined the tool. -
Page 5: Filtertrolley 2.0 Lra
The Filtertrolley 2.0 LRA may be used for direct suction cleaning at the soldering tip (e.g. robot) as well as in combination with joint suction arms. Soldering processes generate a lot of soldering smoke (fine dust from soldering flux, gases, vapours, fumes, and others). -
Page 6: Filtertrolley 2.0 Las
According to working environment regulations they have to be removed from the air. The Filtertrolley 2.0 LAS has to be utilized directly at laser work places or at laser units; thus, emerging hazardous substances can be removed at the place of their origin. -
Page 7: Filtertrolley 2.0 Acd
- laminating - founding The Filtertrolley 2.0 ACD is an essential device that helps to protect the human health as well as the workplace environment. Partly unhealthy gases and vapours released to the air are immediately captured at their origin by suction elements and thereafter filtered with the Filtertrolley 2.0 ACD. The... -
Page 8: Filtertrolley 2.0 Asd
Hence, money can be saved. The efficiency of the filter is significantly higher than 99%. Use and Application The Filtertrolley 2.0 is a suction and filter device for mobile and stationary use. It is suitable for capturing and filtering dry, non-combustible, and non-explosive dusts. The range of application covers:... -
Page 9: Safety
3. Safety Operate the Filtertrolley 2.0 only as described in this user information; thereby, on hand dangers will not appear. - The Filtertrolley 2.0 is suitable for demanding tasks in commercial and industrial applications. - The Filtertrolley 2.0 is a state-of-the-art device and therefore save to operate. -
Page 10: Safety Instructions
Filtertrolley 2.0 has to be protected with a 6A fuse against electrical damage! - The Filtertrolley 2.0 may not be used for sucking off gasses, steams, and dusts in explosive concentrations! - Unplug power cable before opening the device! - Always carry out disposal of worn out filter media according to valid waste regulations! -
Page 11: Remaining Risks
3. 3. Remaining Risks 3.3.1. Accident Prevention – Mechanics - All moving parts (fan, motor) are covered by securely mounted protection equipment. The cover can only be removed with the help of tools. - Remaining Risk: Serious injuries may occur if safety covers are removed while the device is still running. 3.3.2. -
Page 12: Specifications / Technical Features
4. Specifications / Technical Features Max. 850 mm 530 mm 450 mm 340 mm max. air flow: 170 m³/h max. vacuum: 2,800 Pa constant air flow: 80 m³/h at 1,400 Pa electrical connection: 230 V/50 Hz input power: 150 W dimension: 450 x 340 x 530 mm weight:... -
Page 13: Design And Description
Filtertrolley 2.0’s built-in fan produces a vacuum at the suction flange or the respectively attached suction element. Air pollutants are immediately captured and sucked off at their place of origin. The polluted air is led trough the filter, whereby it is cleansed. The manufacturer offers filter cassettes with special filter combinations for dusts, smokes, gases, and vapours. -
Page 14: Parts Identification
5.2. Parts Identification suction flange air-distribution plate filter loaded filter draw latch indicator power switch nozzle wheel... -
Page 15: Start-Up
- Check whether the device type meets your requirements and suits your application. 6.2. Device Set Up and Connection This picture shows the Filtertrolley 2.0 lying on the ground. You can rotate the suck-in plate so that the suction flange meets your requirements. - Page 16 Set up the suction unit according to your work place. To safely capture all pollutants, position the suction element close to the place where the hazardous substances emergence. If the suction element is not directly attached to the Filtertrolley 2.0, connect it with a short hose.
-
Page 17: Operation
The optionally installed “loaded filter indicator” shows the current state of the filter. As long as the LED glows green the Filtertrolley 2.0 is in normal mode. The filters are saturated when the LED changes to red. Then proceed as described in section 7. -
Page 18: Possible Malfunctions
8. Possible Malfunctions Problem Cause Elimination of problem - fan does not run - no electrical power - check mains voltage - fan does not run - malfunction of device or - repair by a specialist control electronic (specialist dealer) - not enough suction capacity - filters are saturated - filter replacement... -
Page 19: Attachments: Accessories
Attachment - Accessories Suction arms alternatively mounted either on the device or on separate desk/wall Alsident S 50 d: 50mm Range: 550, 750, 950 or 1350mm Alsident S 75 d: 75mm Range: 650, 900 or 1050mm Suction elements (matching the Alsident suction arms) S 50 S 75 in mm... -
Page 20: Wear And Spare Part List
Device warranty is void if spare parts from other manufacturers are used! Contact Information: ULT AG Am Göpelteich 1 / OT Kittlitz D-02708 Löbau Tel.: +49 (0)35 85 / 41 28 0 Fax.: +49 (0)35 85 / 41 28 11 Mail: ult@ult.ag www.ult.ag www.ultjumbo.com... -
Page 21: Filter List
Attachment - Filter List Type Description LRA / LAS multi-level filter cassette (complete) multi-level filter cassette - up to H13 sublimation pre-filter replacement frame with filter mat F5/F7 replacement frame filter mat combination F5/F7 1 pc. filter mat combination F5/F7 10 pcs. dust-filter-cassette (complete) dust-filter-cassette up to H13 pre-filter cassette EU4 1 pc.
