Humminbird Piranha 5 Installation Manual page 5

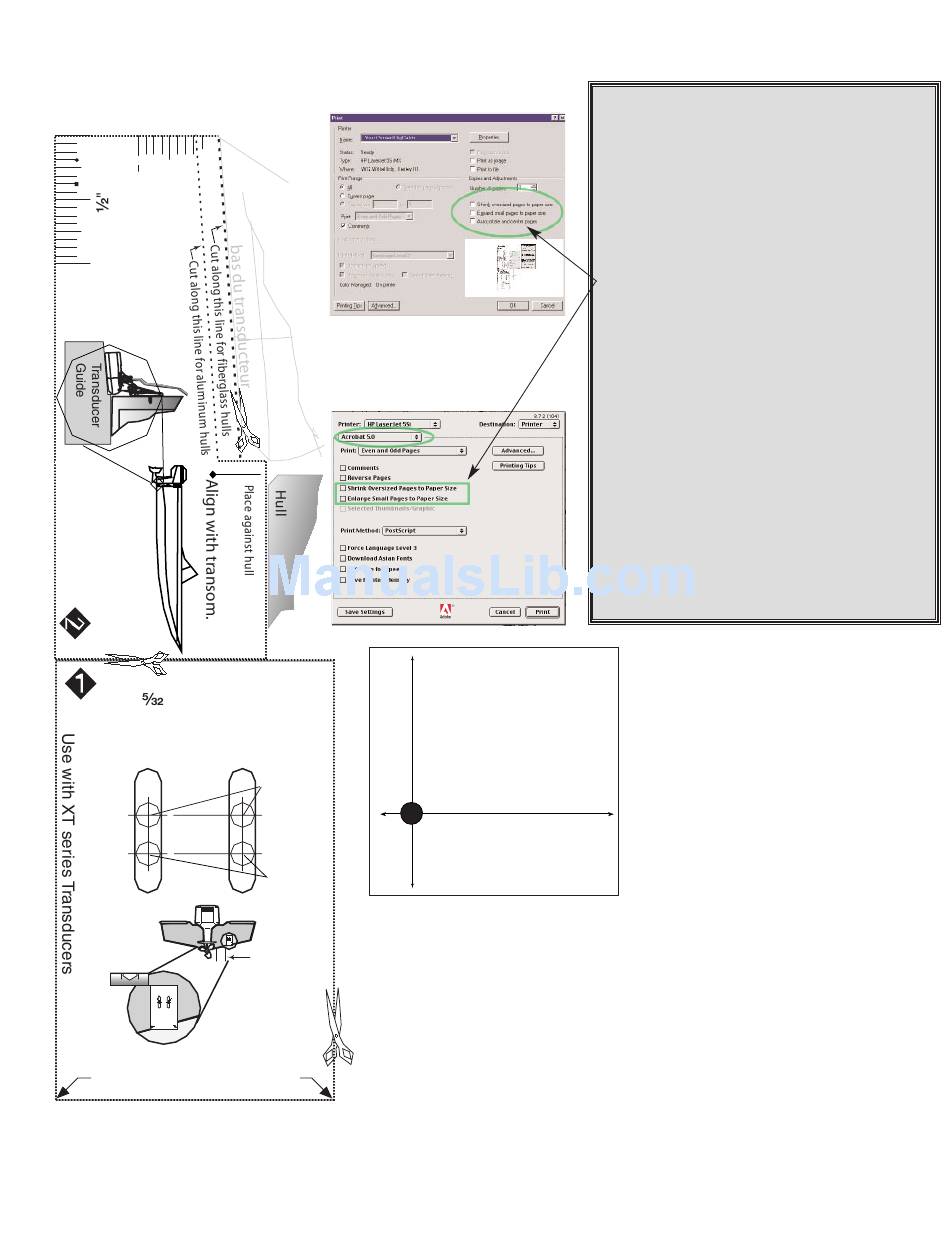

Remove and use for
Transducer Installation
Fibre de verre
Aluminum
TOP
Use " (4.0mm) drill bit
Drill a set of two holes for your type of
boat hull. Use the upper set for fiberglass
or the lower set for aluminum.
Use 5/32" drill bit
Drill Drill
DO NOT LET DEADRISE INTERSECT THIS LINE
PLACE EITHER CORNER ON DEADRISE ANGLE
15", 380mm
Level
TOP from prop(s)
TOP
Use 5/32" drill bit
Drill Drill
PLACE EITHER CORNER
ON DEADRISE ANGLE
PLACE EITHER CORNER
ON DEADRISE
Windows Sample Print Menu
Macintosh Sample Print Menu
This reference square
should measure 2" x 2" when
printed.
Set your Page Setup % in your
Printer utility to either enlarge
more or reduce the printed
Drill
template if adjustment is needed.
Fiberglass
2"
Drill
Alumium
Adobe Acrobat has several ways to control the
output size of a document.
In "Page Setup" set your sheet size to the size
of sheet used and Scale to 100%.
Under Print, pick the options for "Adobe Acrobat
(Version Number)" i.e. Acrobat 5.0 and DESE-
LECT
•"Shrink Oversize Pages to Paper Size"
•"Enlarge Small Pages to Paper Size".
If your printed template does not match the 2"
size requirement, increase your percentage set-
ting if it is less than 2", decrease your percent-
age setting if it is greater than 2".
If you wish to calculate the needed percentage
divide 2 by the measured size. Use this result
as a percentage for your "Page Setup".
Example:
Measured size = 1 13/16"
2 ÷ (1 + (13 ÷ 16)) = 1.103 or 110%
or 2 ÷ 1.8125 = 1.103 or 110%
Set your Page Setup scale to 110%
