Instruction Sheet
Home

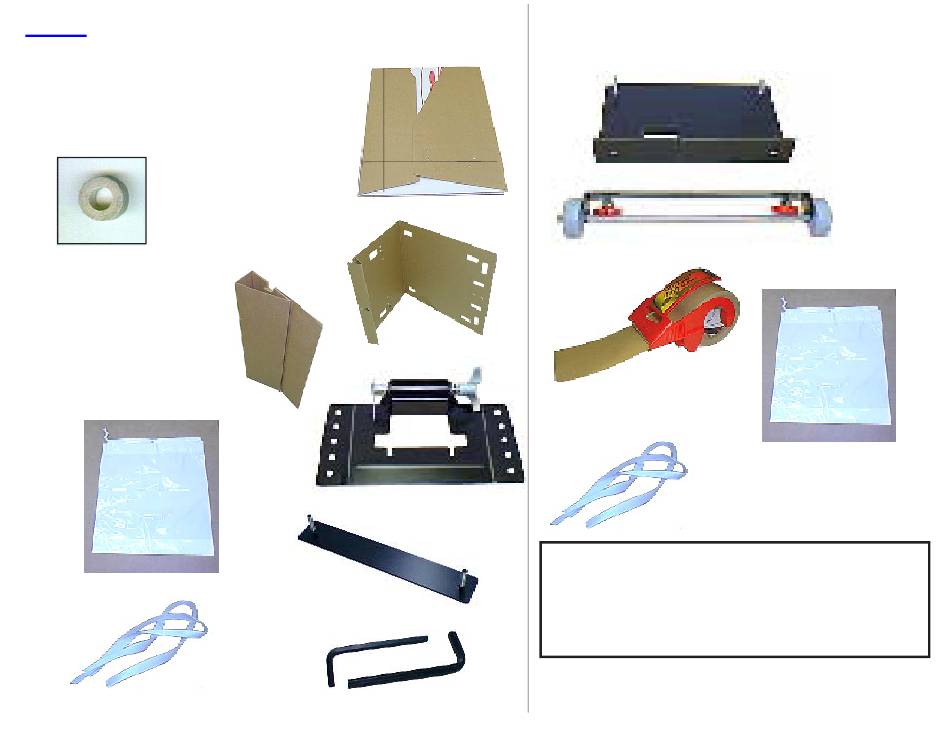

Step-1
Please check for
any missing parts.
(1) B1000-00 FOLDED TRIANGULAR
CORRUGATED BOX
39"L X 31"W X 3"H
(2) C3755-00 LARGE
CORRUGATED INSERTS
(1) S7035-00
7MM AXLE WASHER
(2) C3750-00 SMALL
CORRUGATED INSERTS
(1) B1250-00 SADDLE TRAVEL BAG
(6)B1220-00 FLAT NYLON TIES
Model K9100 COMPACT
(Basic AirCaddy)
39" length
31" width
(1)T3197-00 METAL FORK MOUNT
(1) B3210-00 METAL TRANSIT PLATE
(1) B1382-00 5MM AND 6MM ALLEN
aircaddy web page 20 04/03/12 98%
(1) T3230-00 METAL WHEEL TRUCK
(1) B1250-00 SADDLE TRAVEL BAG
(1) B1350-00 2 INCH WIDE
TAPE AND DISPENSER
(6) B1220-00 FLAT NYLON TIES
a
IRCADDY .com
2012 K9100 COMPACT
Worldwide Cycling Solutions Through Creative Innovations.
Because of the constant evolution of our products the
materials and colors are subject to change without notice.
Model K8350
(Aircraft Kit)
(Optional)
Advertisement
Summary of Contents for AirCaddy K8350
- Page 1 20 04/03/12 98% Instruction Sheet Home Model K9100 COMPACT Model K8350 (Basic AirCaddy) (Aircraft Kit) Step-1 (1) T3230-00 METAL WHEEL TRUCK Please check for (Optional) any missing parts. (1) B1000-00 FOLDED TRIANGULAR 39” length CORRUGATED BOX 39”L X 31”W X 3”H 31”...
- Page 3 22 04/04/12 Bottom of box Step-6 The side flaps should be flipped over to begin forming the closed No.1 bottom of the box. Step-7 Flip the front flaps over so that they are on top of the side flap (folded over in the previous step).
- Page 4 Locate the ground transit plate. (You may substitute the wheel truck for the ground transit plate, if you purchased the K8350 kit.) Place the wheel truck or ground transit plate at Ground Transit Plate the front of the bottom of the box so that the studs go through the holes into the box.
- Page 5 Step-11 aircaddy web page 24 04/04/12 2012 LARGE INSERT Fold each large insert as shown. Then fit both inserts into the shell of the box. Be sure to lock the tab of the inserts at the rear of the shell as show in steps F, G, and H.
- Page 6 Place two wing nuts over the threaded studs and tighten clockwise. ( 27”- 700C) (20”- 24”- 26 ATB- 650C) aircaddy web page 25 04/04/12...
- Page 7 04/04/12 For Mountain Bicycles with Flat Bars (optional) Step-13B Place the fork mount on a flat surface outside the box. De- pending on wheel size, orient the fork mount as shown. Insert the fork into the fork mount and tighten the wing nut clockwise.
- Page 8 04/04/12 For Mountain Bicycles with Flat Bars (optional) Step-13C Place bike with fork mount into the box. Place the fork mount over the threaded studs protruding through the bottom of the box. Choose the pair of holes in the fork mount which allow the head tube to be as close as possible to the front of the box without touching.
- Page 9 Fold the two small inserts and insert them into the box as shown. Position them toward the rear of the box to the point where they lightly press against the bicycleʼs seat stays and or chain stays. Do not let the inserts touch the chainrings (chainwheels). aircaddy web page34 10 24 08...
- Page 10 29 04/04/12 Step-15 Place your saddle with seatpost into the small white draw string bag and secure it to the Step-16 Place the front chain side of the box with one tie. Use one more tie to secure the white...
- Page 12 AirCaddy will repair or replace any original equipment parts it determines to be defective for lifetime of the original owner. Note: the cardboard box is designed for 4-6 trips, and is not covered in this warranty. When the outer shell is worn out, the K9100 replacement shell is available to the original owner with proof of purchase. This warranty applies only to the original owner and is nontransferable.
