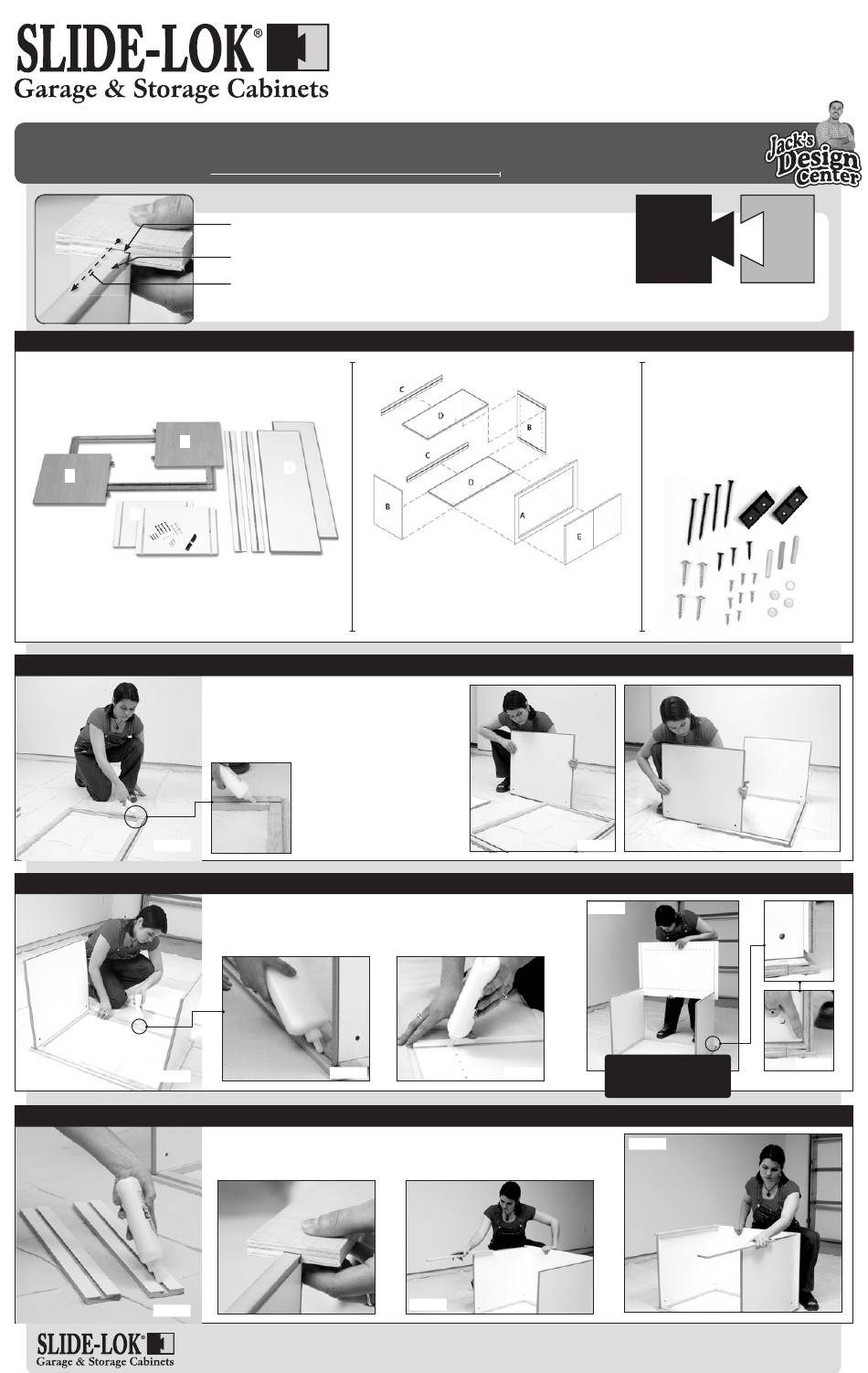

S2424 - S3624 - S4824
Assembly Instructions
Step 1. - Identify all Pieces
Remove cabinet parts from box and identify all pieces as
pictured in fig. 1.
A
E
E
B
Note:
S3624 stackable cabinet shown. Overall
dimensions of your Cabinet parts may vary
depending upon the model number of the
cabinet you are assembling
Step 2. - Attaching Top and Bottom Shelves
[ fig 2 ]
Step 3. - Attaching the First Side Panel
[ fig 3 ]
Step 4. - Attaching Top and Bottom Nailers
[ fig 4 ]
READ ALL INSTRUCTIONS BEFORE YOU BEGIN.
DO NOT JUMP AHEAD OF ANY STEP.
If this is your first time assembling a SLIDE-LOK cabinet
cabinet without gluing to give yourself the opportunity to become familiar with the assembly process of SLIDE-
LOK storage cabinets. All components will slide together without force or effort if the dovetails are lined up
properly. Do not force. If force or exertion is necessary, pieces are not aligned correctly. Take apart and
start over. Be sure to glue all joints at time of assembly. Allow glue to completely dry before installing.
The Patented Dovetail Assembly System
Female Dovetail
Glue this edge
Male Dovetail
Slide Together
Slide Female dovetail
into Male dovetail
D
C
[ fig 1 ]
Place face frame "A" face down on a smooth surface
to prevent scratching (you may use the box it came
in). Glue all female dovetail joints as shown in fig. 2.
Slide shelves "D" into position while aligning as in fig.
2A & 2B with holes closest to the face frame.
NOTE:
A general purpose carpenters wood glue
is recommended for assembly. Apply a
1/16" bead of glue to the entire length of
the female Dovetail joint
Glue rabbet joint as in fig. 3A. Dovetail joint and side panel as in fig. 3B. Slide
one side panel "B" into place while aligning dovetails on top and bottom of
both shelves (see fig. 3C). Make sure to start all dovetails simultaneously,
then slide side panel into rabbet joint as in fig. 3D & 3E.
[ fig 3A ]
Glue the female dovetail on the nailer see fig. 4. Slide one nailer onto the top
shelf (fig. 4A) and one nailer onto the bottom shelf (fig. 4B). Make sure they
touch the side panel.
800-835-1759
slide-lok.com/assembly/S3624
Quick And Easy Assembly
All components will slide together without
force or effort if the dovetails are lined up
properly. If force or exertion is necessary,
pieces are not aligned correctly
A. Face Frame
B. Side Panels
C. Shelf Nailer
D. Top and Bottom Shelves.
E. Doors
[ fig 3B ]
[ fig 4A ]
slide-lok.com/assembly/S3624
, you may find it helpful to first assemble the
A
Male
Dovetail
.
Simply Slide A Into B
It's That Easy!
(2)
Corner brackets
(4)
1 1⁄2" Door screws
(4)
Clear bumpers
(4)
2 1⁄2" Black installation screws
(8)
1/2" Silver screws for adj. Legs,
corner brackets & shelf clips
(3)
1 1⁄4" Black screws for joining
cabinets together
(3)
Dowels
[ fig 2A ]
[ fig 3C ]
!
DO NOT SLIDE OTHER
SIDE PANEL ON AT
THIS TIME.
[ fig 4B ]
B
Female
Dovetail
[ fig 2B ]
[ fig 3D ]
[ fig 3E ]
