Note: Before installing the SG800 Signal Amplifier, please read the entire contents of this manual.
Parts List
Item
Qty
Description
1
1
SG800 Inteligain
2
1
1.5 Meter (59") RF Cable
3
1
2 Meter (78") DC Power Cable
4
1
Connector Adapter FME Female to
TNC Male
5
1
Connector Adapter FME Male to TNC
Male
Tools and Other Materials Required
Item
Description
1
Electric drill (as required for signal amplifier mounting holes)
2
Screw driver
3
Qty 4 screws (length and type as required for signal amplifier mounting)
4
Wire cutters / strippers
5
Qty 2 wire connection insulators or insulating material (as required for DC power cable connection to 12V DC system)
WARNINGS!
∇
Directly wired vehicle antennae, mounted a minimum distance of 50 cm (19.5") away from any person, are
recommended.
∇
Mounting a signal amplifier in the engine cavity or on the underside of the vehicle will void the manufacturer's
warranty.
∇
Subjecting the amplifier to voltages greater than 30 Volts DC will damage the amplifier and void the manufacturers
warranty.
∇
Any vehicle with an electrical system of greater than 30 Volts DC should use a step-down voltage regulator to bring
the voltage within the DC operating power range of the amplifier (10 to 30V dc).
∇
Under no circumstances should the amplifier be powered up without a properly connected 50 ohm 800 MHz
cellular antenna or the amplifier may be damaged and the manufacturer' warranty will be void.
∇
An antenna of not more than 5dBd gain shall be used with the amplifier or the manufacturer's warranty will be void.
∇
Use of cellular amplifiers with antennae of higher gains is in violation of FCC regulations for which the offender will
be fully liable.
It is recommended that only certified automotive installation technicians install this product in a
vehicle. Installation by any other person is at the risk of the vehicle owner and operator.
Installation
Selecting a Suitable Location To Mount The Signal Amplifier
Locate a suitable place to mount and conceal the signal amplifier. Suggested mounting locations include: under the dashboard,
under a seat, or in the trunk. For peak performance the signal amplifier should be mounted as close to the phone handset as
Copyright 2002, Seamless Group, Inc., All rights reserved.

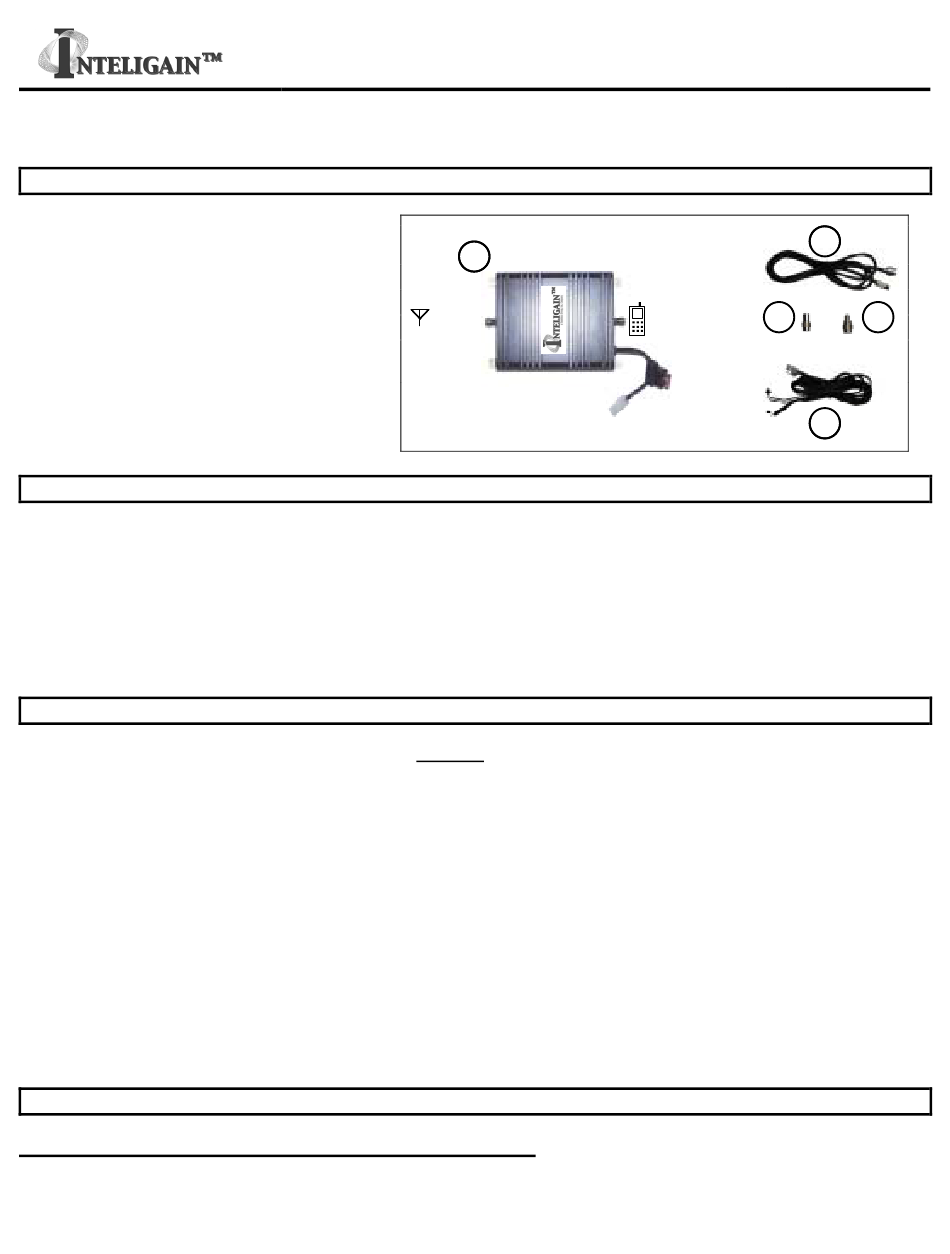

SG800 Signal Amplifier Installation Manual
TM
Signal Amplifier
1
1
ANTENNA
ANTENNA
2
2
5
5
PHONE
PHONE
3A
3A
Fuse
Fuse
3
3
Made in North America
Page 1 of 2
4
4
