Summary of Contents for Konex Audio K-multi6

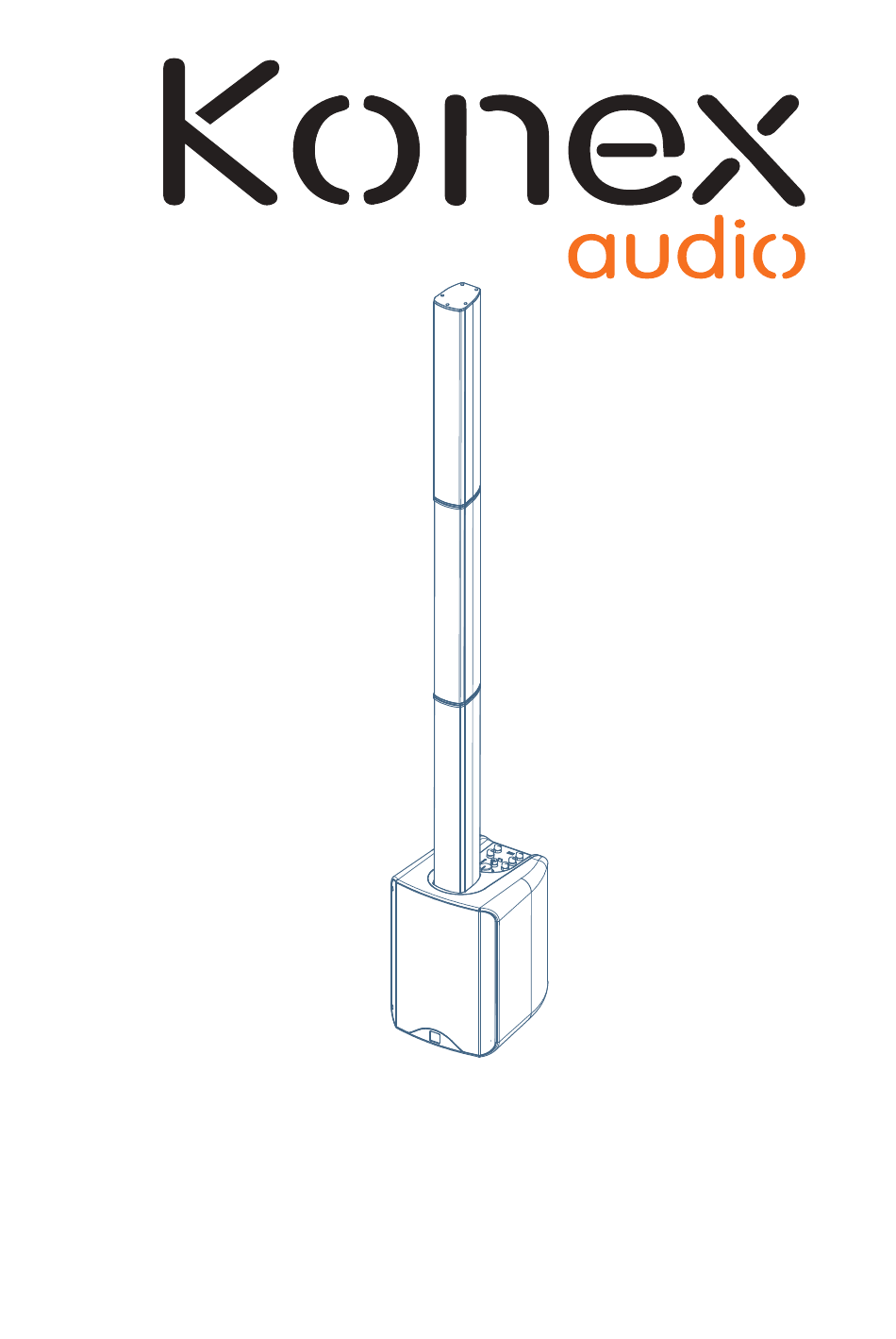

  • Page 1 K-multi6 User manual...

  • Page 2: Important Safety Instruction

    • WARNING – do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts. • WARNING – do not plug a guitar into the K-multi6. • WARNING – do not insert body parts or objects into the bass port for risk of injury.
  • Page 3 COMPLIANCE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Box Contents

    BOX CONTENTS 1. Power cord 5. User Manual 2. KONEX K-multi6 SUB 3. KONEX K-multi6 TOP SPEAKER 4. (2x) KONEX K-MULTI6 SPACER TECHNICAL INFORMATION Active vertical tube array - Type : 2-way configuration with active filter - Amplifier: Class D, DSP processor built-in, STEREO Bluetooth, USB charging - Amplifier power output: 400W max.

  • Page 5: Amplifier Functions

    By turning the control clockwise you will be increasing the overall volume of the speaker. 16. Bluetooth Function. 17. Power Supply Input Connector: Use with power cord. 18. Power Supply Switch K-multi6 19. Remote Control Vertical Tube Powered Array Speaker...

  • Page 6: Installation

    INSTALLATION Speaker Array Only 1 Spacer 2 Spacers CONNECTIONS 1- Connect the OUTPUT from your signal source ( mixing console, microphone, preamp, line-level source) directly to the INPUT connector on the back of the speaker. It accepts balanced line level signals from mixers, preamplifiers, etc., and accepts direct connections from dynamic microphones through the MIC input.

  • Page 7: Bluetooth Pairing

    3- Click on «K-multi6» name on your pairing device to complete pairing. STEREO BLUETOOTH PAIRING 1- Press and release the PAIR button on one speaker only, this K-multi6 will be the LEFT channel of your sound system. 2- While pairing light is flashing, the «K-multi6» name will appear on your pairing device.
  • Page 8 www.konexaudio.com...
