Smart Standard SDH-0066-BIGWHEEK-BK Manual

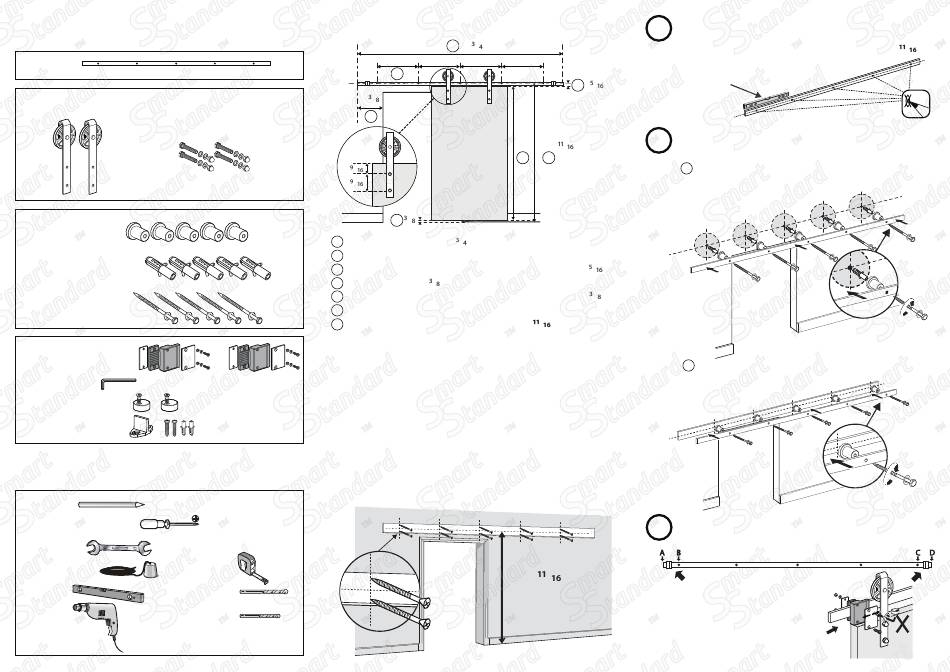

Product Content

1.1, 1 x Rail
2.1, 2 x Hanger 2.2, 4 x Long Door Bolt
3.1, 5 x Wall Spacer
3.2, 5 x Anchor
(For concrete wall)
3.3, 5 x Lag Bolt
(For wood stud)
4.1, 2 x Door Stopper
4.2, 1 x Hex Key
4.3, 2 x Rubber End
4.4, 1 x Floor Guide

Tools Needed

1, Pencil
2, Phillips Screwdriver
3, Wrench
7,
4, Plumb Bob
8,
5, Level
6, Drill 9,

Measurements

8 / "
D
1 / "
3 / "
A Overall Rail length is 78 / ".
B The gap between each pre-drilled hole is 16".
Distance from door top side to holes on the wall is 1 / ".
C
End of the rail is 8 / " away from the entrance of the door.
D
Distance from the bottom of the door to the floor is ⁄ ".
E
Door height is H.
F
The height of holes on the wall is H+1 / ".
G

Instructions

It is very important to determine whether you will be installing
a Header Board prior to installing the track.
Due to many overlapping factors such as the location of wall
studs (Our rail come with pre-drilled holes every 16" on center),
the weight of a barn door and the various types of trim used in
homes, we recommend using a Header Board in all situations.
Please install a 1" x 4" or 1" x 6" Header Board above the door
opening directly into studs.
Header Board must be solid wood and measure at least the full
length of the track or longer.
Tape
Drill Bit
Drill Bit
A 78 / "
16" 16" 16" 16"
B
H H+ 1 / "
F G
⁄ "
E
H+1 / "
* Header Board and Lag Bolts
for installing Header Board
are not included in kit.
1 Place the rail against the wall, and use a pencil to mark
where the holes should be.
Make sure the height of holes on the wall is H+1 / ".
Level can make the
rail horizontal.
1 / "
C
2 We provide 2 kinds of screws for you to install rail onto
concrete wall or drywall.
A

Concrete wall Installation.

Install the anchor to holes on the concrete wall first,
then install carriage bolt to anchor.
B

Drywall Installation.

Install the lag bolt to wood stud or head board directly.
Insert door stoppers into rail. Install door stoppers
3
between A-B and C-D. Door stopper is used to prevent
the hangers coming out of the rail.
A B
Do not screw it in
place at this stage
C D
