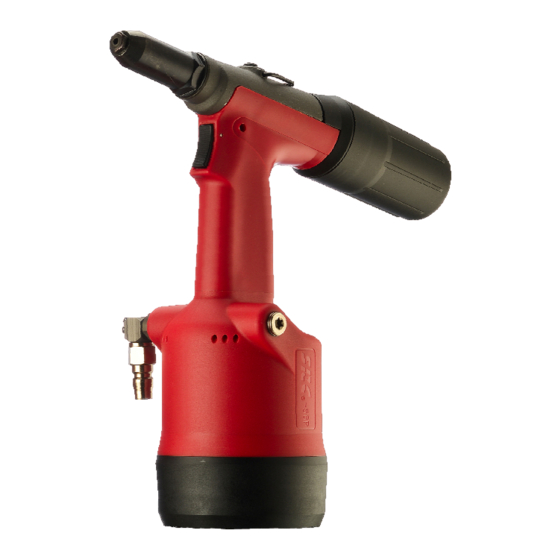

Summary of Contents for SRC SRC-56P
- Page 1 SRC-56P Instruction Manual Update: 2019.SEPT Page 1 of 6...
- Page 2 This instruction manual must be read with particular attention to the following safety direction, by any person installing, operating, or servicing this tool. Never dismantle the tool without first having thoroughly studied the instructions given in this User Manual and applying them. - Always use the tool in accordance with the specified safety instructions.
- Page 3 Characteristic - Powerful durable, high speed production tool - Longer stroke, could set up rivets with longer body in one time - Minimized noise - Machining part, imported seals, enhances tool life - Ergonomic - Light Weight, reduces operator fatigue Technical Parameter：...
- Page 4 Maintenance Cleaning Attention: Disconnect the air supply during all operations. Every 10,000 cycles the jaws, jaw housing and upper housing should be cleaned. 1. Disconnect the air supply. 2. Unscrew nosepiece, outer cylinder, then jaw housing. (Fig.1, Fig.2) Fig.1 Fig.2 3.
- Page 5 Maintenance Adding Oil Attention: Keep the tool upright during all operations. Connect the air supply, do not press the trigger. There might be insufficient oil if you are not able to set the rivet in one hit. Without proper lubrication the tool will not work properly and parts will wear prematurely. 1.
- Page 6 Update: 2019.SEPT Page 6 of 6...
