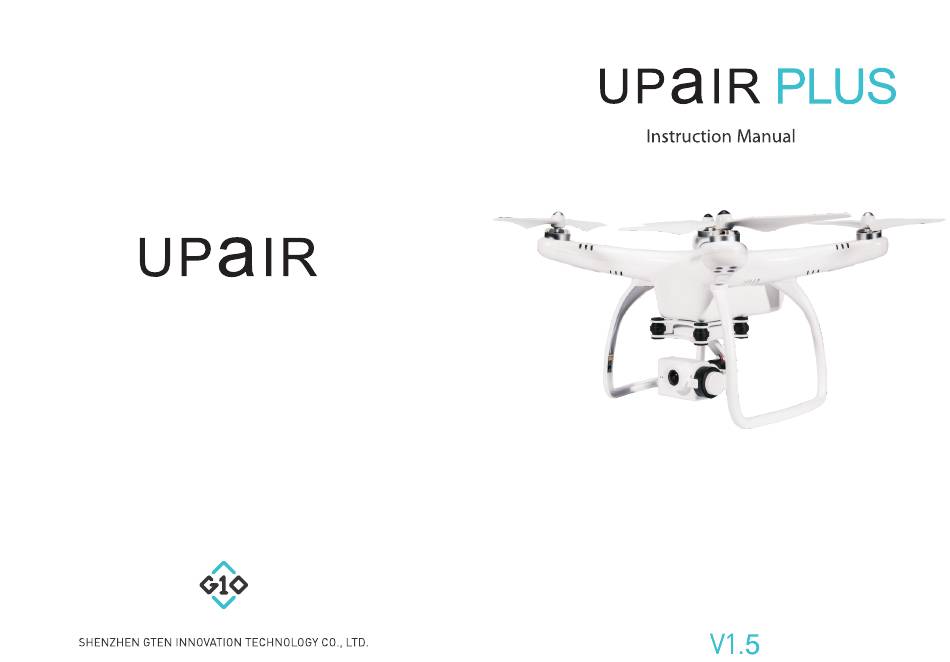

Summary of Contents for GTEN INNOVATIONS UPAIR PLUS V1.5

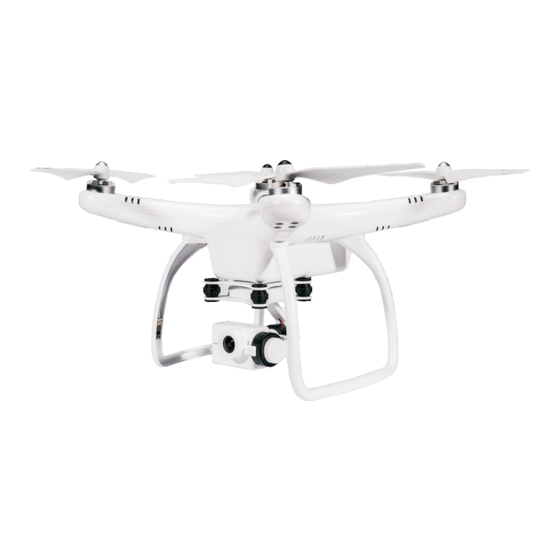

- Page 2 Upair One Plus includes a smart aircraft, a matching controller,an integral gimbal camera, and is compatible with the UPair one app for mobile phones. The digital images transmission component, designed for generating HD images, lies inside the fuselage. ： Intelligent Return to Home … …………………………………………………...
- Page 3 Upair one plus remote controller works in 2.4Ghz, it exports HD images to the mobile device,with a function key that controls both the camera and the gimbal. The controller is already pairedwith the built-in 2.4G receivers of the aircraft in the factory. Weight 826g Battery Voltage...
- Page 4 Toggle the left switch (Flight mode switch) down to turn on the Return to Home M ode.The user can still use the remote controller to alter the aircraft's orientation during the RTH process.Toggle the left switch upper to regain control of the aircraft. original Linking the Upair controller and the aircraft *Keep the Remote controller and Aircraft power off,remove 4 propellers for -...
- Page 5 Description The place where the aircraft takes off will be recorded as home Home point. In order to get that, GPS must up to at least 9 stars. Point Therefore, a good GPS signal is needed for recording the home point, otherwise the RTH mode will fail to work.
- Page 6 Type Lithium Battery Charging Time 1~1.5 hour Capacity 5400mAH Charging Environment Temperature 0℃~40℃ Voltage 12.5V Discharging Environment Temperature -10℃~40℃ Propellers Silver Black b tton. Image Attaching place Attaching on motors without red hole. Attaching on motors with red hole must Legends Lock ：Spin the propellers in this direction to tight it Unlock ：Spin the propellers in this direction to loosen it...
- Page 7 2.7k or 2.7k at 30 FPS “ Function Parameters Function Parameters AngleControl Precision ±0.2° Working Voltage 11.1V 4K Video Rotational Range Pitching -10°~90° Pitching 15°/s Maximum Control Speed Shooting images 16M(4608*3456) Resolution 4K@25FPS resolution ratio 2.7K Video Shooting images 8M(3264*2448) Resolution 2.
- Page 8 : go back to home page The password:12341234 Enter "setting "in the app interface, it shows compass calibration,level calibration and otherparam eters inform ation.(it varies on the app version) lf you have questions,please contact us:www.upairdrone.com lf you have questions,please contact us:www.upairdrone.com...
-
Page 9: Camera Settings
ITEM Default Limits Task point expected Height 1-250meters Camera Settings 4k/30fps 4k/30fps,2.7K30fps Shooting Mode 16M(4608*3456) 1， Departure point 2， Landing point Click the location icon on the left bottom of app to start Flight Route Planning. 3， Hover Task Hover 4，... - Page 10 Calibrate the compass before each flight. The steps to calibrate the compass are as follows: 1.Remove the propellers before you start the compass calibration and power on both the aircraft and the RC. 2.Open UPAir app—Setting—General—Compass calibrate—Confirm 3.Hold the aircraft horizontally and ready to change its direction according to the pictures shown in the app.
- Page 11 Flight test: 1.Place the aircraft in an open,flat area with the battery level indicators facing towards you. 2.Turn on the remote controller and your mobile device ,then turn onthe Intelligent Flight Battery. 3.Launch the “UPair” app ,connect the mobile device and the aircraft ,enter the “camera”interface.
-
Page 12: Manual Take Off
7.Manual Take off Display on APP Place your mobile device into the clamp Unfold and adjust it so that the mobile device is held securely in place [2]D:Home distance“0” [1]H:Altitude “0” [4]H.S:Horizontal velocity "0"m/s [3]GPS signal should be over 9 satellites [5]V.S:Vertical velocity "0"m/s [6]V.C: Controller voltage "12.6V"... - Page 13 etc. Always fly under etc. basic flight guidelines,for the etc. Click to bring the aircraft back to the home www.upairdrone.com lf you have questions,please contact us:www.upairdrone.com lf you have questions,please contact us:www.upairdrone.com...
