Summary of Contents for Itijik Router
- Page 1 itijik.com...

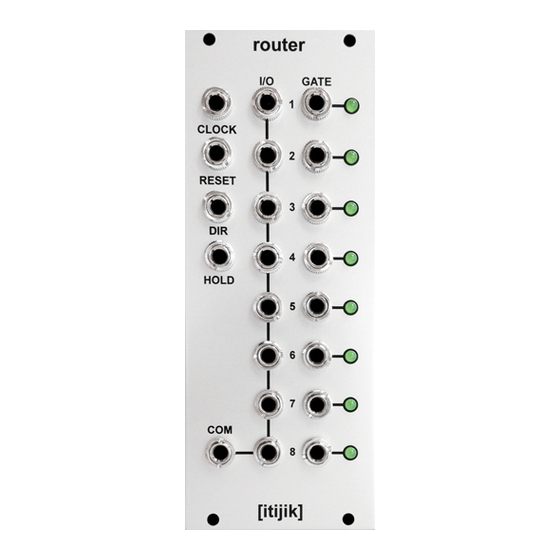

- Page 2 Overview The router is an 8-step sequential switch for euro format systems. It features 8 bipolar input/outputs and one common bipolar input/output. The clock, reset, direction and hold inputs are used to drive the movement and direction of the sequence. There is also a gate output section for triggering the router’s functions as well as any other gate duties in your system.
- Page 3 Connect the COM output of the router to your CV destination. Connect the outputs of your sequenc- ers to the I/Os of the router. If you have open I/Os, try throwing an LFO or other CV source to mix up the fixed sequence voltages.
