Summary of Contents for Discover Headsets DHS12

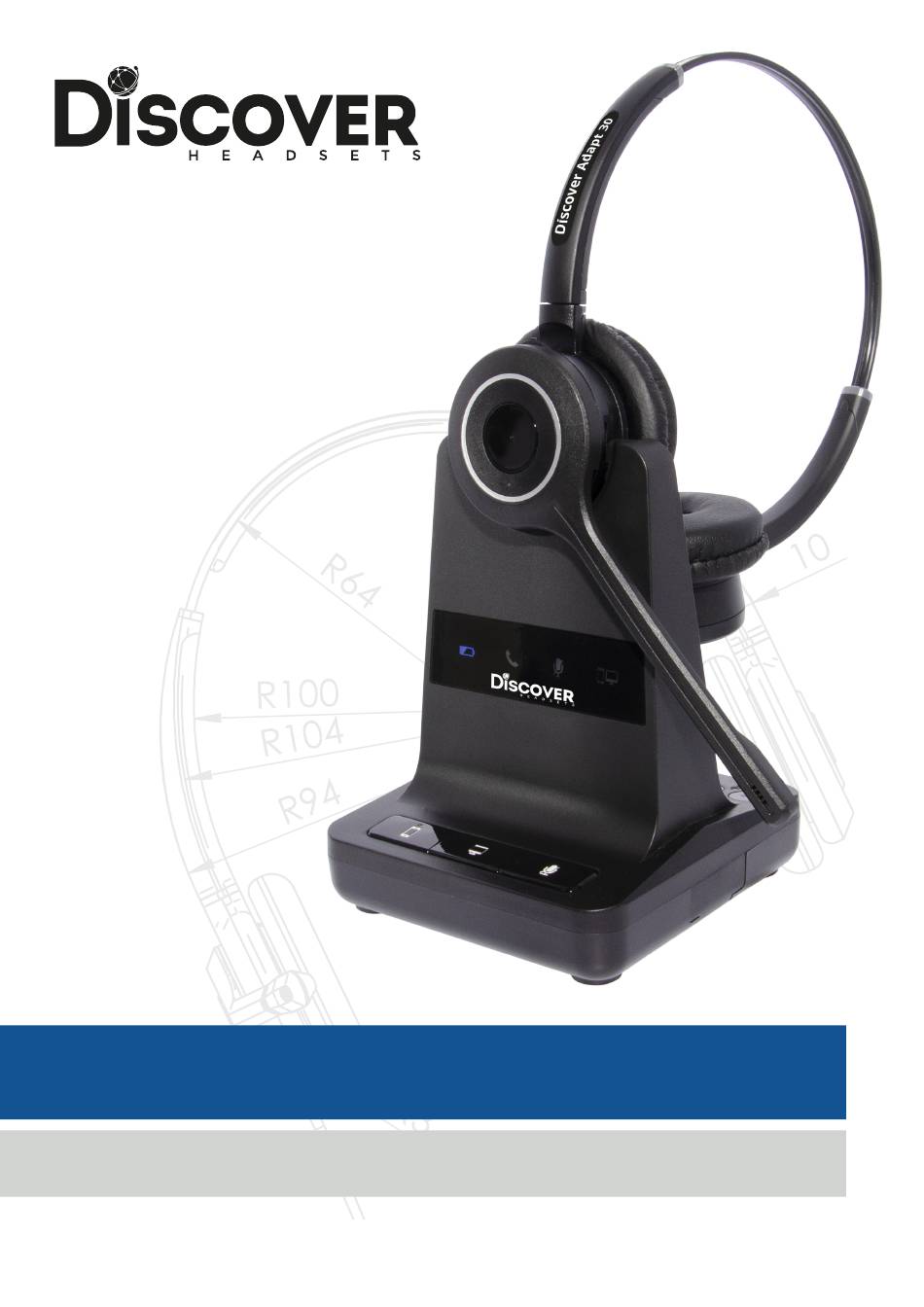

- Page 1 EHS Guide For Wireless Headset Remote Operation...
- Page 2 Wireless Headset EHS User Guide Introduction Electronic Hook Switch(EHS) provides a solution that enables remote operation of answer/end functions for wireless headsets with various phones, thus eliminating the need for a mechanical handset lifter. Mobility With an EHS solution you can roam within your premises and still do business on the spot.
- Page 3 Wireless Headset EHS Compatibility Table Phone Model EHS Adapter DHS Part No AASTRA / MITEL DHS12 5360, 5370, 5370IP, 5380, 5380IP 6771, 6773IP, 6775IP, DS-DHSG Cable *6735i, *6737i, 6739i, *6753i, *6755i, *6757i, 6757iCT, 6771IP, 6773IP, 6775IP, 6865i, 6867i, 6869i, 7434IP, 7444IP...
- Page 4 Adapter Kit DHS17 IP480, IP480G, IP485G, IP530, IP560, IP560G, IP565G, IP655 SIEMENS/UNIFY OpenStage 30/40/60/80, Openscape IP 35G/55G DS-DHSG Cable DHS12 OptiPoint Basic/Std/Adv/Eco 410/420/500/600 SNOM DS-Gender DHS15 *300, *320, *360, *370, *720, D725, *760, *820, *821, *870 *Needs SNOM EHS Adapter...
- Page 5 Aastra/Mitel EHS setup guide Aastra/Mitel Phones 6771/6773ip/6775ip 7434ip/7444ip 5370,5370ip 5380/5380ip EHDHS12 ① Connection Diagram ② ③ ④ ⑤ ⑥ //// ⑦ ① ⑧ ⑨ ⑩ ⑪ ⑫ ① DS-DHSG cable(EHS-3) : RJ-45(8P8C) to RJ-45(8P8C) and RJ-9(4P4C)
-
Page 6: Connection Diagram
Green End ③ ① Note : Aastra DHSG cable kit is available from your Aastra reseller ① DS-DHSG cable(DHS12) : RJ-45(8P8C) to RJ-45(8P8C) and RJ-9(4P4C) ② Aastra DHSG cable ③ RJ-45 Coupler Note : 1. Audio mode needs to be set to “Headset/Speaker” mode manually. - Page 7 Alcatel EHS Setup guide Alcatel Phones 4028EE 4038EE 4068EE DHS16 Connection Diagram ② //// ③ ① ① MSH cable(DHS16) : RJ-12(6P6C) and 3.5Ø plug to RJ-45(8P8C) and RJ-9(4P4C) ② EHS Port ③ Audio Port...
- Page 8 Avaya EHS Setup guide Avaya Phones 1408 1416 1608 1616 2410 5410 6224D+M 6416D+M 9404 9408 9504 DHS13 9508 9608 9610 9611 9620 9621 9630 9640 9641 9650 9570 1408,1416,2410,4630 5410, 6410D+M,6424D+M, Connection Diagram 9404 9406,9504,9508 //// ③ ① ② ④...
- Page 9 Cisco EHS Setup guide Cisco Phones 6945 7942G 7945G 7962G 7965G 7975G 7821/7841/7861 8811/8841/8845 DHS11 8851/8861/8865 Connection Diagram //// ① ② ① : EHS Adapter ( DHS11) RJ-45 to RJ-12 ② : T T elephone cord (RJ-9 to RJ-9) Cable length : 600mm Note : Make sure that Electronic Hook switch should be enabled in Cisco Unified Communications Manager Administration.
- Page 10 Cisco Phones 8961 9951 9971 1408,1416,2410,4630 DHS20 Connection Diagram ③ ② ① : HHC EHS Adapter ( DHS20) RJ-45(8P8c) and RJ-9(4P4C) to USB A-type Plug ① ② : USB Port(A-type Female)
- Page 11 Ericsson-LG EHS Setup guide Ericsson-LG Phones LIP-9010 LIP-9020 LIP-9030 LIP-9040 DHS19 Need Ericsson-LG EHSA Kit Connection Diagram ④ //// ② ① ③ ① LG EHS Adapter (DHS19) : RJ-45(8P8C) to RJ-45(8P8C) ② Headset Port ③ EHS Adapter : supplied from Ericsson-LG reseller ④...
- Page 12 Panasonic EHS setup guide Panasonic Phones NT553 NT556 DT543 DT546 HDV230 NT543 HDV330 HDV430 DHS10 Connection Diagram ③ //// ① ④ ① Panasonic EHS Adapter (DHS10) : RJ-45(8P8c) to 3.5Ø Plug (3 poles) ② Headset Port ③ EHS Port ④ Audio cables : RJ-9(4P4C) to 3.5Ø Plug (3 poles)
- Page 13 Polycom EHS Setup guide Polycom Phones IP 320 IP 321 IP 330 IP 331 IP 335 IP 435 IP 450 IP 550 IP 560 IP 650 DHS14 IP 670 VVX 300 VVX 310 VVX 400 VVX 410 VVX 500 VVX 600 VVX 1500 1408,1416,2410,4630 5410,...
- Page 14 Connection Diagram ③ ① ② ① Polycom EHS Adapter (DHS14) : RJ-45(8P8c) to 5-Pin Plug ② Audio cables : RJ-9(4P4C) to RJ-9(4P4C) ③ EHS Port Note 1: Phone must be running SIP application 3.1 or higher and BootROM 4.1.0 or later. Note 2: Phone must be running SIP application 3.0.2 or higher and BootROM 4.1.0 or later.
- Page 15 ShoreTel EHS Setup guide ShoreTel Phones IP 565g IP 560g IP 560 IP 265 IP 230 IP 230g DHS17 Connection Diagram ③ //// ① ② ① Power cable (RJ-45 to RJ-12) ② Telephone cord (RJ-9 to RJ-9) : Cable length : 600mm ③...
- Page 16 Siemens/Unify EHS Setup guide Siemens Phones OpenStage 40/60/80 OptiPoint Base/Adv/Eco DHS12 Connection Diagram (For OpenStage series) //// ① ① DS-DHSG EHAS adpter (DHS12) : RJ-45(8P8C) and RJ-9(4P4C) to RJ-45(8P8C)
- Page 17 Connection Diagram (For OpenScape and Optipoint series) //// ① ① DS-DHSG EHAS adapter (DHS12) : RJ-45(8P8C) and RJ-9(4P4C) to RJ-45(8P8C)
- Page 18 SNOM EHS Setup guide SNOM Phones SNOM 300/320/360/370 SNOM 720/760 SNOM 820/821/870 DHS15 SNOM EHS Adaptor Connection Diagram ① ③ ② ⑤ ④ //// ① Cord (RJ-12 to RJ-12) supplied by manufacturer of EHS Adapter – snom 3xx/snom 820 Cord (RJ-45 to RJ-12) supplied by manufacturer of EHS Adapter – snom 821/snom 870 ②...
- Page 19 Toshiba EHS Setup guide Toshiba Phones IP5022-SD IP5122-SD IP5122-SDC IP5131-SDL IP5132-SD DP5022-SD DP5022-SDM DHS17 DP5032-SD DP5122-SD DP5130-FSDL DP5130-SDL DP5132-SD Connection Diagram //// ① ② ③ ① Power cable (RJ-45 to RJ-12) ② Telephone cord (RJ-9 to RJ-9) : Cable length : 600mm ③...
- Page 20 Yealink EHS Setup guide Yealink Phones T48S/T46S/T46G T42S/T42G/T41S DHS15 T41P/T40G/T40P T29G/T27G/T27P Yealink EHS Adaptor Connection Diagram ② ③ ① ④ ⑤ //// ① Cord (RJ-12 to RJ-12) supplied by manufacturer of EHS Adapter ② EHS Adapter supplied by Yealink ③ Cord (RJ-45 to RJ-45) supplied by manufacturer of EHS Adapter ④...
