ICStation XY-MUP Manual

1.Description:

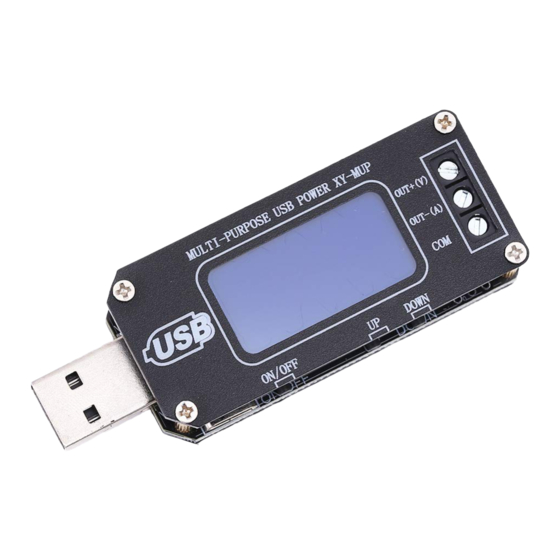

XY-MUP is an instrument with integrated buck-boost power supply module and
multi-function voltage ammeter and temperature display module.
In 'PER' work mode,it can be used as buck-boost power supply module.It can
convert to DC 3.5V~12V to DC 1.0V~24V and power is about 2W~3W.
In 'VAH' work mode,it can be used as multi-function voltage ammeter.It can be
used to measure voltage,current,power,battery capacity,discharging time.
It also can display real time temperature in both work modes.
It is very suitable for technical engineers to develop, debug instrumentation,
after-sales engineers travel maintenance, etc.
2.Features:
1>.Dual operating system
2>.Support power supply output function
3>.Support test power function
4>.Support real time temperature display
5>.Support over power protection
6>.Support under-voltage protection
7>.Support over-current protection
8>.LCD high definition display
9>.Automatic calibration
10>.Multi-parameter simultaneous display
11>.Support power saving mode
12>.Three voltage input methods
13>.Support voltage and current calibration
14>.Comfortable outer shell
3.Parameters:
1>.Product name: XY-MUP Boost Buck Converter Voltmeter Ammeter with Shell;
2>.Model: XY-MUP;
3>.Work Voltage:DC 3.5V-12V;
4>.Output Voltage:DC 1.0V-24V;
5>.Output Power:3W(MAX);
Maximum output power within 2W when output DC 1.2V~2V;
Maximum output power within 3W when output DC 2V~20V;
Maximum output power within 2.5W when output DC 20V~24V;
6>.Output voltage accuracy:+/-0.5%
7>.Output voltage accuracy:+/-1%
8>.Measure voltage range:DC 0~35V
9>.Measure current range:0~3A
10>.Measure power range:0~110W
11>.Measure battery capacity range:0~9999Ah
12>.Discharging time:0~100hours
