Instructions
Tiger Control
Http:// www.tiger-control.com
Controllable temperature range: 10℃~30℃
Current loading: <3A
Accuracy: ±1℃
Power supply: 220VAC±10%
The power consumption: <1.5W
Hole spacing: 60mm
Cover: ABS
Online line diameter: 0.5~2.5mm2
Dimension: 130×85×43mm

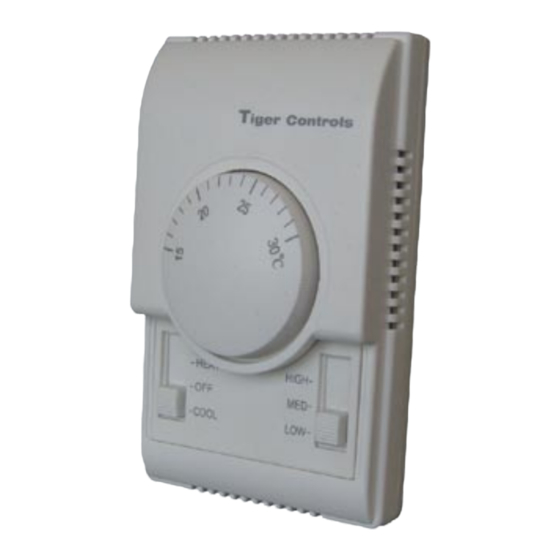

There are temperature adjustment knob and scale indication on the front panel.
HIGH-MED-LOW speed transfer switch and HEAT-OFF-COOL switch. Operation
steps are as follows:
(1) ON/OFF: when heating is on, take HEAT-OFF-COOL switch to HEAT; when
cooling is on, turn switch to COOL.Take switch to OFF when it is shut.
(2) Temperature setting: adjust the pointer on the knob to temperature valve you
want.
(3) Speed selection: select high, middle and low wind speed by HIGH-MED-LOW
switch.
Email: sales@tiger-control.com
Knob Fan Coil Controller
—TROOM-7
50/60Hz
Version No.
TROOM-01
1
Advertisement
Table of Contents
Summary of Contents for Tiger Controls TROOM-7
- Page 1 Version No. TROOM-01 Knob Fan Coil Controller —TROOM-7 Controllable temperature range: 10℃~30℃ Current loading: <3A Accuracy: ±1℃ Power supply: 220VAC±10% 50/60Hz The power consumption: <1.5W Hole spacing: 60mm Cover: ABS Online line diameter: 0.5~2.5mm2 Dimension: 130×85×43mm Instructions There are temperature adjustment knob and scale indication on the front panel.
-
Page 2: Installation
Installation (2) take off middle cover (1) take off front cover (4) wiring (3) install baseplate Wiring diagram Tiger Control Http:// www.tiger-control.com Email: sales@tiger-control.com... -
Page 3: Control Panel
LCD Fan coil Controller —TROOM-9 Temperature range: 5℃~35℃ Loading current: <3A Accuracy: ±1℃ Power supply: 220VAC±10% 50/60Hz Power consumption: <2W Installation pitch-row: 60mm Case: ABS Connection terminal: screw retention,1mm2single core copper wire Dimension: 86×86×15mm Feature TROOM-9 adopts electronic logic circuit to set temperature in the room and compare stated temperature with actual temperature.Then control the valve or fan coil according to the result of comparison, thus to keep constant temperature in the room. -
Page 4: Function Of Keys
Function of keys 1) ON/OFF key: control the power ②: 2) mode key cooling or heating circulation ③: 3) speed key low,middle,high,auto speed ④: 4) menu key when controller is on,press this key shortly to set sleep mode;when ⑤: controller is off,press this key for more than 4 seconds can go to setting of temperature correction coefficient upper limit temperature setting, lower limit temperature setting and fan coil running... -
Page 5: Operation Process
Operation process 1) Sleep mode: when controller is on，press ⑤ key shortly, go into "sleep mode", sleep icon display, press ⑤ key shortly, quit sleep mode (sleep icon disappear) 2) Introduction of sleep mode operation: cooling mode: timing after enter sleep mode,when the value≥1h,setting temperature will increase 1ºC automatically,when the value≥2h,setting temperature will increase 1ºC again.timing value=8h,go back to the setting temperature before sleep mode.(decrease 2ºC) and exit sleep mode. - Page 6 LCD Fan Coil Controller —TROOM-10 Temperature range: 5℃~35℃ Current loading: <2A Accuracy: ±0.5℃ Power supply: 220VAC±10% 50/60Hz Heating and cooling valev Max.reactive current: 0.5A Hole spacing: 60mm Case: ABS Dimension: 115×90×16mm Feature TROOM-10 controller take the way of Electronic logic circuit to compare stated temperature and real temperature in the room, then control water valve and fan coil to keep constant temperature in the room.
-
Page 7: Display Instruction
Function of keys 1. Temperature setting: press ▲ when controller is on, setting temperature +0.5℃. Press▼, setting temperature -0.5℃ 2. Operating mode setting: alternate between cooling mode and heating mode. 3. Speed setting: select high, middle, low and auto wind speed. 4. - Page 8 Operation proces 1) Sleep mode operating way: Cooling mode: timing after enter sleep mode,when the value≥1h,setting temperature will increase 1ºC automatically,when the value≥2h,setting temperature will increase 1ºC again.timing value=8h,go back to the setting temperature before sleep mode.(decrease 2ºC) and exit sleep mode. Heating mode: timing after enter sleep mode,when the value≥1h,setting temperature will decrease 1ºC automatically,when the value≥4h,setting temperature will decrease 1ºC again.Timing value=8h,go back to the setting temperature before sleep mode.(increase...
-
Page 9: Reset Function
Reset function If it is disturbed, display and working are unnormal, prick (5) reset key with cuspidal and hard object, when there is a sound of the key, release it. Procedure will restart. Installation drawing Icons ：Fan ： 2 wire electric valve Valve High Open...
