Page 1 VK7 User’s Manual...
Page 2 The information contained in this document is proprietary to Estone Technology. Any reproduction in part or whole without prior written authorization by Estone Technology is prohibited. Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
Page 3 Fax: (888) 714-0191 Estone – West Coast 21015 Commerce Pointe Drive Walnut, CA 91789 Tel: (909) 594-7600 Fax:(888) 313-8698...
Page 5: Table Of Contents
6.1.1 General Use - Operating temperature ..........20 6.1.2 Transportation and Storage .............. 20 Cleaning of the VK7 Device ................20 Transporting the VK7 Device ................20 Disposing of the VK7 Device ................. 20 Appendix B Compliance Information ............22...
Page 6: Introduction
Warning is ignored. The High-Volume symbol is used to inform of something that can cause damage to hearing. Symbols and Markings This section provides information about the symbols that are used on the VK7, its accessories, or packaging. Symbol or Markings Description Power On Dispose of in accordance with your country's requirements.
Page 7 United States which certifies that the electromagnetic interference from the de- vice is under limits approved by the Federal Communications Commission. The product meet UL’s requirements for Canada and the United States. Estone VK7 User’s manual v.1.0.1 - en-US...
Page 8: Intended Use
It is recommended to keep the original packaging materials for the VK7. If device needs to be returned to Estone Technology for Warranty related issues or repair, it is beneficial that the original packaging or equal equivalent is used for shipping. Most shipping carriers require at least 2 inches of packing material around the device.
Page 10: Safety
Safety The VK7 device has been tested and approved as compliant to all the Specifications and Standards listed in Appendix B Compliance Information, page 22 of this manual and in the Appendix C Technical Specifications, page 25 . Nevertheless, in or- der to ensure safe operation of your VK7 device, there are a few safety warnings to bear in mind: No modification of this equipment is allowed.
Page 11 Be aware that it is possible, in a worst-case scenario, for temperatures to reach greater than those stated above in, for example, the trunk of a car on a hot day. So, storing the VK7 device, in a hot car trunk could conceivably lead to a malfunction.
Page 12: Electricity
Electricity Do not open the casing of the VK7 device, since you may be exposed to potentially hazardous electrical voltage. The device contains no user serviceable parts. Software Using an antivirus program is strongly recommended. Software other than that which is pre-installed on the VK7 is installed at the user's own risk. External software could cause the VK7 to malfunction and might not be covered by the warranty.
Page 14: Overview Of The Vk7

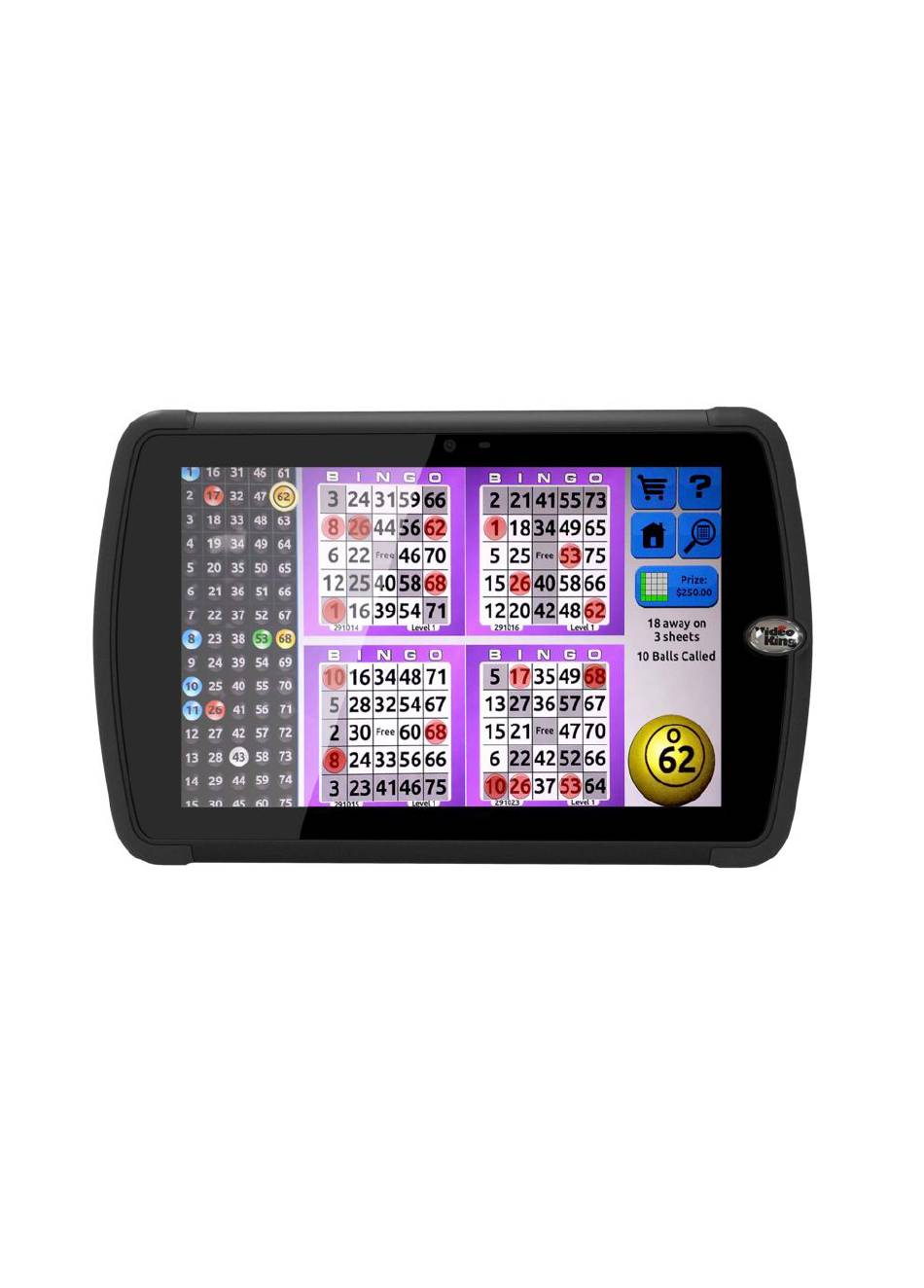

● 1 × WLAN (Wireless Local Area Network) ● 1 ×Kickstand Product Layout A VK7 device has a multi Capacitive touch, LED Backlight screen. The VK7 has a 10″ screen with a 1920 × 1080-pixel resolution. 3.2.1 Ports, Sensors and Device Buttons Figure3.2.1 VK7 Tablet...
Page 15 Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Be extra careful with the USB connectors. 3 Overview of the VK7 #12006596 Estone Technology VK7 User’s manual v.1.0.3 - en-...
Page 16: Batteries In The Vk7
Batteries in the VK7 Batteries The VK7 device has o ne built-in battery. If the VK7 device is not charged or powered up by the power supply, the VK7 device will shut down automatically. Charging the Tablet Connect the Power cable to the charging port on the device.
Page 17: Using The Vk7
Using the Cameras The two built-in cameras allow you to take snapshots of items facing the backside of the VK7 device and from the display side. #12006596 Estone Technology VK7 User’s manual v.1.0.3 - en-...
Page 18: Adjusting The Volume
Adjusting the Volume To adjust the volume, use the Volume Up and Down buttons on top side of the VK7 device. Adjusting the Sound You can configure the speakers using the Setting> Sound 5 Using the VK7 #12006596 Estone Technology VK7 7 User’s manual v.1.0.3 -...
Page 20: Product Care
Cleaning of the VK7 Device Before cleaning the VK7 device, shut it down and unplug all cables. The VK7 may be cleaned using a hospital grade cleaning product for infection control. The cleaning should be done using a wipe style product only. Wipe only outer surfaces of the VK7 device and allow the product to dry naturally or follow the wipe instructions.
Page 21 For support, please contact your local representative or Support at Estone Technology. In order to receive assistance as quickly as possible, make sure you have access to your VK7 device and, if possible, an Internet connection. You should also be able to supply the serial number of the device, which you will find on the Service tag label.
Page 22: Appendix B Compliance Information
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by Estone Technology could void the user’s authority to operate the equipment under FCC rules.
Page 23 The devices for the band 5150-5350 MHz are only for indoor use. Les appareils de la bande 5150-5350 mhz ne sont conçus que pour une utilisation en intérieur. Estone Technology VK7 User’s manual v.1.0.3 - en-US...
Page 24 Battery Run Time > 16 hours. normal usage Battery Technology Li-ion Polymer rechargeable battery Battery Capacity 47.36 Wh Battery Charge Time < 5 hours Power Supply 12V DC 2A Appendix C Technical Specifications Estone Technology VK7 User’s manual v.1.0.3 - en-...
Page 25 Estone Technology reseller. Copyright ©Estone Tech(publ). Illustrations and specifications do not necessarily apply to products and services offered in each local market. Technical specifications are subject to change without prior notice. All other trademarks are the property of their respective owners.
