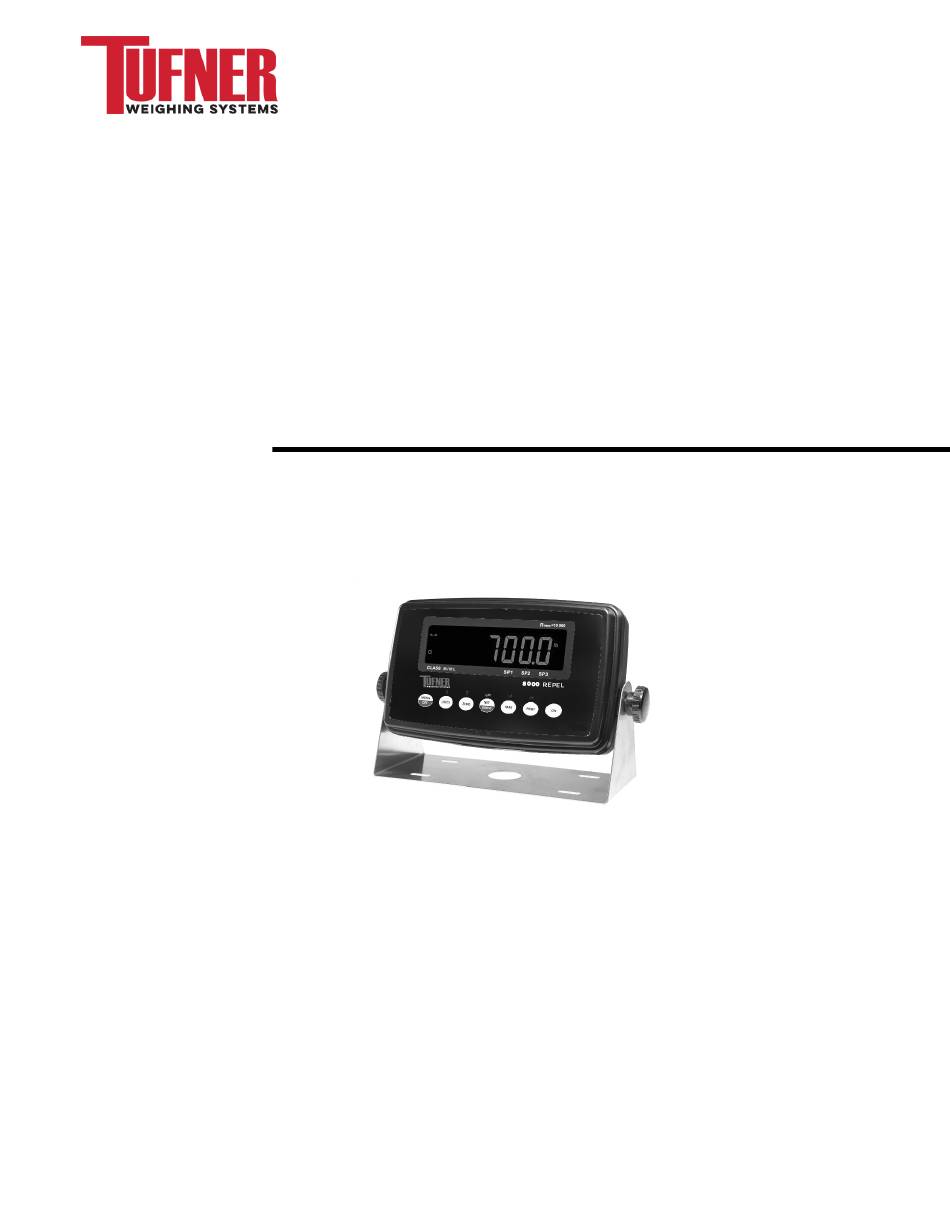

- Page 1 TUFNER WEIGHING SYSTEMS 9030 Bridgeport Place, Rancho Cucamonga, CA 91730 Main: 800-810-2965 Fax: 888-502-8997 8000 REPEL Digital Weight Indicator User Manual V1.6...
-
Page 2: Table Of Contents
8000 REPEL Digital Weight Indicator User Manual Table of Contents 1. OVERVIEW ........................3 1.1 Scope of 8000 REPEL ....................3 2. BASIC OPERATION ......................4 2.1 Getting started – Cabled systems ................4 2.2 Getting started – Wireless systems ................. 4 2.3 Operation –... -
Page 3: Overview
8000 REPEL Digital Weight Indicator User Manual THIS EQUIPMENT CONTAINS NO USER SERVICEABLE COMPONENTS. Servicing of the equipment must only be carried out by trained and authorized person- nel. Use only the AC adapter supplied with the scale. Other adapters may cause damage. -
Page 4: Basic Operation
8000 REPEL Digital Weight Indicator User Manual 2 BASIC OPERATION 2.1 Getting Started – Cabled Systems 1. Press and hold the ON key on the digital indicator unit for two seconds. After a brief initialization period, the scale will revert to a zero (“0”) weight dis- play. -
Page 5: Replacing The Batteries - Ti-500 Rftm
NOTE 1: TI-500 RFTM will shut down completely within two hours of a lost connection with the indicator. NOTE: 2: TI-500 RFTM will only enter sleep mode when the 8000 REPEL indicator is OFF. When shipped from the factory, the 8000 REPEL digital indicator is configured to automati-cally switch off after 5 minutes if not in use. - Page 6 8000 REPEL Digital Weight Indicator User Manual WHEN TO CHARGE THE INTERNAL BATTERY The best time to charge the Lithium Ion battery is any time the indicator is not in use. You need not wait for the Low Battery Indication – in fact it’s best that you don’t.
-
Page 7: Display & Keypad Details

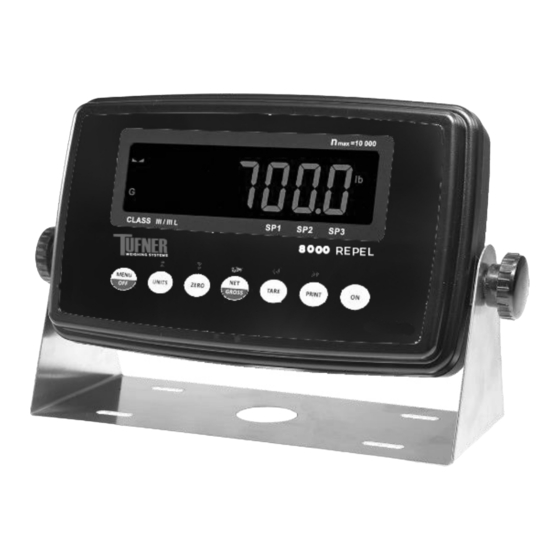

8000 REPEL Digital Weight Indicator User Manual 3 DISPLAY & KEYPAD DETAILS This model utilizes a 7-digit LCD (Liquid Crystal Display) with adjustable LED backlight. The Table below summarizes the display annunciators: Symbol Display ➔0 Indicates that the scale is on Zero. - Page 8 8000 REPEL Digital Weight Indicator User Manual The capacitive touch keypad is composed of a total of seven (7) function keys. Keypad Functions Menu/Off This key provides access to the various configuration menus (please see the installer guide for more information) Press and hold for 2-3 seconds to shut the unit OFF.
-
Page 9: Advanced Operation
8000 REPEL Digital Weight Indicator User Manual 4 ADVANCED OPERATION 4.1 Hold operation This mode of operation is enabled by setting F30 to “5” in the Setup Menu (see sepa- rate installer’s guide for more information). This mode captures the weight of an un- stable load, e.g. -
Page 10: Piece Counting
8000 REPEL Digital Weight Indicator User Manual Place the object to be weighed on the scale’s platter and allow the weight in- dication to stabilize. The reading shown is the net value of the applied load If necessary, toggle between the gross weight and the net weight by pressing... -
Page 11: Peak Hold Mode
8000 REPEL Digital Weight Indicator User Manual the sample size. Repeat Step #4 with the new sample size. NOTE: If the indicator continues to display “Lo” even after sampling 100 pieces, the unit weight of the items you wish to count is too light for your scale to process ac- curately. -
Page 12: Printer
8000 REPEL Digital Weight Indicator User Manual 4. If a printer is installed, a printout will be made. The gross, net and tare weights are totaled. 5. No weight can be recorded twice. The system needs to be returned to the net zero-range before another weight can be added. - Page 13 8000 REPEL Digital Weight Indicator User Manual 1. Press and hold the MENU/OFF key to switch off the digital indicator. 2. Press and hold the ON key until the digital indicator beeps and starts to boot up. 3. During the countdown phase (“555555, 444444”, etc.) press and hold the MENU/OFF key until the “Set?”...
-
Page 14: Checkweigher
8000 REPEL Digital Weight Indicator User Manual digit by pressing the ZERO key. Pressing the TARE key or the PRINT key will change the position of the flashing digit. 16. After entering the exact value, press the NET/GROSS key to save the value. The screen displays “yE_xx”... - Page 15 8000 REPEL Digital Weight Indicator User Manual 3. After entering the exact value, press the NET/GROSS key to save the value. The screen displays “SET” and then “Hi” briefly, followed by the current high weight value with one digit blinking. The pointer for SP3 is lit.
-
Page 16: Error Messages
Both TI-500 RFTM #1 and #2 batteries have been depleted and need to be replaced. WIRE- LESS SYSTEMS ONLY Battery in 8000 REPEL indicator need to be re- charged or replaced. Battery in digital indicator need to be re- charged or replaced and TI-500 RFTM #1 bat-... -
Page 17: Specifications
8000 REPEL Digital Weight Indicator User Manual Battery in digital indicator need to be re- charged or replaced and TI-500 RFTM #2 bat- teries need to be replaced. Battery in digital indicator need to be re- charged or replaced and both TI-500 RFTM batteries need to be replaced. -
Page 18: Troubleshooting
Tufner Tech Support: (800)810-2965 ext 2 Limited 12-month Warranty This product is warranted by Tufner Weighing Systems against manufacturing defects in material and workman-ship under normal use for twelve (12) months from the date of purchase. For complete warranty details and service information, please contact us at the address below.
