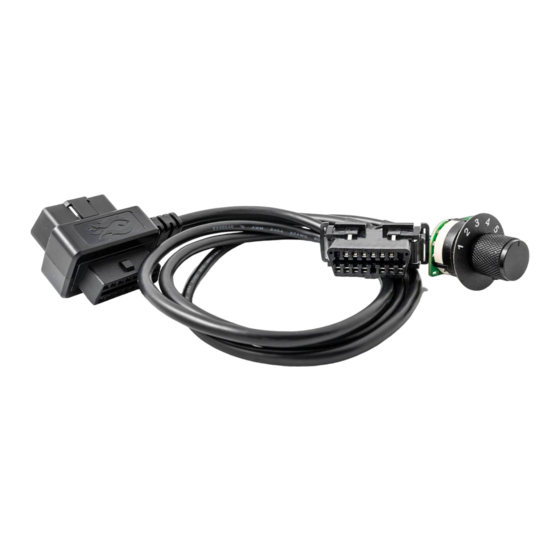

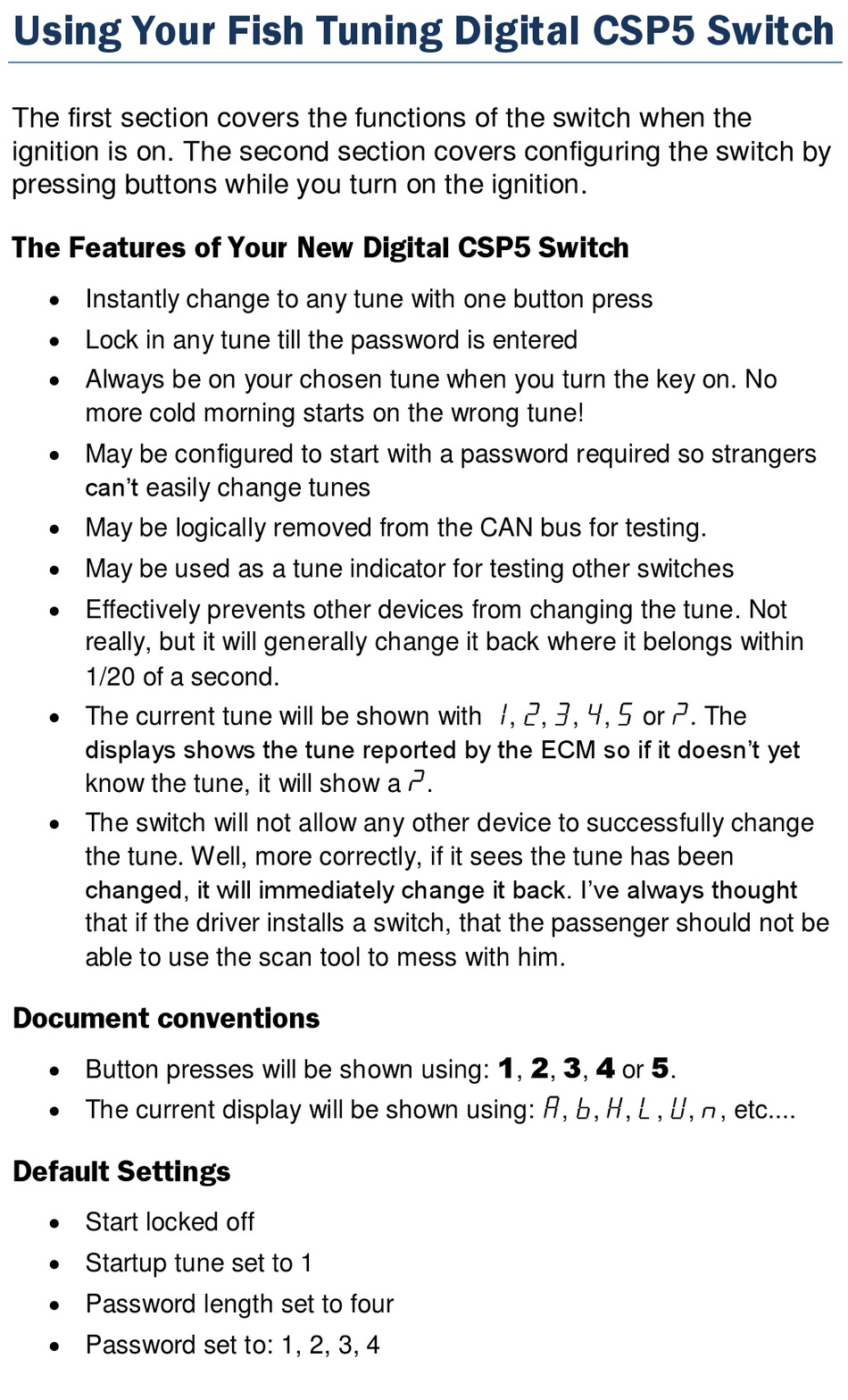

Using Your Fish Tuning Digital CSP5 Switch
The first section covers the functions of the switch when the
ignition is on. The second section covers configuring the switch by
pressing buttons while you turn on the ignition.
The Features of Your New Digital CSP5 Switch
Instantly change to any tune with one button press
Lock in any tune till the password is entered
Always be on your chosen tune when you turn the key on. No
more cold morning starts on the wrong tune!
May be configured to start with a password required so strangers
can't easily change tunes
May be logically removed from the CAN bus for testing.
May be used as a tune indicator for testing other switches
Effectively prevents other devices from changing the tune. Not
really, but it will generally change it back where it belongs within
1/20 of a second.
The current tune will be shown with
displays shows the tune reported by the ECM so if it doesn't yet
know the tune, it will show a .
The switch will not allow any other device to successfully change
the tune. Well, more correctly, if it sees the tune has been
changed, it will immediately change it back. I've always thought
that if the driver installs a switch, that the passenger should not be
able to use the scan tool to mess with him.
Document conventions
Button presses will be shown using:
The current display will be shown using:
Default Settings
Start locked off
Startup tune set to 1
Password length set to four
Password set to: 1, 2, 3, 4
, , , ,
or . The
1
2
3
4
5
,
,
,
or
, , , , , , etc....
.
Advertisement
Table of Contents
Related Manuals for Fish Tuning CSP5
Summary of Contents for Fish Tuning CSP5
- Page 1 The second section covers configuring the switch by pressing buttons while you turn on the ignition. The Features of Your New Digital CSP5 Switch Instantly change to any tune with one button press Lock in any tune till the password is entered ...
- Page 2 Lock Mode Any time you see an displayed, the switch is locked If the switch is set to start locked or it’s locked in a tune you will have to enter the password to exit. In most other cases, removing power will get you out of locked mode.
- Page 3 ECM replies NO CSP5 you will get that message. You should never see the NO CSP5 message. The NO CAN message should appear a few seconds after you turn off the key, right before it goes to sleep.
- Page 4 pressing and holding buttons until you see a displayed Enter the lock code at the until a appears again Now press and hold the keys indicated below until the display changes Setting the Default Start-Up Tune Hold any single button until that number appears during power up to set the default start-up tune.
- Page 5 Changing the Password Pressing buttons together for five seconds will let you enter a new password. At the , enter the current lock code, at the enter a new lock code and then at the , enter the new lock code a second time.
- Page 6 1, 2, 3, 4, 1, 2, 3, 4 is not very secure. Restoring Your Switch to the Factory Defaults This is possible for you to do with our help. Installing Your Digital CSP5 Switch Mount the switch in an available gauge location. Please make sure the wire is not hanging off the back of the switch in a way that it might get stepped on or pulled.
