Osmonics E4H Series Operation And Maintenance Manua

Water purification machines 14,400 gpd to 43,200 gpd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

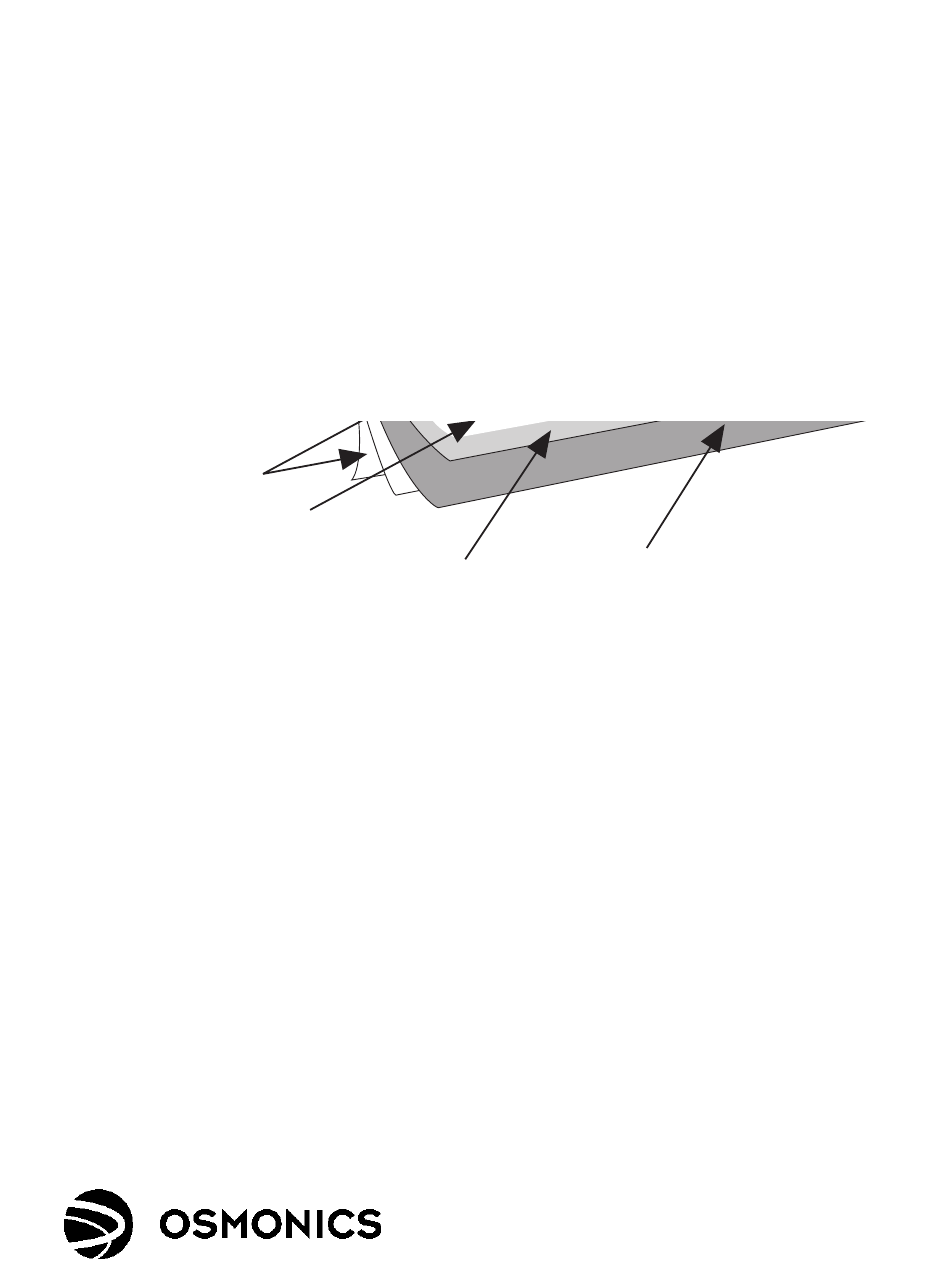

E4H-SERIES
WATER PURIFICATION MACHINES
14,400 GPD TO 43,200 GPD
OPERATION AND
MAINTENANCE MANUAL
Membrane
Membrane
Backing
Permeate
Adhesive
Carrier
Bond
q

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E4H Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Osmonics E4H Series

  • Page 1 E4H-SERIES WATER PURIFICATION MACHINES 14,400 GPD TO 43,200 GPD OPERATION AND MAINTENANCE MANUAL Membrane Membrane Backing Permeate Adhesive Carrier Bond...

  • Page 3: Table Of Contents

    E4H-SERIES WATER PURIFICATION MACHINES 14, 400 GPD – 43, 200 GPD OPERATION AND MAINTENANCE MANUAL TABLE OF CONTENTS Page DESCRIPTION............................General Information and Principles of Operation..............Machine Nomenclature......................... Machine Permeate Quality ......................Economy (ECN) Model and Deluxe (DLX) Model Option ..........Specifications for E-Series Machines ..................
  • Page 4 WARRANTY/GUARANTEE ........................START-UP DATA ............................. 10.0 DAILY LOG FOR E4H MACHINES ..................... LIST OF FIGURES Figure Title Normal vs. Crossflow Filtration............Membrane Sepralator with Interconnectors ........Cross-Sectional View of Sepralator............Principles of Operation................Typical Membrane Rejections/Passages ..........DWG # 1159330 ECN Electrical Diagram............Attached DWG # 1163858 ECN Flow Diagram..............Attached...

  • Page 5: Description

    Figure 1 - Normal vs. Crossflow Filtration Osmonics manufactures a patented spiral-wound membrane package, with a turbulent flow design. This membrane module, called a sepralator, collects the purified water within a cen- tral tube, the permeate tube (see Figures 2 and 3).

  • Page 6: Membrane Sepralator With Interconnectors

    Figure 2 - Membrane Sepralator with Interconnectors Figure 3 - Cross-Sectional View of Sepralator...

  • Page 7: Principles Of Operation

    Some operating definitions are provided to help you further understand your machine: Permeate Rate [Product Water Rate (Q )] is the flow rate of purified water which has passed through the membrane and out of the sepralator; expressed in gal/min (gpm) or gal/hr (gph) [in metric, liter/min (Lpm) or cubic meters/hour (m /h)].

  • Page 8: Machine Nomenclature

    Given the system case in Figure 4: Average Concentration (C ) 100 mg/L + (C ) 146.9 mg/L ) = 123.5 mg/L TDS Rejection = (C ) 123.5 - (C ) 6.2 x 100 = 95% ) 123.5 Passage = (C 6.2 x 100 = 5.0% 123.5 Recovery = (Q...

  • Page 9: Machine Permeate Quality

    • 21K indicates the rated permeate flow in thousands of gallons per day @ 77ºF (25ºC), i.e., 21K = 21,000 gallons per day • ECN indicates Economy Model and DLX indicates the Deluxe Model • 230 indicates 230 VAC, three-phase voltage to starter •...

  • Page 10: Specifications For E-Series Machines

    • Gauges, valves and rigid piping of stainless steel or plastic • Sepralator housings, all 304 stainless steel, with Noryl end caps • 316 stainless steel concentrate and recycle valves • All components in contact with the purified water (permeate) are either FDA-acceptable plastic (nylon, Noryl, polypropylene, PVC) or stainless steel materials.
  • Page 11 Operating pH For soft water [less than 1 grain per gallon (gpg) or 17 mg/L hardness], acceptable pH is 3.0 -10.0. For unsoftened water (contact factory with water analysis), acceptable pH is 5.5 - 6.0. Pre-Filter 5-micron Hytrex cartridge (See ®...

  • Page 12: Typical Membrane Rejections/Passages

    Zinc 98-99 10-20 controlled with proper addition of dispersants. Check with the factory for Strontium 96-99 more information on Osmonics’ special line of dispersants. Hardness Ca & Mg 96-98 Cadmium 96-98 10-20 Silver...

  • Page 13: Installation

    2.2.2 Valves Required for CIP, ECN Models Only IMPORTANT NOTE: Osmonics has installed a plugged pipe tee in the inlet line of the E4H units. This plug, when removed, will facilitate cleaning of the unit. A tee with (two) two-way...

  • Page 14: Electrical

    Electrical The DLX and ECN E-Series models are supplied with a single-phase, 110 VAC 60 Hz or 220 VAC 50 Hz control circuit and 8-foot cord which plugs into a three-prong grounded receptacle. For 220 VAC, 50 Hz units, plug must be customer-supplied. A 20 amp dedicated service circuit is required for proper operation.

  • Page 15: Start-Up

    If the machine is to be run at a different location than was originally intended, a new water analysis is required for warranty consid- eration and should be sent to Osmonics for review and recommendations for operation of the machine.
  • Page 16 3.2.4 Turn on the feedwater gradually and check for leaks in the inlet piping. No flow should go through the machine while the power is off and the inlet sole- noid is in the closed position. NOTE: When the machine is off, there should never be flow through the machine.
  • Page 17 Consult the Lakewood Model 2450 Installation and Operation Manual (P/N 1109695) for operating instructions. The factory alarm setpoints are as follows: Low Inlet Pressure 12 psig Low pH High pH pH Control 5.6-6.2 High Temperature 120ÞF (39ÞC) NOTE: The high-pressure pump should not be operating at this time. 3.2.11 As your machine is filling check for leaks and repair as needed.
  • Page 18 exceed 250 psi (17.3 bar). If you reach 250 psi (17.3 bar) before the valve is completely closed, open the recycle flow control valve one full turn, then continue to close the concentrate flow control valve. Continue to close the concentrate flow control valve until it is completely closed and your pressure is below 250 psi (17.3 bar).

  • Page 19: Operation And Maintenance

    Osmonics if a warranty question arises. OPERATION AND MAINTENANCE The operation and maintenance of your Osmonics E4H Machine is relatively simple but requires regular data recording and routine preventative maintenance. We cannot emphasize too strongly the importance of filling out the daily log sheet during each operating shift.

  • Page 20: Pre-Filter

    100 hours of operation, whichever comes first. A pressure drop of 8 psig (0.6 bar) across the filter or more during operation indicates one or more cartridges need changing. Use only Osmonics approved filters rated for 5 microns or less. Do not attempt to clean used filters - install new replacements.
  • Page 21 Osmonics recommends cleaning at least every month to ensure good sepralator performance and long sepralator life. Osmonics offers a full line of chemical cleaners for specific cleaning needs. See Table 2. Table 2 - Dry Chemical Cleaners...

  • Page 22: Draining Machine For Shipment

    CIP concentrate valves. The RO is now ready for operation. Draining Machine for Shipment Prior to shipping or outside storage of an Osmonics E4H Machine, the system should be cleaned with the appropriate cleaner, flushed with water, and protected from biological attack with the appropriate solution for TLC membrane.

  • Page 23: Sepralator Installation

    4.5.5 Remove the drain plugs from all PVC manifolds. 4.5.6 Be sure the flow meters are drained by disconnecting the bottom fitting of each meter. 4.5.7 Allow the machine to drain for a minimum of eight hours or until the opened ports quit dripping.

  • Page 24: Sepralator Replacement

    4.6.10 Insert the downstream end of the sepralator in the upstream end of the sepralator housing (i.e., load in the direction of flow; the brine seal is on the end of the sepralator that goes in last. For sepralator housings with the flow arrow pointing up refer to Section 4.6.12).

  • Page 25: Optional Accessories

    OPTIONAL ACCESSORIES Level Controls Float switches, pressurized storage switches or other level controls should be wired into the control circuit line prior to the switch on the unit. The following ensures that the inlet valve, instruments, and pump are not powered when storage tanks are full: float switch assembly with cord, counterweight, and plastic float (used with an atmospheric storage tank).

  • Page 26: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING GUIDE Symptom Possible Causes Remedies Low operating pressure Insufficient feedwater pressure Open the feed pressure, open the or flow feedwater valve, check for restrictions. Clogged pre-filter Replace the cartridge. High flow rates Close the concentrate valve, check the permeate and concentrate flow rates and adjust if necessary.
  • Page 27 TROUBLESHOOTING GUIDE Symptom Possible Causes Remedies Low concentrate flow rate, Concentrate valve plugged Remove the concentrate valve normal or higher than step and/or disassemble the pip- normal pressure ing. Clean the valve. Concentrate outlet line Examine the concentrate line for restricted obstructions or kinks;...
  • Page 28 Check the fuses or circuit break ers; measure the voltage. Motor and/or pump not See the pump instructions. operating properly Contact Osmonics for possible repair or replacement. Alarm condition has turned off Check for minimum inlet pressure machine and push alarm reset switch.

  • Page 29: Spare Parts List

    Spare Parts List Membranes, Housings and Part Number Associated Hardware Mechanical Coupling, 4.0”, EPDM Gasket 1153148 Mechinaical Coupling, 1.25”, EPDM Gasket 1157370 Mechanical Coupling, 1.0”, EPDM Gasket 1163602 Gasket for 4.0” Victualic Coupling 1146970 Gasket for 1.25” Victaulic Coupling 1146969 Gasket for 1.0”...
  • Page 30 Valves Part Number Autoflush Solenoid Valve, 1153037 110V, SS, 0.25” FPT Autoflush Solenoid Valve, 1151239 220V, SS, 0.25” FPT Inlet Solenoid Valve, 110V, 1.5” FPT 1163940 Inlet Solenoid Valve, 220V, 1.5” FPT 1163941 Valve, PVC, 0.25” MPT x HSB 1156744 Angle Valve, PVC, 0.25”...
  • Page 31 Pumps/Motors* Part Number Where Used PUMP, TF, SS2823G, 7.5 HP, 60 HZ 1120986 16K, 21K Reverse Osmosis PUMP, TF, SS2834D-50, 7.5 HP, 50 HZ 1123571 16K, 21K Reverse Osmosis PUMP, TF, SS2805AZ, 2 HP, 60 HZ 1120521 16K, 21K, 27K Clean-in-Place PUMP, TF, SS2808AZ-50, 2 HP, 50 HZ 1120523...

  • Page 32: Return Goods Authorization (Rga) Procedure

    All equipment must be shipped to Osmonics with the freight prepaid by the customer. Call our Customer Service Center with any questions or issues concerning freight claims and a representative will discuss your situation.

  • Page 33: Warranty/Guarantee

    If a sepralator fails to perform satisfactorily during the balance of the warranty period and with the return of the sepralator to the factory, Osmonics will replace the sepralator with a new sepralator and will charge the User for the portion of the 24 months that the seprala- tor was used plus incoming freight and local labor.

  • Page 34: Start-Up Data

    START-UP DATA Customer: Date: Model No.: Tested By: Serial No.: Units (Circle One) Data Data Remarks Permeate Rate ºF ºC Concentrate Rate Total Flow Rate Recovery Pre-Filter Pressure Post-Filter Pressure Primary Preasure Final Pressure µS Feed TDS Concentrate TDS µS µS Avg TDS Permeate TDS...
  • Page 35 DAILY LOG FOR NOMENCLATURE NAME OF COMPANY PRESS = PRESSURE OSMONICS E4H MACHINES PERIOD OF THIS SHEET CONC = CONCENTRATE (BLOW-BY) PERM = PERMEATE (PURE WATER) MACHINE MODEL NO.: NOTE: Please record all calibrations of instruments or other occurrences related to this system.
  • Page 36 Notes:...
  • Page 37 Notes:...
