Summary of Contents for Mueller USA HCF-36

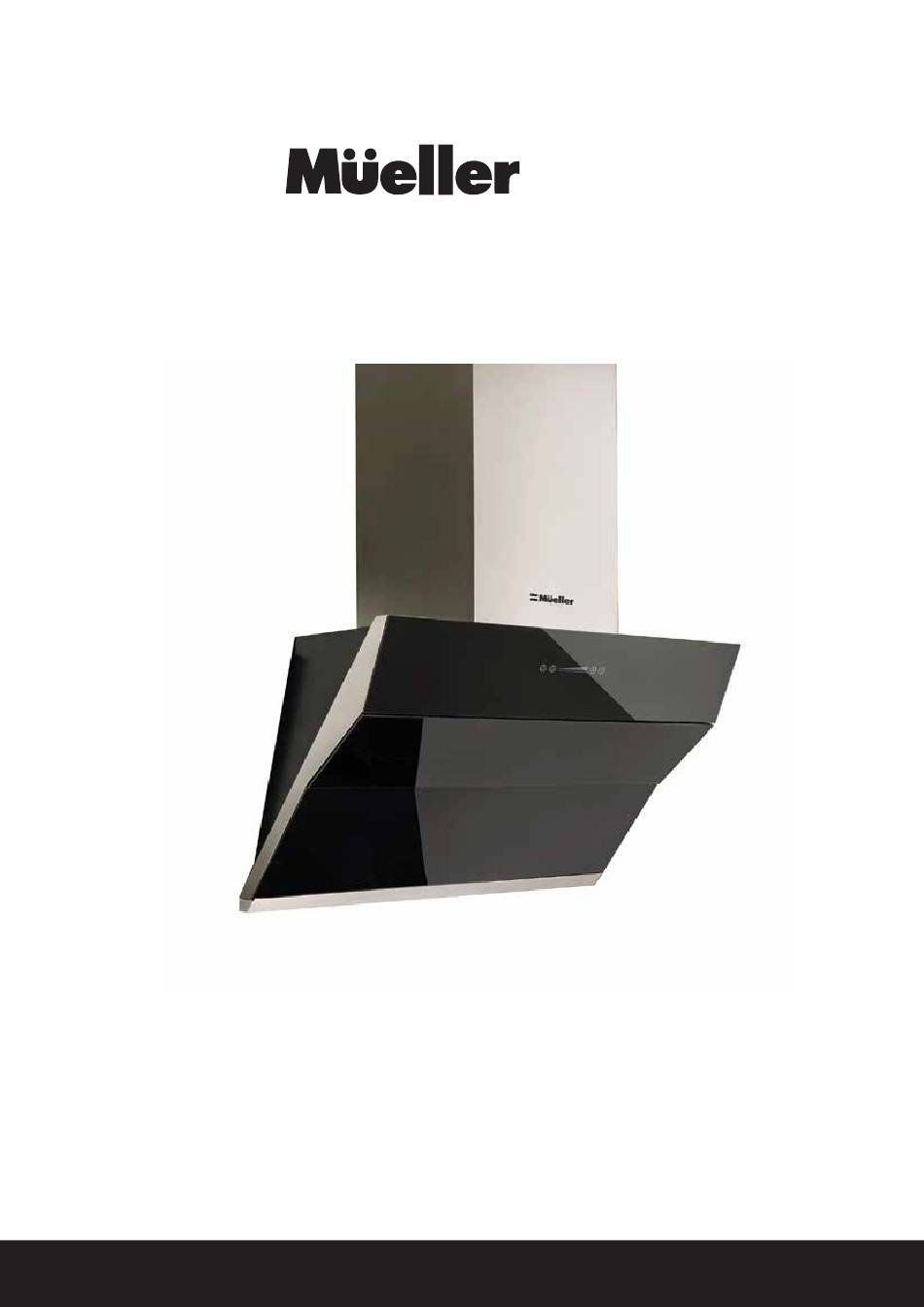

- Page 1 Pro Range Hood HCF-36 USER MANUAL...
-
Page 2: Table Of Contents
Dear Customer, In order to keep appliance in best performance and extend the life to your appliance, we suggest you to read the user manual carefully before using. This manual provides all instruc�ons you may require which ensure safe installa�on, using and maintenance. Please keep this manual close to your hand and you may need it as reference in future. -
Page 3: A�En�Ons
A�en�ons The Package of a new Müeller Range Hood The package of a new Müeller Range Hood should be dealt with cau�on in an environmentally way. Please keep the children away from the package because it might lead the children suffocated. Disposal of an old cooker hood It is suggested that the cooker hood should be replaced when it is beyond repair. -
Page 4: Know Your Hood
The User Manual is suitable for those models below. And please check the model of your hood. (The size annotated in the following picture is only for your reference. And the MAX is the maxim height of your hood which can be selected.) Technical parameters HCF-36 Power Ra�ng of Power Ra�ng of the Model... -
Page 5: Installa�On
Installa�on Before installa�on ( Pic. 1-A Installa�on Type- Stand alone Pic. 1-B Installa�on Type- Embeded) 1) When the Range Hood is installed as pic. 1-A, it is above and to the side of the hob with a distance of 35cm to 45cm between the pan support and the bo�om of the hood. The most pleasant installa�on height is when the control panel of the hood is parallel to your eyes. - Page 6 4) Packing list Part name Part Name Wooden Screw ST4.2*38 5 PCS Range Hood 1 PC 5PCS Exhaust Pipe Pad Φ（5-16）*1mm 1 PC Grease Cup 1 PC Exhaust Cover Aluminium Foil Adhersive Tape 1 SET 2 PCS Decorative Cover- Inner and Outer 600*50mm Fixed Mount 1 PC...
-
Page 7: Use Of The Hood
Use Of The Range Hood If the model of your Range Hood is belong to HCF-36 Pro Series, please refer to the following instruc�ons: 1. Opera�onal Key Instruc�on A ---- On/Off and controlling the opening and close of front cover B ---- Stop the �mer automa�cally... - Page 8 If the model of your Range Hood is belong to HCF-36 Pro Series, please refer to the following instruc�ons: 2. Opera�onal Key Instruc�on A ---- Lamp B ---- Func�on /gear deduc�ng/off C ---- Display board D ---- Func�on /gear increasing/off...
-
Page 9: Cleaning And Maintenance
3. Warnings: In some cases, electric appliances can be very dangerous. A) Please do not remove the filter while the Range Hood is running. B) Please do not touch the bulb and adjacent area when using for a long �me. C) No flame on directly under the Range Hood. -
Page 10: Something Wrong
Something wrong? Something Wrong Possible Reasons Solu�ons The hood doesn’t work Without power supply Check whether the plug is well inserted or not. Check whether the power base is effec�ve or not The hood doesn’t suck in The air outlet pipe or cover is Contact technicians smoke while the motor is blocked up...
