Summary of Contents for SwitchDin Q Cells Q Home System

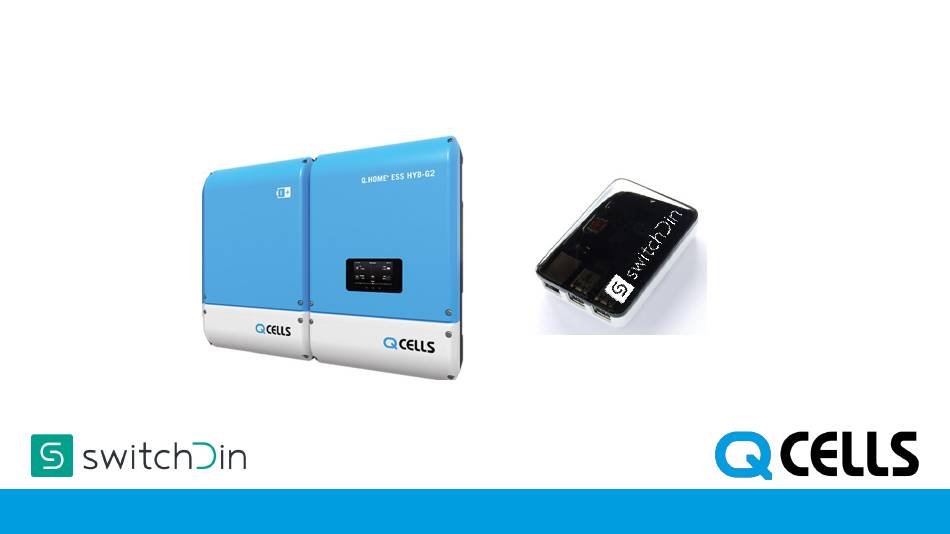

- Page 1 SwitchDin Droplet Quick Installation Guide for Q Cells Q Home System...
- Page 2 Droplet Placement Options for Droplet Location Option 1: Mounted with the Q Home system. Note: If mounted outside the Droplet should be Option 2: Option 3: enclosed in a suitable Mounted with the electrical Mounted within the home enclosure. switchboard. (ensure near the home internet installation complies with router.
- Page 3 Droplet Power Supply Option 1: Option 2: Connect the Micro USB power pack to the micro USB Connection via a switchboard DIN mounted 240vAC to port of the Droplet and plug the power pack into a 240v a 5vDC power supply using a micro USB connection GPO.
- Page 4 Connecting the Droplet Option 1: Droplet Direct Connect (Home Internet) Connect the Droplet to the internet by ethernet to the home router Connect the Droplet to the Q Home System using a USB Ethernet adaptor. (USB adaptor included. Ethernet cables not included)
- Page 5 Connecting the Droplet Option 2: Via Home Router Connect the Droplet to the internet using an Ethernet cable to the home router. Connect the Droplet to the Q Home System using an Ethernet cable to the home router. (USB adaptor included. Ethernet cables not included)
- Page 6 Option 3: Droplet Wi-Fi Connect (Home Internet) Connect the Droplet to the internet by Wi-Fi to the home router. To do this you will need to down load the SwitchDin Installer App from Apple App Store or from Google Play.
- Page 7 Connecting the Droplet Option 4: Droplet Direct Connect (4G) Connect the Droplet to the internet using a 3G / 4G Modem. Connect the Droplet to the Q Home System using a USB Ethernet adaptor. (USB adaptor included. Ethernet cables not included)
- Page 8 The Droplet comes Q Home configured and is simply plug and play. If you are a SwitchDin Trained Q Home Installer, you will be able to set up a new user unit within StormCloud. If you haven’t received SwitchDin training you will need to contact SwitchDin Customer Support for assistance.
