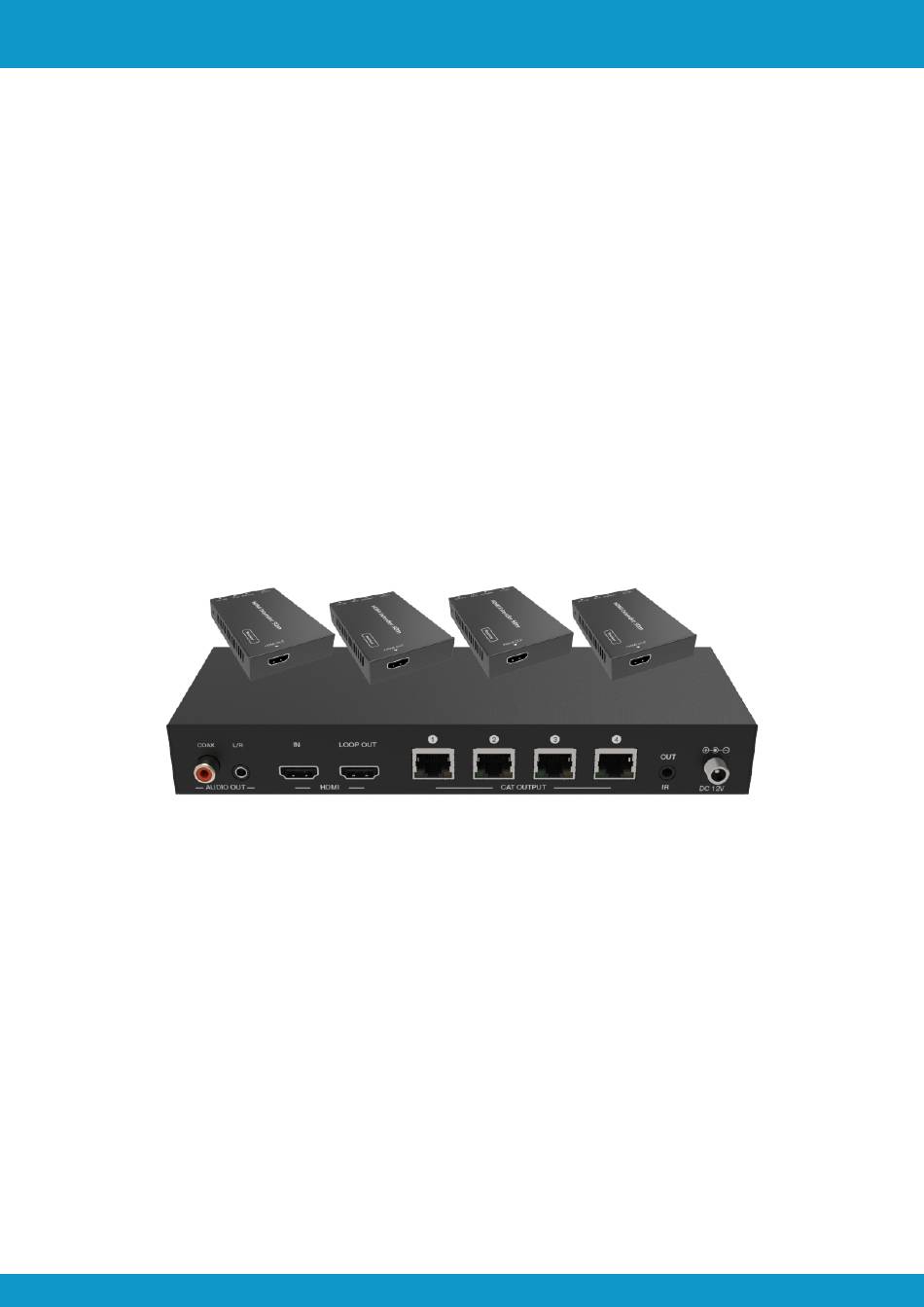

- Page 1 Scion Tech SC02.6040 User Manual 1:4 HDMI Splitter over CAT6 18G, 4K/60Hz 4:4:4, HDR SC02.6040 User Manual Version 1.1 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
- Page 2 Scion Tech SC02.6040 User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. The manual is only for operational purposes, please contact a local dealer for maintenance assistance. The functions described in this version were updated in July 2020.
- Page 3 Scion Tech SC02.6040 User Manual Safety Precautions ● Unpack the equipment carefully and save the packaging for possible future use. ● Follow basic safety precautions to reduce the risk of fire, electric shock and personal injury. ● Do not dismantle the housing or modify the enclosure as this may result in electric shock or personal injury.
-
Page 4: Table Of Contents
Scion Tech SC02.6040 User Manual CONTENTS Introduction, Features and Package Contents--------------------------------------------------------------------- 5 Key Features------------------------------------------------------------------------------------------------ 5 Package Contents------------------------------------------------------------------------------------------ 5 Specifications---------------------------------------------------------------------------------------------------------- 6 Front Panel Description---------------------------------------------------------------------------------------------- 7 Rear Panel Description----------------------------------------------------------------------------------------------- 7 Side Panel Description----------------------------------------------------------------------------------------------- 8 Receiver Front & Rear Panel Description------------------------------------------------------------------------- 8 IR Pin Connections--------------------------------------------------------------------------------------------------- 9... -
Page 5: Introduction, Features And Package Contents
● Advanced EDID Management ● LPCM 7.1, Dolby True HD, DTS-HD ● PoC (Power over Cable) Package contents 1. 1 x Main Unit (SC02.6040) 2. 1 x IR Emitters 3. 4 x Receivers 4. 4 x IR Senders cables 5. 1 x Power Adaptor 12V/2.5A 6. -
Page 6: Specifications
1 x HDMI Type A, 19-Pin Female Infra-Red Input: 1 x 3.5mm Jack Socket RS232 Service: 1 x Micro USB Power: 1 x DC Jack (not required when used with SC02.6040) Signal Signal Input: HDMI Standards: HDMI 2.0b, HDCP 1.x and 2.2... -
Page 7: Front Panel Description
Scion Tech SC02.6040 User Manual Front Panel Description 18Gbps HDMI 1:4 Splitter over CAT6 HIGH-DEFINITION MULTIMEDIA INTERFACE SC02.6040 LOOP Scion Tech Ltd Number Name Function / Description Power Switch Powers the splitter on and off. Power LED Illuminates red when powered ON. -
Page 8: Side Panel Description
Scion Tech SC02.6040 User Manual Side Panel Description EDID Service 1 2 3 4 5 Number Name Function / Description EDID Use to set the EDID (please see EDID table for details) Service Use for firmware updates and RS232 control. -
Page 9: Ir Pin Connections
Scion Tech SC02.6040 User Manual IR Pin Connections IR RECEIVER / SENDER IR BLASTER / EMITTER IR BLASTER / EMITTER SIGNAL POWER NOT CONNECTED IR SIGNAL POWER GROUND Page 9 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 10: Application Drawing
Scion Tech SC02.6040 User Manual Application Drawing Ceiling Speakers Speakers Multi Room Audio IR OUT LOOP OUT COAX AUDIO OUT HDMI IN CAT OUT DC 12V IR Out Satellite Receiver CAT5e/6 Local Display Receiver Satellite Receiver Display IR Remote Control Page 10 www.scion-tech.co.uk... -
Page 11: Edid Mode Table
Scion Tech SC02.6040 User Manual EDID Table EDID MODE EDID DESCRIPTION 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080i, Stereo Audio 2.0 11011 1080i, Dolby/DTS 5.1 11010 1080i, HD Audio 7.1 11001 1080P 3D, Stereo Audio 2.0... -
Page 12: Maintenance And Warranty
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number and/or email address where you can be reached. Page 12 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... - Page 13 Scion Tech SC02.6040 User Manual Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages...
