SLACKTIVITY seaHorse-1.5 Manual

MANUAL
V4.0

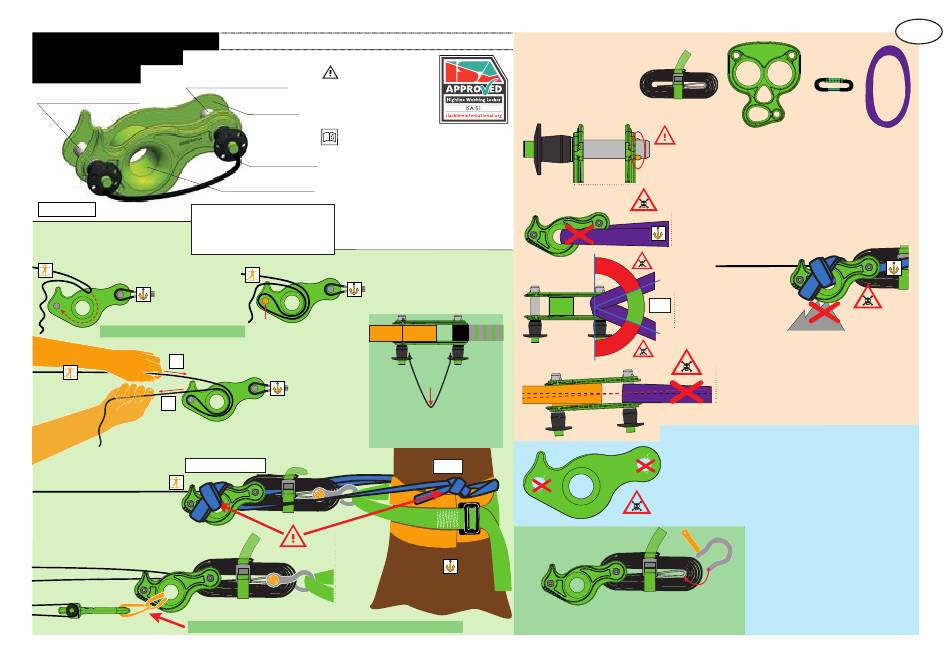

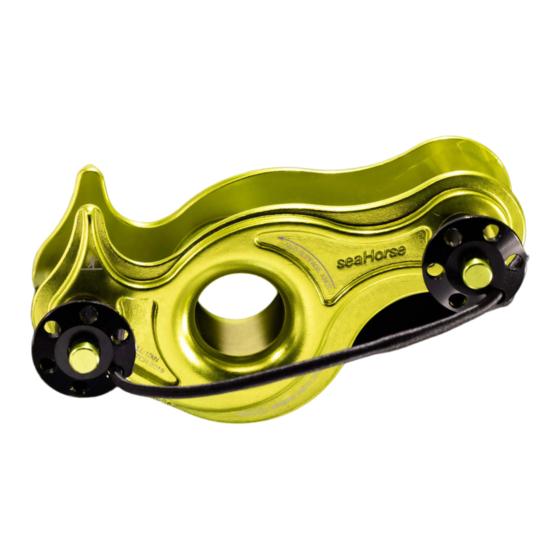

«seaHorse-1.5»
BallLocking BackPin (11.2 mm)
BallLocking FrontPin (11.2 mm)
Weight: 263g
WLL: 12kN / MBS: 70kN
For slackline webbings
» of Polyester/Polyamid/UHWMPE

2. How to setup

» 25-27mm width
» up to 8mm thickness
1.
Fold the webbing at
the place you want
to anchor it and feed
it around the Hollow-
CenterDiverter.
Tip: A large loop is easier to install / handle
A
B
anti-slippage knot
Weblock & RiggingPlate in one
The HollowCenterDiverter can be used to anchor a
tensioning system (e.g. HangOver-PulleySystem).
Tip: HangOver on a sling attached with a girth hitch to the HCD. Load with max. 6kN.
Please check regularly for updated versions of this manuel on slacktivity.com
Markings
In highlining there is a potential
risk of accident, severe injury
or death. Therefore this product
must only be used by trained or
otherwise competent persons
or people that are under direct
supervision and visual control
seaHorse-Body
of such a person.
made of Aluminium 7075
Before using this equipment, you must read and under-
stand all instructions for Use.
PinConnectionCord

1. Area of application

The seaHorse is a weblock for fixation of slackline
HollowCenterDiverter (HCD)
webbings in slackline-systems and highlines.
The seaHorse is approved for the slingle and double
wrap method.
Use only ISA:41 approved webbing for highline applications.
2.
Push the FrontPin through both holes and
the loop, while pushing the button. Make
sure the webbing is not stuck and installed
correctly. Check if the LockPin is closed, be-
fore tensioning.
3.
Tensioning: Feed the webbing (A)
to the seaHorse, while pulling the
tail (B) away from the seaHorse.
Tip: Pull the PinConnectionCord to the
4.
Before you start slacklining, tie
side before tensioning. This reduces for-
the anti-slippage knot and a tie-off
mation of twists/cranks and thus facilitates
around the tree with an appropri-
tensioning.
ate knot on the tail of the webbing.
(see page 2)

3. Warnings

Only the displayed connection elements
are allowed to use with the seaHorse
Allgemeiner Hinweis
Carabiners (according to EN 362 or EN
12275) are not approved for highline use.
Exception is the use of carabiners for tie-off
and backup.
tie-off
Tip softRelease
When using the seaHorse in combination with a softRelease, connect
the loop of the softRelease to the shackle. This prevents untwisting of
the shackle pin when releasing.
ConnectionLoop
softRelease
deadManPlate
Make sure at each use that the balls of the pins are locked outside of the
seaHorse body. You can double-check that by trying to pull out the pin with-
out pressing the green button.
Attention! Dirt can prevent the automatic latching of the locking mecha-
nism. Therefore this check is important!
The HollowCenterDiverter must not be used as primary anchor. The sea-
Horse would turn by 180° and thereby lose the webbing locking ability.
An angle of 45° of the an-
choring slings must not be
<45°
exceeded to prevent too
high expanding forces.
The seaHorse must be installed hanging
freely. No support.
Care must be taken to ensure proper alignment of the slack-
line and the anchor connection. Thereby the slackline should
not be twisted.

4. Lifespan and replacement

Under optimal storage conditions and with occasional and appropriate use
without obvious wear and tear there is no life time limitation. In general, the
service life of the seaHorse is reduced when used in extreme conditions, in
environments with salt, sand, snow, ice, moisture or in chemicals. In some
circumstances, the seaHorse can sustain damage to such a degree that its
service life is reduced to a single use. Before each use check the condition
of the seaHorse in function, degradation, wear, corrosion, deformation and
cracks. In case of damage the product must immediately be withdrawn from
further use. Especially in case of severe wear of
the aluminium body, the seaHorse should not be
used anymore. This is the case when the holes
are not round anymore or when deformation,
cracks or brows occur. The PinConnectionCord
can be replaced by a standard rubber cord (diam-
eter 3mm) if damaged.
Transportation and storing
The product must be stored dry and protected
from light, separated from sharp objects, acids,
bases & solvents.
English
Rundschlingen
© by SLACKTIVITY
Seite: 1/2
