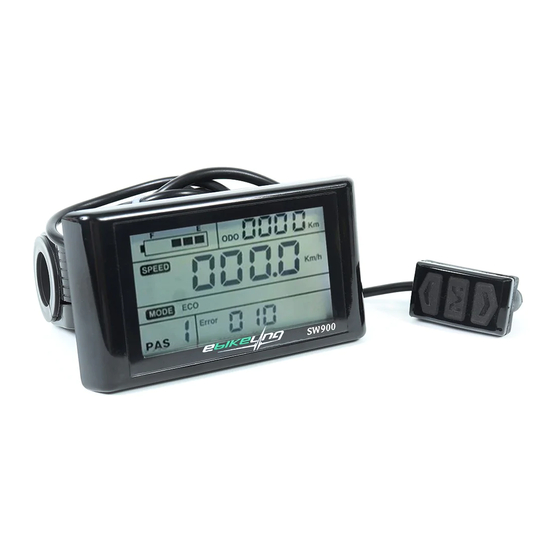

Summary of Contents for FattE-Bike SW 900
- Page 1 Instruction Manual Applies to all 2020 and newer FattE-Bike models: Sgt. Mingo, Londonderry, Penalosa, & Major T...
-
Page 2: Pedal Assist Level
Battery Power Odometer/Trip Reader SPEED GAUGE (MPH OR KM) HEADLIGHT SIGNAL PAS mode – eco/std/power PEDAL ASSIST LEVEL... - Page 3 Choice: Set km/mph display according to customer preference Intelligence Battery Indicator: Real-time display of current What does battery power Headlamps Controls: Control headlamps on and off through your LCD do? external buttons LCD Backlight Brightness Adjustment: Set backlight brightness. 1-darkest to 3-brightest 5 Pedal Assist Gears Control Mileage Display: Able to display ODO, trip length, &...
- Page 4 Function Button Descriptions 1. Start-up & Shutdown Long press the POWER button (3 seconds) to turn on bike display. Press the POWER button (for 1-2 seconds) to turn off bike the display. If the display is not utilized within 10 minutes of turning on (time can be adjusted by user), the display will automatically shut off to conserve power.
- Page 5 6. Parameter Setting Under start-up state, long press UP and DOWN button, the system enters parameter setting state; in this condition, the LCD parameters can be set. Again long press UP and DOWN button, it will be out of setting state or quits automatically without operation for 10 seconds. Under parameters settings, press UP/DOWN button to adjust values, press POWER button to switch item, and save last item parameter value.
- Page 6 j) S900 can provide warning for the whole vehicle. The LCD displays ERROR logo when the malfunction is tested. The error code position displays error code n=21~25, which represent the following:...
- Page 7 Your FattE-Bike LCD is covered by our warranty. Please see FattE-Bike warranty manual for details. For any questions with your LCD please contact us at: By Phone: 720-440-2971 Or by email at : mike@fattebikes.com...
