Manual For Schübeler HDT
And HST Ready To Plug

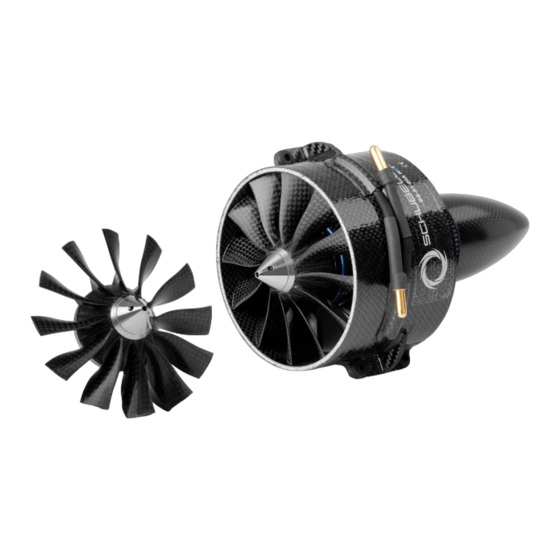

EDF Solutions
Manual for factory assembled and tested EDF
propulsion systems of the Schübeler HDT und HST series.
Copyright 2010 Schübeler Modellsysteme
Advertisement
Table of Contents
Related Manuals for Schübeler HDT Series
Summary of Contents for Schübeler HDT Series
- Page 1 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 Manual For Schübeler HDT And HST Ready To Plug EDF Solutions Manual for factory assembled and tested EDF propulsion systems of the Schübeler HDT und HST series.
- Page 2 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 Safety Instructions (Please read carefully before first use!) The EDF system is designed for the use in model aircraft only. Any other use is prohibited. Run your EDF system only outdoors and installed inside a model or outdoors on a testbed with a crack protection and a protection against suction of small parts or even your hand! Never stay in front or alongside a running EDF system, never place your hand in front of a running EDF...
- Page 3 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 Before we decide to use a potential motor inside one of our Ready to Plug fan systems we also check its mechanical qualities very carefully.
- Page 4 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 The Perfect Airframe For Your Ready To Plug Fan System: An optimised fan system only works perfect if installed in a suitable airframe. Please consider this sentence when choosing your jet model for your Schübeler Ready to Plug fan system.
- Page 5 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 Installation Of Your Ready To Plug Fan System: Generel ly we differentiate to ways of installing a fan unit The closed duct and the open duct system Both systems have their advantages and disadvantages and work more or less well with different types of airframes The intake has the function to provide the fan unit with the RIGHT amount of air..
- Page 6 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 Drawing 2 For both solutions the fan unit should take place slightly behind the CG of your model, the controller is placed near the CG and the battery is used to adjust the CG and takes place slightly in front of the CG.
- Page 7 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 Placing And Adjusting The Controller: Your controller needs to be adjusted in the right way to be the perfect match for your motor. If not yet done by us, please adjust your controller according to table 4 (values exemplary for YGE controller).
- Page 8 Composite - Detmolder Str. 32 - 33102 Paderborn - Germany E-mail: info@schuebeler-composite.com - URL: www.schuebeler-composite.com Tel.: +49 5251 873348 - Fax: +49 5251 8718976 First Start-up After final installation of your Ready to Plug fan system you can start the unit for the first time. We recommend to start the unit slowly and increase the rpm steadily while watching the intake system.
