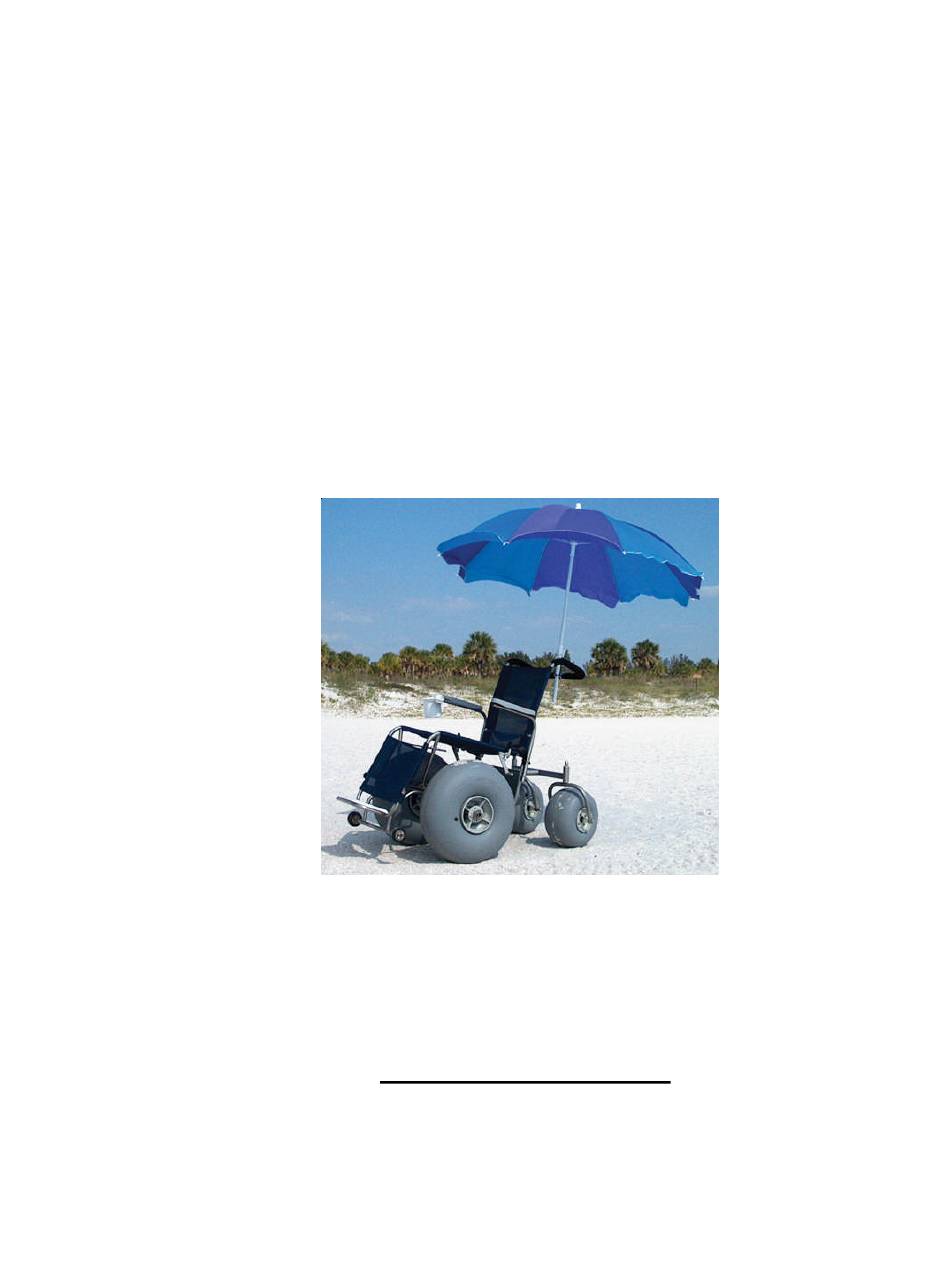

De-Bug Beach Wheelchair
ASSEMBLY, OPERATION,
SAFETY INSTRUCTIONS
AND
WARRANTY INFORMATION
DEMING DESIGNS
1090 Cobblestone Dr.
Pensacola, FL 32514
(850) 478-5765
(850) 476-3361 fax
www.beachwheelchair.com
kmdeming@aol.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the De-Bug and is the answer not in the manual?

Questions and answers

Summary of Contents for Deming Designs De-Bug

  • Page 1 De-Bug Beach Wheelchair ASSEMBLY, OPERATION, SAFETY INSTRUCTIONS WARRANTY INFORMATION DEMING DESIGNS 1090 Cobblestone Dr. Pensacola, FL 32514 (850) 478-5765 (850) 476-3361 fax www.beachwheelchair.com kmdeming@aol.com...
  • Page 2 Table of Contents Transfers Footrest Operation Recining Backrest and Tlt N Space Operation Ratchet Operation Ratchet Assembly Chair Assembly Instructions Available Options Maintenance Instructions Warranty Information...
  • Page 3 Transfers: Because of the diameter and width of the tires, De-Bug may be slightly higher from the ground than a conventionally designed wheelchair. Transferring from one elevation to a lower elevation minimizes this difference. The elevation of De-Bug can be lowered further by reducing the air pressure in all tires from 5 to 2.5 PSI.
  • Page 4 Stainless Chair. With Elevating Legrest Figure 1 To raise the leg rest, pull up on the Notched regulator located on each side of the chair. Figure 2 While holding the notched regulator up, raise the foot rest to the desired position, and then release the notched regulator, locking the footrest iin postion Figure 3 shows the legrest raised to...
  • Page 5 Figure 1 Stainless Chair. With Reclining Backrest Figure 1 Shows the chair in the fully upright position. Figure 2. To lower the backrest, pull up on the cable located in the rear of the chair until the locking mecha- nism is released. At the same time, lean the backrest slightly forward, then Figure 2 gently lower the backrest to the desired...
  • Page 6 Assembly Instructions To disassemble the De-Bug . Loosen the Leg Length Adjustment knobs and slide out the footplate. 2. Slide off the Leg Support Sling, and remove the two 1/4-20 nuts at the point of rotation of the knees. 3. To remove the Anti tip Wheels, loosen the four attaching 1/4-20 bolts and remove the wheelie bar.
  • Page 7 Assembly Instructions Please note the anti tip wheels are used with chairs that have the elevating legrests.
  • Page 8 316L Stainless Steel Pool/Street Chair Beach Wheelchair with shown with seatbelts, removable, elevating leg swing away armrest and rest, front castering rear wheels. interchangeable Ten year warranty on pool wheels, and frame included extra rear suspension. 316L SS Beach Reclining chair Wheelchair, with Shown with Elevating Leg rest,...
  • Page 9: Specification

    SPECIFICATION De-Bug frame is constructed using #316L Stainless Steel tubing which is a higher grade than standard “#304 marine grade” stainless. * Weight capacity 350 pounds standard, weight capacities up to 600 pounds can be accommodated for a nominal fee.
  • Page 10 PRODUCTS SUBJECT TO THIS LIMITED WARRANTY, WAIVING ANY OTHER RIGHTS YOU MAY HAVE AGAINST DEMING DESIGNS FOR ANY CLAIMS ARISING OUT OF ANY DEFECT IN WORK- MANSHIP OR MATERIALS. TO THE EXTENT ANY ONE OR MORE PROVISIONS OF THIS LIM-...
  • Page 11 General selling conditions *Deming Designs, Inc. is not responsible for shipping damages. The prod- uct is shipped fully insured. Upon delivery, the buyer must have the deliv- ery person acknowledge, in writing, any damage to the box and ask him for the procedure to follow.
