Assembly Instruction
Beschreibung

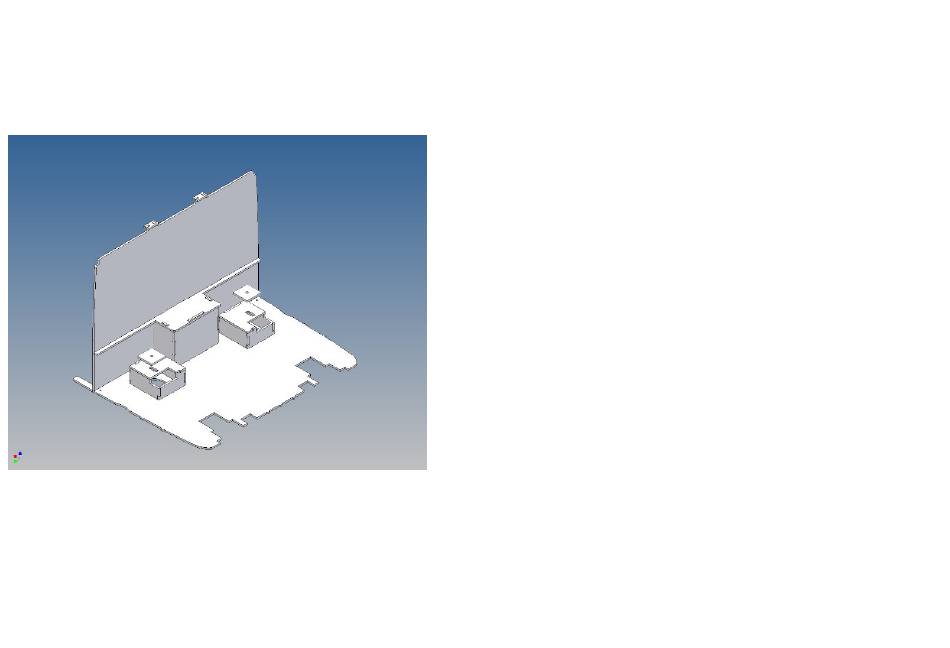

Driving cap floor assembly kit for
This kit includes parts for a driving cab floor for the
TAMIYA Arocs 3363 (1:14)
TAMIYA Arocs 3363 (M 1:14).
- dividing wall + seat holder -
The cab floor will be mountet under the original driver seat holder to hide the
Best.-Nr.: 2017-9006-06
view onto the RC equipment through the windshield.
For use of a speaker in the cabine roof you should cut a piece of sheet out off
the deviding wall at will.
The original platform above the electric motor should be removed.
Assembly Procedure
Before you put the parts together please read the assembly instructions
carefully and pay attention to the assembly sequence and test the fitting
accuracy of the parts before gluing them together.
The parts are made of polystyrene, if you use super-glue in combination with
activator spray, please be aware that the activator spray can destroy
polystyrene – because of that you should use it very carefully or use only
polystyrene-glue.
It is helpful to fix the parts at first only on a few points with super-glue and
after a check along the edges fully with super-glue or a polystyrene-glue.
Version 1.0 – 05.07.2017
