Cisco InfiniBand SFS 7000 Quick Start Manual page 25

The standard method is to face the flange toward the front of the chassis. However, you can also
mount the flange toward the back if you want to mount the switch backward in the chassis
(service-side forward).

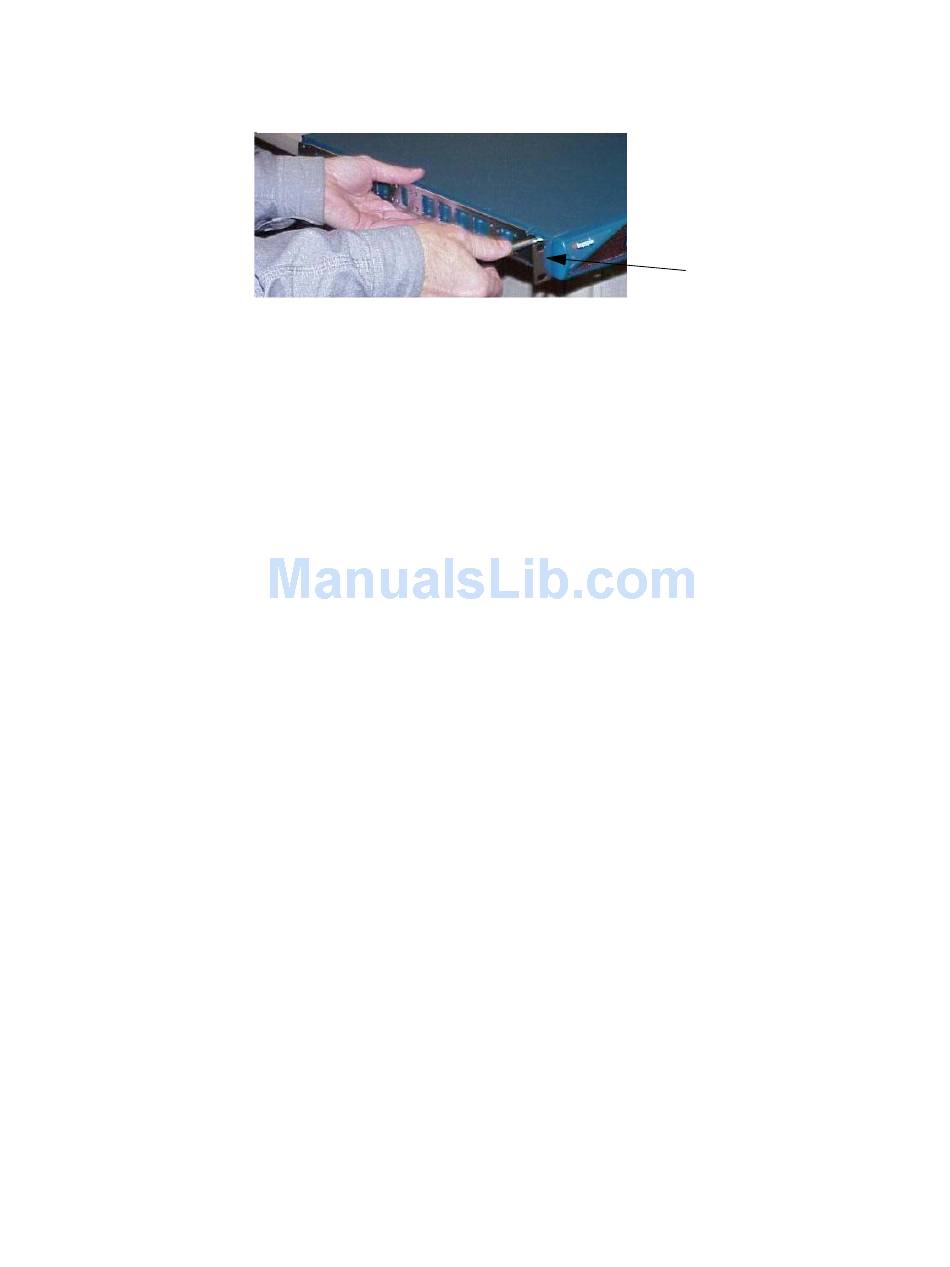

Figure 1-2: Attaching One Rail to Switch Chassis
3. Repeat Step 1. and Step 2.
The two counterparts to these sliding rails (without screw holes) should still be unattached.
4. Check your rack for clearance for the switch. The switch can be installed either directly on top of
another device (using the rubber feet, which are provided), or be suspended from the rack brackets.
on the opposite side of the switch chassis.
flange
3
