  • Page 1 PURE SINE WAVE POWER INVERTER MODEL: PS1001 PS1004 PS1002 PS1005 PS1003...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This section contains important safety and operating instructions. Read and keep this user manual for future reference. Do not expose the Pure sine inverter to rain, snow, or spray water. To reduce the risk of fire hazard, do not cover or obstruct the ventilation openings.
  • Page 3 WARNING : EXPLOSION HAZARD Working in the vicinity of lead-acid batteries is dangerous. Batteries generate explosive gases during normal operation. Therefore, you must read this guide and follow the instructions before installing or using your inverter. This equipment contains components which tend to produce arcs or sparks.
  • Page 4: Precautions When Working With Batteries

    PRECAUTIONS WHEN WORKING WITH BATTERIES Make sure the area around the battery is well ventilated. Never smoke or allow a spark or flame near the engine or batteries. Use caution to reduce the risk of dropping a metal tool on the battery. It could spark or short circuit the battery or other electrical parts and could cause an explosion.
  • Page 5: Specifications

    SPECIFICATIONS Item PS1001 PS1002 PS1005 PS1003 PS1004 Continuous output 600W 1000W 1500W 2000W 3000W frequency Surge power 1200W 2000W 3000W 4000W 6000W Input voltage range 10-16VDC (12V) Input under voltage 10.6VDC activation (12V) Input under voltage 10VDC protection (12V) Input under voltage...
  • Page 6 SPECIFICATIONS (CONTINUED) Item PS1001 PS1002 PS1005 PS1003 PS1004 Length of the remote 15 ft. (4.6m) only for model PS1002 & PS1003 controller wire & PS1004 & PS1005 Intelligent cooling the fan starts to work when the The cooling fan on the product will...
  • Page 7: Product Info

    PRODUCT INFO This power inverter is an advanced tool of power conver- sion, and it can supply you with AC power converted from DC power source. Not only can it be used in cars, vessels, and camping vehicles, it can also be used in an emergency if the power fails.
  • Page 8 WARNING AND SAFETY (CONTINUED) Disconnect the battery and inverter when it is not in use. PS1001 PARTS LIST Chassis PS1001...

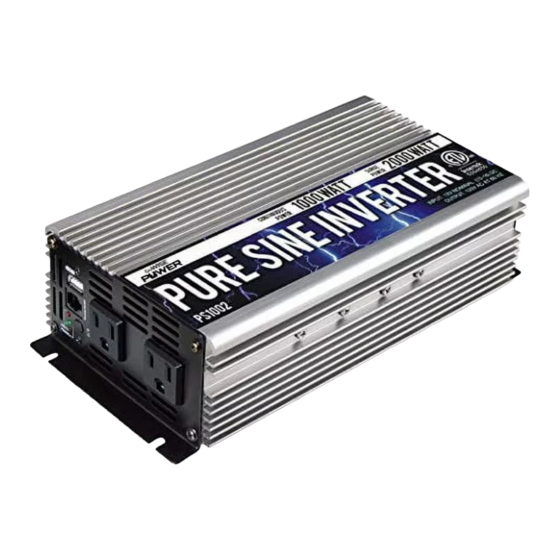

  • Page 9 PS1002 PARTS LIST Chassis PS1002...
  • Page 10 PS1003, PS1004, PS 1005 PARTS LIST Chassis PS1003, PS1004, PS1005...
  • Page 11: Remote Control Box

    REMOTE CONTROL BOX Normal working indicator Power switch (Switch) Fault indicator Remote interface Connecting wire INSTALLATION AREA Before installing the Pure sine inverter, the area or location MUST meet the following requirements: DRY - Do not allow water or other fluids to drip or splash on the Pure sine inverter.
  • Page 12 INSTALLATION AREA (CONTINUED) VENTILATION - Allow at least 5 inches (13cm) of space at the DC end of the Pure sine inverter for air flow, 1 inch (2.5cm) on each side, and 2 inches (5cm) at the AC end of the inverter. For cooling, the size of the space is not as important as the overall supply of air.
  • Page 13: Installation Of Inverter

    WARNING : FIRE & EXPLOSION HAZARD This equipment contains components that tend to produce arcs and sparks. To prevent fire or explosion, do not install the Pure sine inverter in compartments containing batteries or flammable materials or in locations that require ignition-pro- tected equipment.
  • Page 14 INSTALLATION OF REMOTE CONTROL BOX (For PS1002, PS1003, PS1004, & PS1005) The remote is designed to be mounted on a dash or other flat surface. The remote cable should be plugged into inverter and the remote before being mounted. NOTE: The remote is optional and not required for inverter operation.
  • Page 15 HOW TO INSTALL THE DC CIRCUIT BREAKER (DC CIRCUIT BREAKER IS NOT INCLUDED) Before making the final DC connection, check cable polarity at both the battery and the Pure sine inverter. Positive must be connected to positive; negative must be connected to negative.
  • Page 16: Using The Inverter

    USING THE INVERTER PS1001 Check the output voltage and capacity of the battery. It should comply with the requirement of the product used. Connect the battery and the DC cable of the inverter. Ensure that the polarities are not reversed and are in good contact.
  • Page 17 USING THE INVERTER (CONTINUED) PS1002, PS1003, PS1004, & PS1005 Check the output voltage and capacity of the battery. It should comply with the requirement of the product used. Connect the battery and the DC cable of the inverter. Ensure that the polarities are not reversed and are in good contact.
  • Page 18: Battery Operating Time

    HOW TO USE THE USB POWER SUPPLY Models PS1001, PS1002, & PS1005 USB output can provide stable 5V DC voltage power. The maximum current is 1000mA (PS1003 & PS1004 maximum current is 2.1A). NOTE: Before using the USB power supply, make sure the device can be charged by USB and the maximum working current is no more than 1000mA (PS1003 &...
  • Page 19 OUTPUT VOLTAGE & WAVEFORM The output waveform of the inverter is pure sine wave, which has the same waveform of the sine utility power, or even higher than the purity of the domestic power. This kind of waveform is suitable for most electrical appliances, including linear and switching in electronic equipments, transformers, motor etc.
  • Page 20 FUNCTIONS 1. Input under-voltage alarm: When the input DC voltage is lower than 10.6V, the buzzer will whistle intermittently to warn the user that the inverter will go into the under voltage protec- tion. If this happens, be sure to save all your data if a comput- er is being used.
  • Page 21 FUNCTIONS (CONTINUED) You may continue using it after the temperature returns back to normal. Meanwhile, find out what factors are causing the inverter to overheat. Such factors may be poor ventilation, ambient temperature, vent, load power, etc.
  • Page 22: Troubleshooting

    TROUBLESHOOTING Fault/Display Cause Solutions No output voltage, Low input DC voltage Recharge or replace the buzzer sounds battery continuously High input DC voltage Do not use it when the battery is charging. Check the rated voltage of the battery and make sure that it is in the allowable range of the input voltage Overload...
  • Page 23 1. Separate the inverter TV or audio, and antenna static on screen or 2. Use screened antenna static noise, or no audio If the inverter still malfunctions after all solutions have been exhausted, please contact Power Tech-On for further assistance at 1-844-539-7991.
  • Page 24: Warranty

    Power Tech-On shall not be liable for loss of use or any other incidental, consequential or indirect costs, expenses or damages. There are no express warranties except as listed above.
