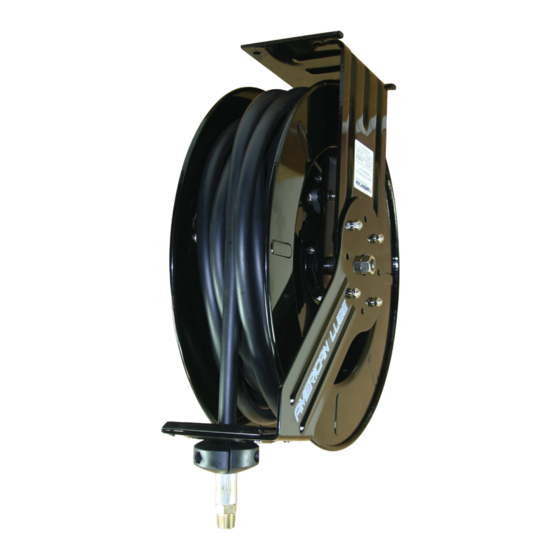

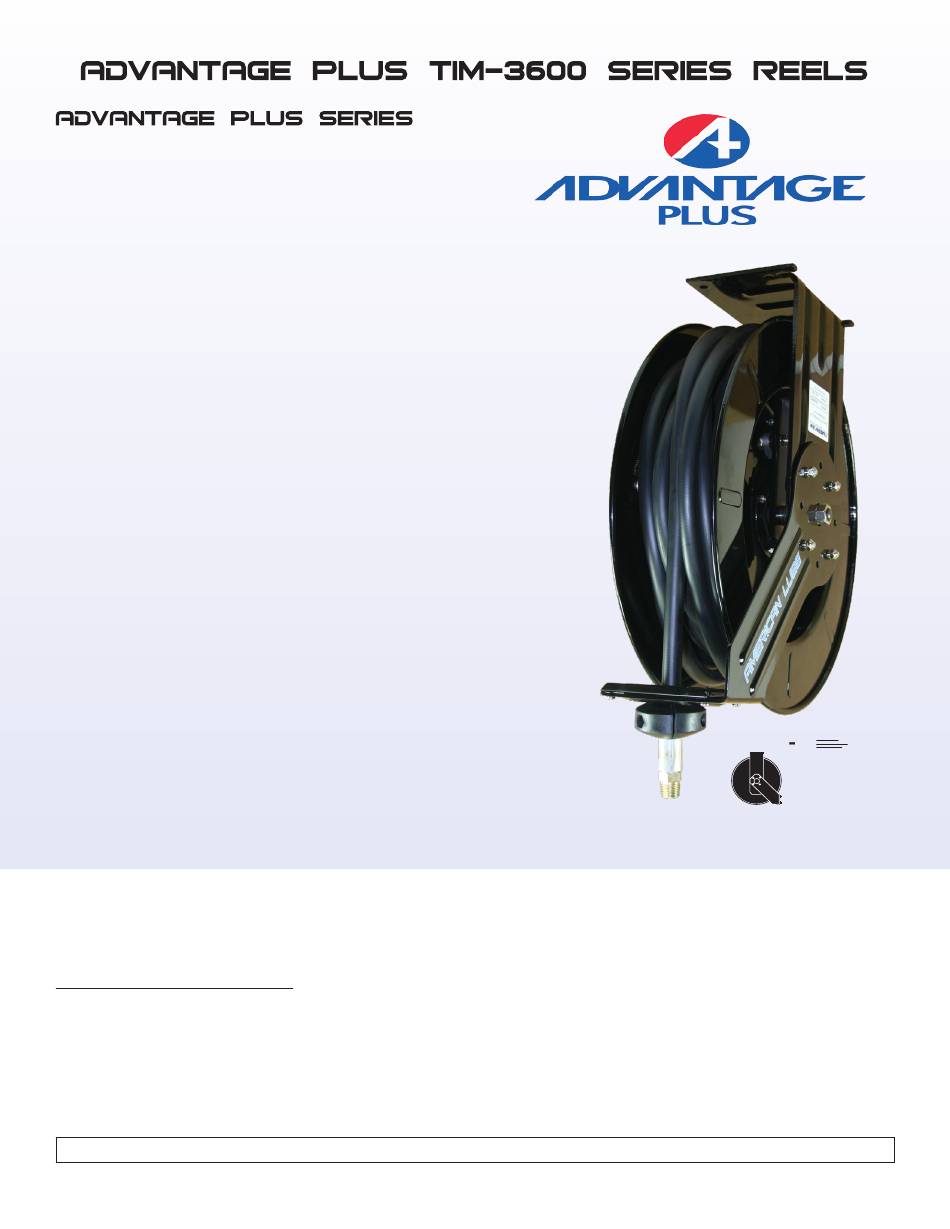

ADVANTAGE PLUS TIM-3600 Series Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SLIDE-IN MOUNTING BRACKET

Optional slide-in bracket simplifies reel mounting. Easily

allows one person to hang the reel in an overhead

application

LATCH SPRING

Heavy-duty latch spring is designed for years of trouble-free

service, and can be replaced without removing or disassembling

the reel

ENCLOSED SPRING

Cartridge style spring motor is packed with grease and fully

enclosed for extra safety. Springs are factory balanced for each

size reel

MOUNTING FLEXIBILITY

Multi-position guide arm is easily adjusted for ceiling, floor, wall,

tank, or truck mounting

STRENGTH BEADS

Reels are constructed with strength beads for added rigidity

ROLLED EDGES

Hubs are constructed of heavy gauge steel with rolled edges for

extra strength and maximum protection

SELF-LUBRICATING

1" double supported steel axle with 1" self-lubricating precision

bearings

RIGID CONSTRUCTION

Base plate and support post are built from heavy 1/4" plate steel

to reduce flexing and fatigue

HI-FLOW SWIVEL

Load-free high-flow swivel allows maximum product delivery, and

can be replaced without removing or disassembling the reel

DURABLE FINISH

All Advantage Plus Series reels are powder-coated black for

increased durability

Read the following precautions and instructions before you begin assembly or using. Failure to comply

with these instructions could result in personal injury or property damage. Keep these instructions in a

convenient location for future reference.

Hose Reel Safety Precautions

Make sure incoming line pressure does not exceed rated operating pressure for your model hose

reel.

Use proper eye protection when assembling and using the hose reel.

Assemble the hose reel on a clean workbench.

Use soap and water when checking for leaks.

Keep children away from the work area.

Warning: Exposure of skin directly to pressurized air, or fluid could result in severe bodily injury.

Advantage TIM-3600 Series Reel, Manual, June2020

Slide in

Bracket

Compatible

Table of Contents

Need help?

Do you have a question about the TIM-3600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ADVANTAGE PLUS TIM-3600 Series

Page 1 DURABLE FINISH Compatible All Advantage Plus Series reels are powder-coated black for increased durability Read the following precautions and instructions before you begin assembly or using. Failure to comply with these instructions could result in personal injury or property damage. Keep these instructions in a convenient location for future reference.
Page 2 Note: Final spring tension adjustment is accomplished by adding wraps of hose around the drum (to increase tension) or taking off wraps of hose (to decrease tension). Refer to: Adjustment of Spring Tension. Figure 1 Typical Mounting Positions Advantage TIM-3600 Series Reel, Manual, June2020...
Page 3 Note: Final spring adjustment is accomplished by adding or removing wraps of hose around the drum. (Details see spring tension adjustment). Spring Canister Warning If the rewind spring fails for any reason: For safety reasons, the rewind spring is not repairable. Advantage TIM-3600 Series Reel, Manual, June2020...
Page 4 Advantage TIM-3600 Series Reel, Manual, June2020...
Page 5 Non-DEF reels, order: TIM-HOSE-CLMP Hose Clamp DEF Reels, order: TIM-CLAMP-18 TIM-3600-42 Non-DEF reels, order: TIM-238-1 Hose Protection Spring DEF Reels, order: TIM-398-1 For pricing and ordering information, please call 410-252-9300 and press 2 or email CustomerService@americanlube.com. Advantage TIM-3600 Series Reel, Manual, June2020...
Page 6 Slide drum off axle. Replace old parts with new TIM-3600-14 kit parts (cam, spring, bolt, etc.). Reassemble. Tension reel by turning the drum three complete turns. 10. Latch drum. 11. Reassemble hose stop, etc. Advantage TIM-3600 Series Reel, Manual, June2020...
Page 7 12-3/4” L x 10-1/2” W slide-in mounting bracket simplifies reel mounting by allowing for one man installations. Easily mounts to Uni-Strut® using Uni-Strut® hardware (not included). Can also be mounted by drilling and fastening to an I-Beam or H-Beam (fastening hardware not included). 1/8" steel construction. Advantage TIM-3600 Series Reel, Manual, June2020...
Page 8 Do not remove the nuts on the exterior face of the rewind spring canister. Remove the complete/intact rewind spring canister and replace the rewind spring canister. Reassemble the reel and adjust rewind spring tension as appropriate. Advantage TIM-3600 Series Reel, Manual, June2020...
