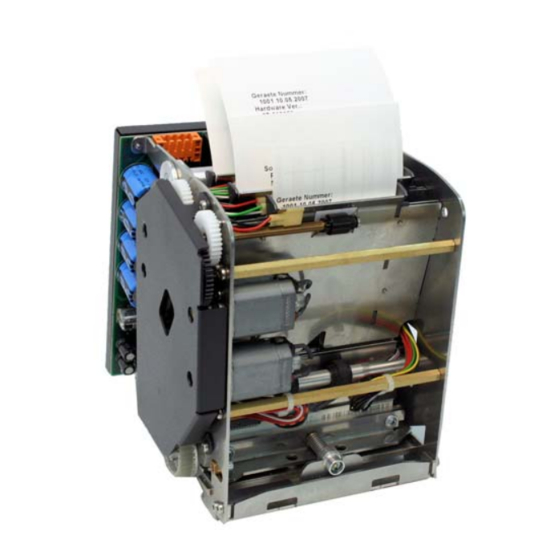

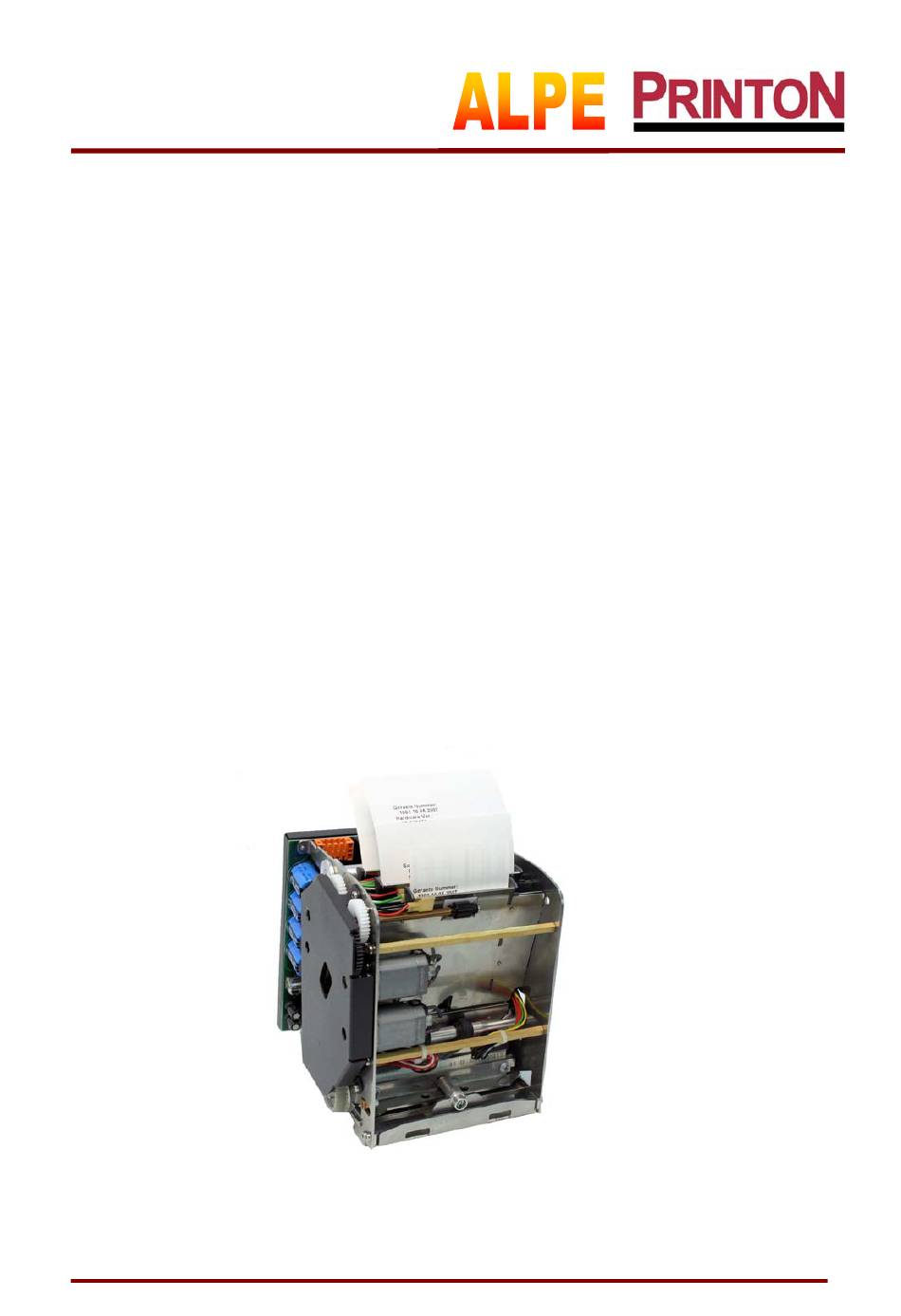

Ticket printer
PDM170-X
Maintenance and repair instructions
Content:
,
updated on 25. July. 2007
Page 1 of 7
Advertisement
Table of Contents
Summary of Contents for ALPE PDM 170 Series
- Page 1 Ticket printer PDM170-X Maintenance and repair instructions updated on 25. July. 2007 Content: 1. maintenance and repair (general information) 2. maintenance (lubrication and dedusting) 3. trouble-shooting (pieces of paper etc. in the printer) 4. trouble-shooting (by the aid of the test program) 5.
- Page 2 1. Maintenance and repair (general information) Maintenance rate: The printer PDM 170-X (1/2/3/4) has a need of low maintenance. In order to extent the life cycle and to improve the MTBF/MCBF values we suggest: • to grease all sliding parts every 2-3 years •...
- Page 3 2. Maintenance (lubrication and dedusting) Dedusting: • The printer should be brought to the maintenance devision in the normal work position and without heavy vibrations. With a vacuum cleaner with flexible tube, the dust can be removed carefully. We suggest to use a small adapter for the vacuum cleaner with a tube of about 5 mm diameter and a bigger one of about 12 mm.
- Page 4 There are bearings of the gears and bevels with plate spring above the motor and roller bearings on both sides. There are also bearings of the cutter drive mechanism and the cutter friction surface. Please note: After the assembling or disassembling all blank (grinded) cutter parts should be rubbed with an oily tap.
- Page 5 3. Trouble-shooting (pieces of paper etc. in the printer) To remove pieces of paper by the means of the test program of the vending machine: • If the paper pieces are long and can be allocated to a paper format, it is the best to remove them by commands of the paper feeding system of the vending machine or the testprogram of the printer.
- Page 6 • Removing the thermo printer head: If a glue strip sticks on the print roll, the thermo printer head can easily be removed: a: Push the aluminium pressure ring with the thumb or a bolt against the spring, turn it up and remove the spring. Important: Never exchange the spring system with one of another printer.
- Page 7 4. Trouble-shooting (by the aid of the test program) Please refer to the description of the test program, the training and the corresponding documentation and also to chapter 1 describing the maintenance and the repair. There you can look for repairs: for example training efforts (time).
