Summary of Contents for ZHUHAI HONOR TECHNOLOGY XPOS-I100

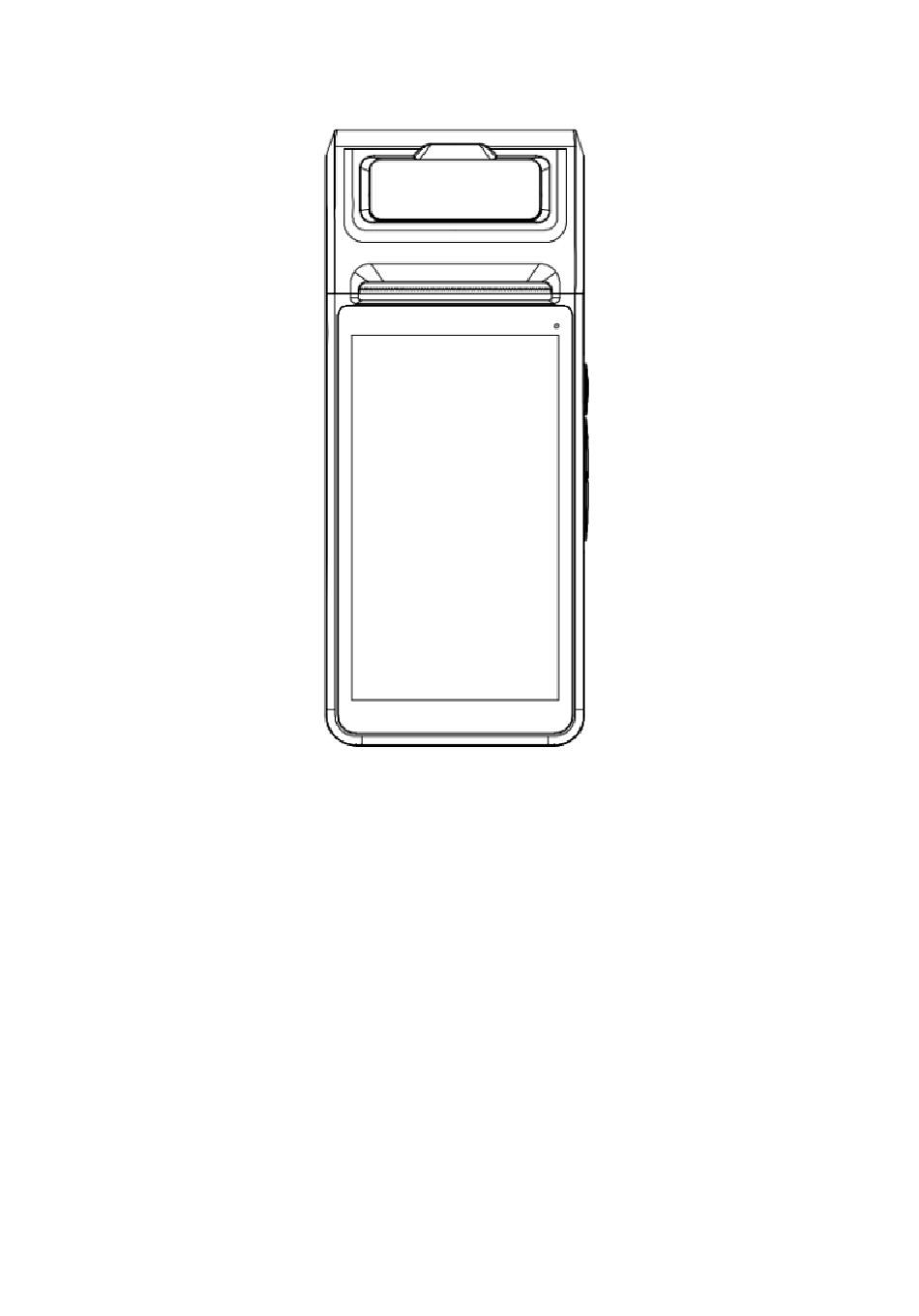

- Page 1 XPOS-I100 Smart handheld printer User guide ZHUHAI HONOR TECHNOLOGY CO.LTD...
- Page 2 Power Button Short press: Turn on/off the screen when power on. Long press: Hold few seconds to switch the power on. When power is on, hold for few seconds to show the Option Menu including ‘Power off’, ‘Airplane Mode’, ‘Settings’, ‘Lock Now’, and ‘Reboot’.
- Page 3 Printing head The thermal printing head. Notification LED Solid green light when XPOS-I100 is charging and the battery is fully charged. Flashing green light when you have a pending notification. Solid red light when the battery is being charged.
- Page 4 Speaker Sound comes out from here when playing music or movie. The sound that prompts the Printer’s status, like run out of paper or overheat, also comes out from here. Camera Scan QR code or bar code. Charging Contact Use to charge with the Charging base (keep away from water, metal object and other electrified equipment).
-
Page 5: Micro Usb
Headset The headset jack. Micro SIM Card The Micro SIM Card slot. Note: when inserting or removing the microSIM card, please make sure the XPOS-I 100 is power off, otherwise it may cause damage to the hardware. To insert the microSIM card, firstly open the soft cover，then insert the sim card into the slot that the picture shows with its metallic side UP and the unfilled corner side OUT, finally close the soft cover. -
Page 6: Installing The Roll Paper
schematic drawing of installing roll paper Installing the roll paper: ·Open the paper cover with the handle(see ①) . ·Remove the used roll paper core if any, then install the roll paper in the correct direction (see ②). according to the Schematic drawing, remember to pull out some paper outside the cover ·Close the paper cover back，finish installing roll paper(see ③)；... -
Page 7: Battery Caution
·To protect the battery, it is recommended to charge in time when battery level is low, do not let the battery run out. Product Specifications Product Model: XPOS-I100 Operating System: Android 7.0 CPU: frequency 1.3GHz， 64 bit Quad Processor RAM: ROM: Display: 5.5-inch IPS with 960X540 resolution... -
Page 8: Safety Precautions
In the Box XPOS-I 100 Charging base Power Adapter x1 USB cable User Manual x1, Warranty Card x1, Product certificate x1 ☑58mm roll paper x1 □__________ Safety Precautions · Do not use in locations subject to high humidity or temperature. Excessive humidity and temperature may cause equipment damage, fire, or shock. -
Page 9: Product Warranty Card
Product Warranty Card Product Name: _________________________ Product Model: _________________________ Product Number: _________________________ Purchase Date: _________________________ Warranty Period：The warranty time is _____ days from the day when you have the invoice. Free maintain won't be given under the following circumstance: ·The malfunction and damaged caused by unauthorized repairs and alteration. ·Incomplete product bar code or Fragile Sticker. - Page 10 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment。 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
