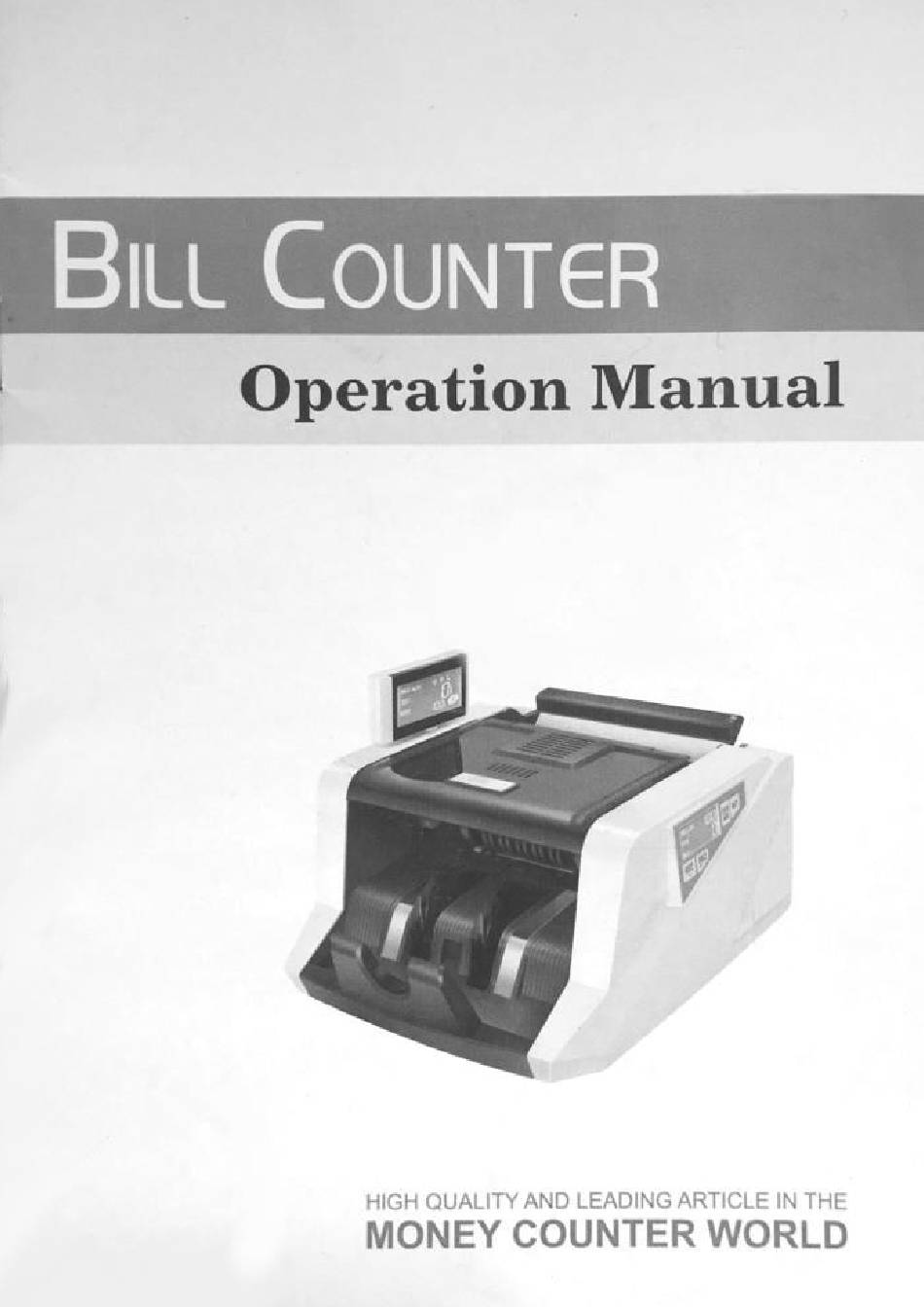

Sudvision CB04 Operation Manual

Bill counter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB04 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sudvision CB04

  • Page 2: Table Of Contents

    CONTENT 1. Illustration ---------------------------------------- 1 2. Function Controls and Display ------------------- 2 3. General Instruction ------------------------------ 2 4. Safety Instructions ----------------------- 3 5. Power Up ----------------------------------- 4 6. Counting Function ------------------------ 4 7. Counterfeit Detection -------------------- 6 8. Setting the sensitivity level --------------- 7 9.

  • Page 3: Illustration

    1. Illustration OCRL International SRL www.ocrl.com.ar...

  • Page 4: Function Controls And Display

    2. Function Controls and Display- before operation, please be clear which model you have bought 3. General Instruction Being the latest generation of money counter, this model is the vanguard of our evolution in bill counting technology. Its compact and stylish design is as remarkable a OCRL International SRL www.ocrl.com.ar...

  • Page 5: Safety Instructions

    as its integrated electronics and multifunction capabilities. Different from other back- loading counter, it employs many new function detection methods which other back- loading counter doesn´t have. Being improved in many aspects of internal structure which make it quite different from other counting machine, this hi-tech compact counting machine is easy to operate and repair.

  • Page 6: Power Up

    e. If the product shows a noticeable change in performance. -To reduce the risk of electric shock, do not disassemble this product. Take it to qualified service personnel when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.
  • Page 7 Bills need to be placed correctly as indicated in the following steps: Place the bill between the counting guides as shown in the figure 1 and figure 2. Swiftly, push the bills with a finger <see figure 3> to make them rest on the top of the hopper plate and in the correct counting position.

  • Page 8: Counterfeit Detection

    7. Counterfeit Detection ·UV (Ultraviolet) detection function <available for the model with UV detection or the model both with UV and MG detections> Used to check all kinds of banknotes which contains UV feature. The UV function is automatically turned on by default when the machine is powered up.

  • Page 9: Setting The Sensitivity Level

    MG function and COUNT indicator is on. If the machine detects a counterfeit banknote during counting, it will stop counting and emit beeping sound, while the counting display will show the message ‘E-3’ and the ‘ ’ indicator will blink (alerting the presence of a dubious bill).

  • Page 10: Error Message And Solution

    confirm and back. 9. Error Message and Solution The machine automatically enter the program system to self checking when the machine is powered up, the machine enters into a self-examination system automatically. The batch display may shows some error message when counting.

  • Page 11: Error Code And Solution

    solution is cleaning the sensor by brush or cloth, or take aways the note, paper or matter, then power up the machine again. 10. Error Code and Solution The batch display may shows some error message when counting, which means there are some problems with the machine. Refer to the following diagram to find way to solve it.
  • Page 12 Generally speaking, most of the above-mentioned problems may be caused by dust or dirt inside of the machine. Keeping the machine clean is highly recommended. OCRL International SRL www.ocrl.com.ar...

  • Page 13: Hopper Adjustment

    11. Hopper Adjustment -When improper feeding of bills occur, adjust the bill thickness in the hopper by turning the bill adjustment screw located in the back of the machine to ensure proper feeding. -Turn it right to decrease the thickness (see figure 4) -Turn it left to increase the thickness (see figure 5) Figure 4...

  • Page 14: Specifications

    ♦ With batching, adding and self-examination functions. ♦ Automatic half-note detection. 14. Specifications ♦ Dimension: 311mm x 256mm x 213mm ♦ Countable Banknote Size: 50 x 100 ~ 90 x 185mm Net Weight: 5.7kgs ♦ Counting speed: >900pcs per min ♦...
