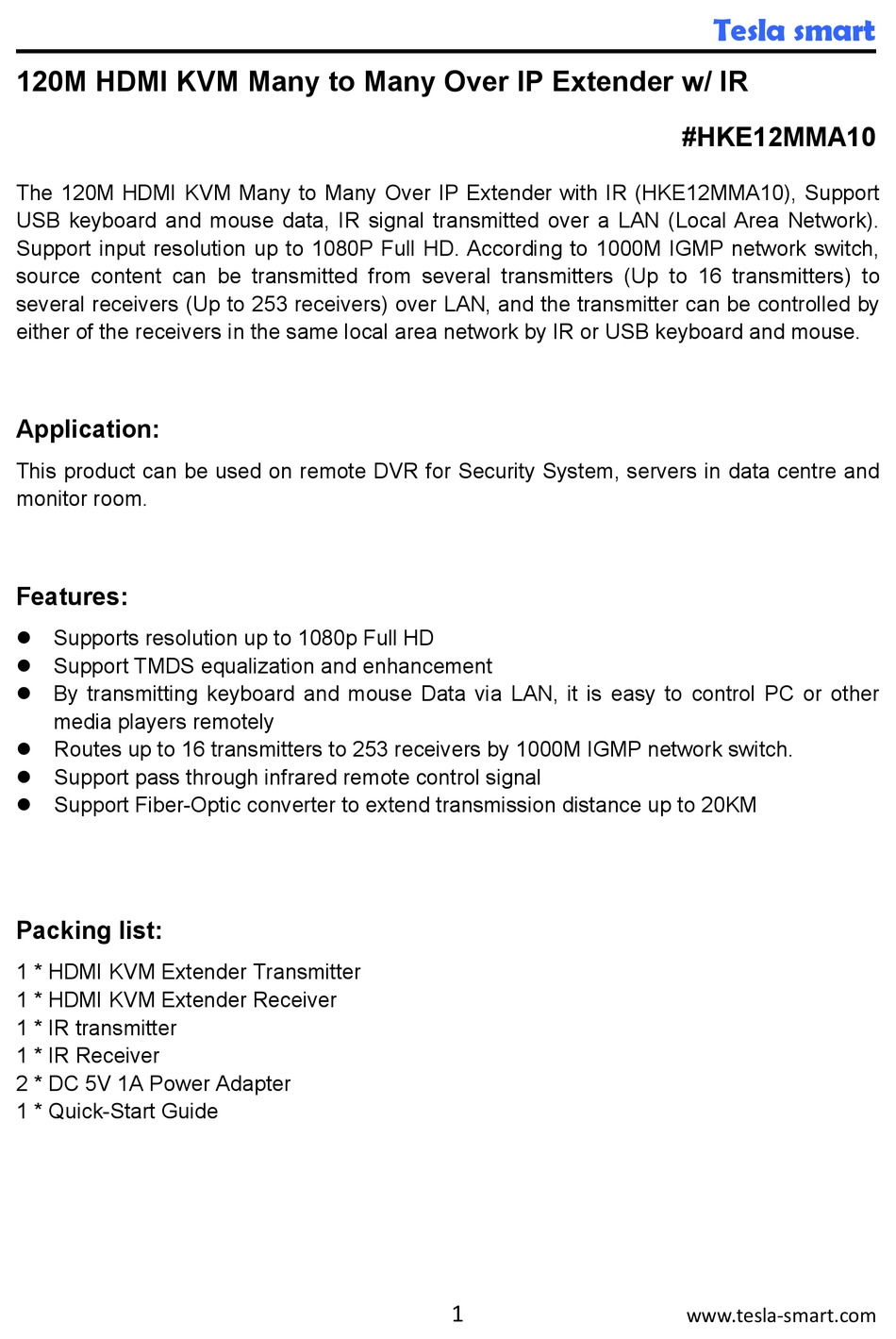

Tesla smart HKE12MMA10 Manual

Tesla smart
120M HDMI KVM Many to Many Over IP Extender w/ IR
#HKE12MMA10
The 120M HDMI KVM Many to Many Over IP Extender with IR (HKE12MMA10), Support
USB keyboard and mouse data, IR signal transmitted over a LAN (Local Area Network).
Support input resolution up to 1080P Full HD. According to 1000M IGMP network switch,
source content can be transmitted from several transmitters (Up to 16 transmitters) to
several receivers (Up to 253 receivers) over LAN, and the transmitter can be controlled by
either of the receivers in the same local area network by IR or USB keyboard and mouse.

Application:

This product can be used on remote DVR for Security System, servers in data centre and
monitor room.

Features:

 Supports resolution up to 1080p Full HD
 Support TMDS equalization and enhancement
 By transmitting keyboard and mouse Data via LAN, it is easy to control PC or other
media players remotely
 Routes up to 16 transmitters to 253 receivers by 1000M IGMP network switch.
 Support pass through infrared remote control signal
 Support Fiber-Optic converter to extend transmission distance up to 20KM

Packing list:

1 * HDMI KVM Extender Transmitter
1 * HDMI KVM Extender Receiver
1 * IR transmitter
1 * IR Receiver
2 * DC 5V 1A Power Adapter
1 * Quick-Start Guide
1
www.tesla-smart.com
