hupRF Panoramic Adaptor Installation – IC718
These instruction cover installation of the PAT board in the 1st IF of the ICOM IC718 –
64.455MHz – this gives access to all receiver options on the main receiver.
Although the rig uses separate mixers in the Rx and Tx paths, the 1
common to both directions. The connections shown here pick up the output of the filter after
the diode switch, so significant Tx signal should not be present. However, it is recommended
that PAT is powered from the R8V line, which will automatically mute it on transmit.
Basic instructions are given for installing the PAT as an IF Panoramic Adaptor Tap – used in this
mode your SDR must be tuned to the 1
tuning of your rig – however, the displayed frequency will be that of the IF, not the radio.
Because the connection point on the IC718 is after the IF filter, the bandwidth available to
display is restricted by the filter.
PAT Install 718
st
IF of the radio, and then your display will track the

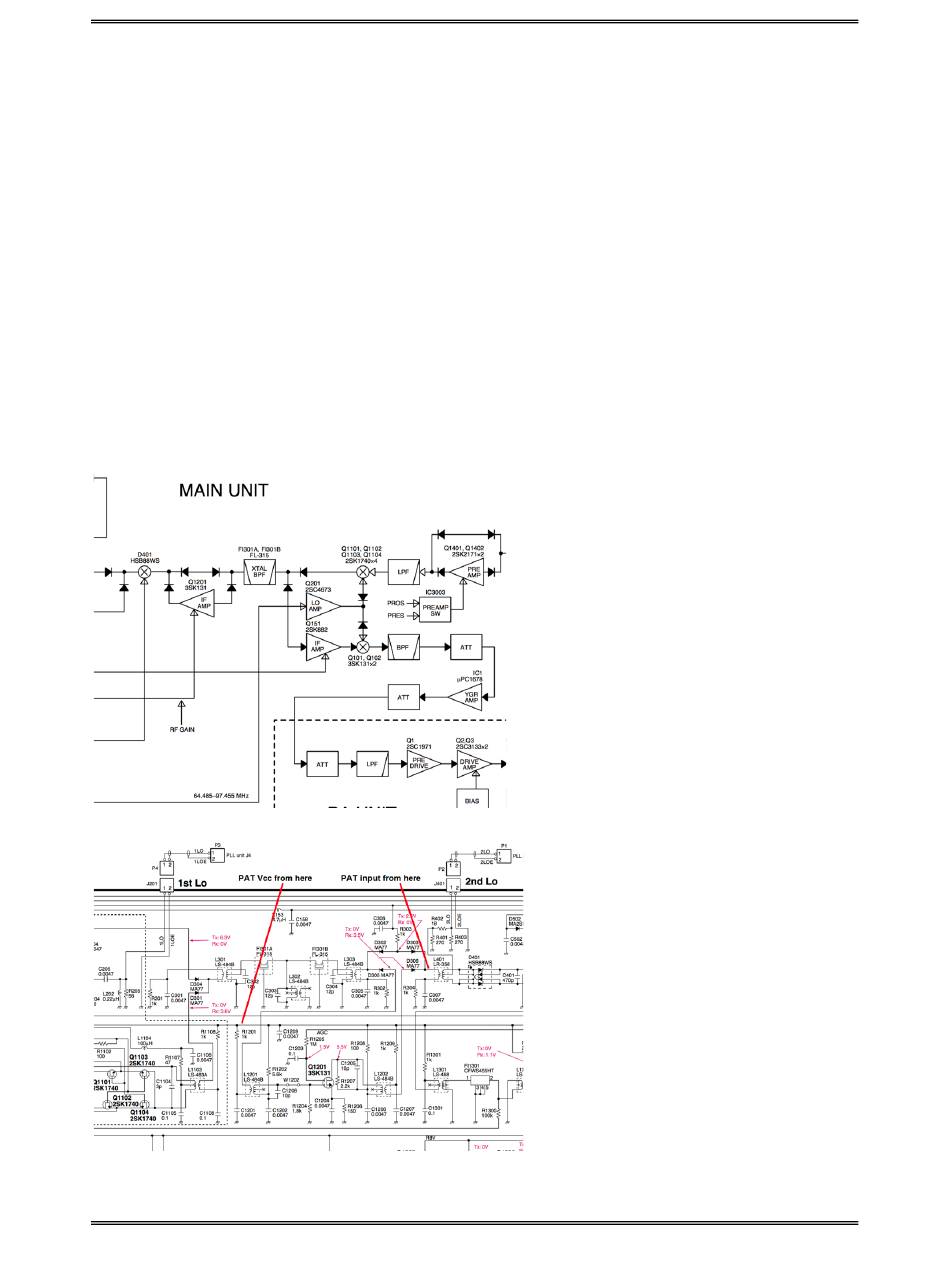

In the block diagram to the left, the PAT
input signal will be picked up just before
D401, the second mixer.
There are no convenient test points
provided by ICOM, so the signal and
power must be picked up directly from the
Main circuit PCB.
The PAT output can be brought out by
either a socket mounted in one of the
ventilation slots of the rear panel, or by a
flying lead with a free plug on the end –
this latter method is easier.
The circuit diagram to the left shows the
pick up point for the PAT input and the
connection point for the Vcc power,
taken from the R8V line. In practice,
this measures about 6.9V on Rx and 0V
on Tx.
