Summary of Contents for Y.I.C. TECHNOLOGIES EMScannerR

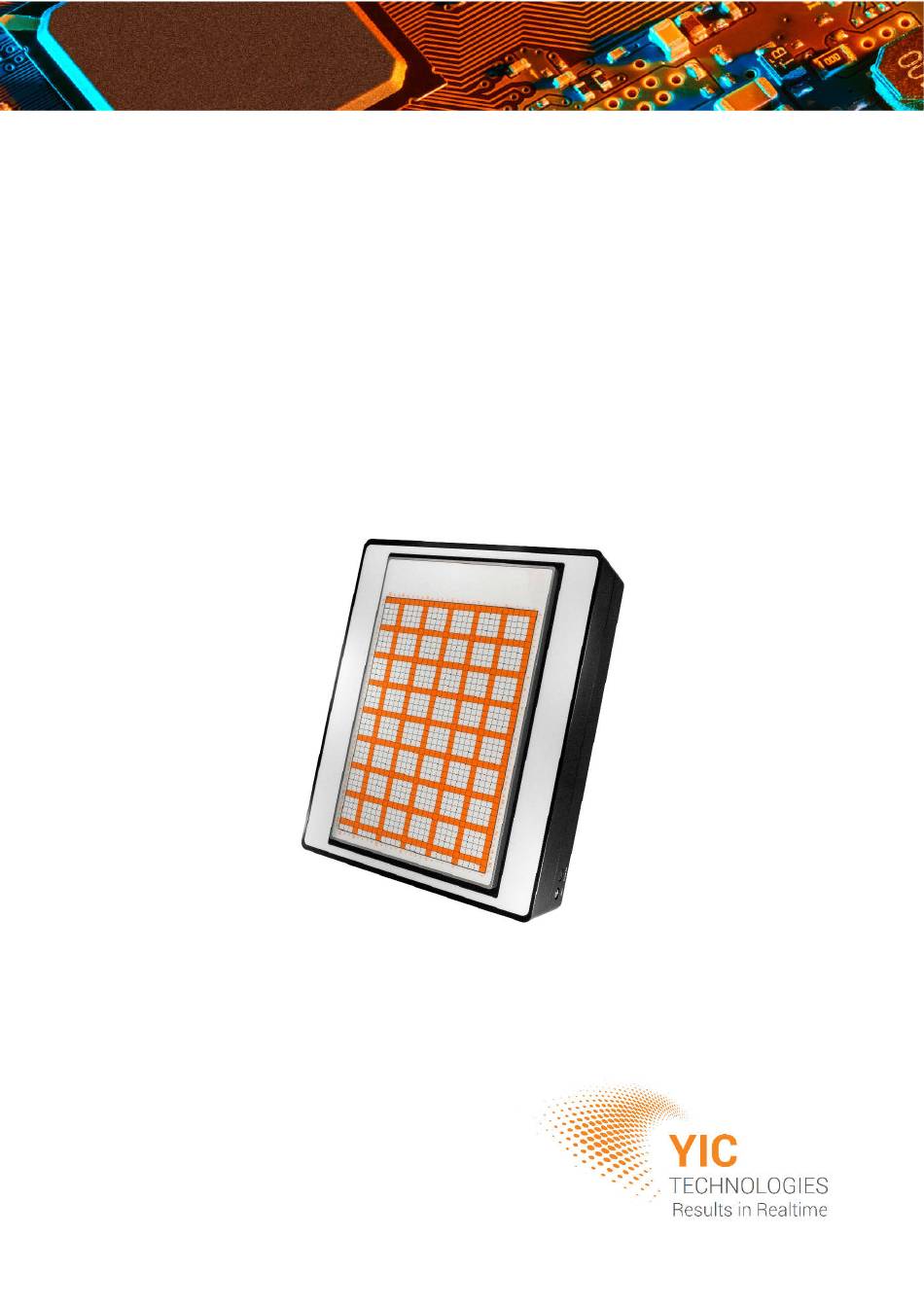

- Page 1 EMScannerR Setup Guide V0.9 18052020...
- Page 2 Disclaimer Warranty The material contained in this user manual is provided “as is” and is subject to being changed, without notice, in future editions. Further to the maximum extent permitted by applicable law, YIC Technologies disclaims all warranties, either expressed or implied, with regard to this user manual and any information contained herein, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Components and Connection Overview Scanner board EMScannerR Adapter The adapter controls the EMScanner RF SMA to type N It is referred as the RF cable in this coaxial cable manual. It connects the scanner to the spectrum analyser and has a SMA...
- Page 4 Installation and Hardware Setup 1. Install latest version of Keysight IO Click here to open the website to download the latest version. On the website click on the Download button and follow the steps. 2. Install the software application Install the EMScanner software by clicking on the Setup application icon. The application must always be installed on the C: drive.
- Page 5 1. Connect the SMB connector to the Adapter and the BNC connector to the external trigger port on the rear panel of the spectrum analyser 2. Connect the B-end of the USB cable to the USB port on the Adaptor and A-end to any USB port on the computer.
- Page 6 Technical Support To help us provide fast and seamless technical support, kindly gather the following information and contact Technical Support as instructed further below: 1. Serial number of your unit. 2. Software and firmware versions: 3. Windows OS information 4. Keysight IO version 5.
