Summary of Contents for SMART-Workshop Smart Tire Truer

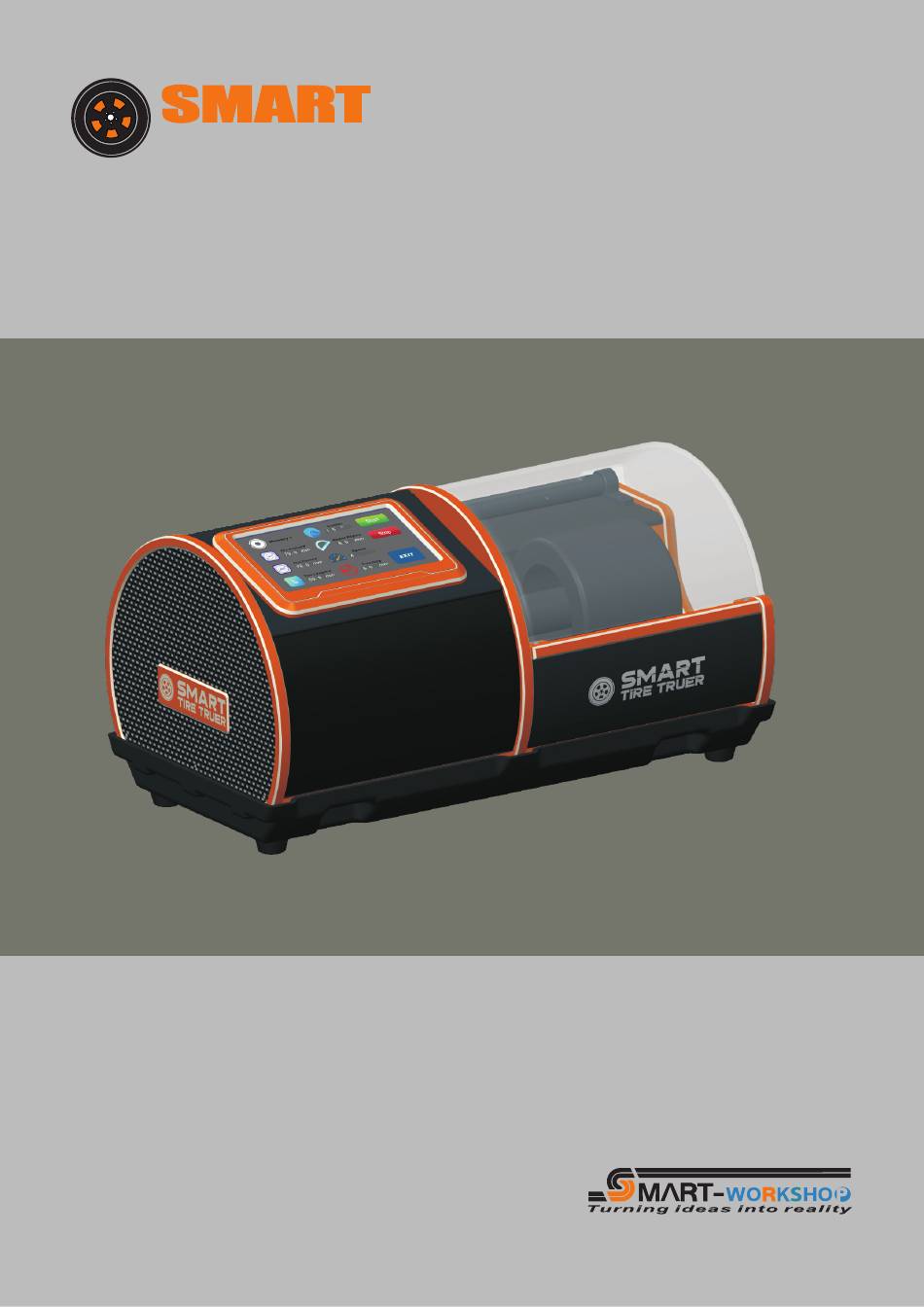

- Page 1 TIRE TRUER Service Manual Design and Manufacturer by SMART-Workshop WWW.smart-workshop.net...
- Page 3 Click FACTORY SETTING icon to enter factory setting page. 1.1 Factory setting page required password to enter. **** Please key in password 1.2 After click the KEY icon the white cursor will show at below of the rectangle. Please key in password After that, key in the password (1234) to enter the page.
- Page 4 1 4.4 Below is the method of changing cutting bit. 1 4.4 Enter to the manual mode to move the cutting bit block to center. X movement 1 4.4 Use 2.5mm allen key to loosen up the screw. After that put the laser a side. Power off the main power of the truer before taking out the cutting 1 4.4 bit.
- Page 5 1.5 Click XY-HOME icon to enter the calibration page. XY-HOME OFF SET Y: 0.0 XY-HOME OFF SET HOME EXIT 1.5.1 After entering the calibration page you must click the HOME icon to move the cutting bit block back to the home position. HOME 1.5.2 Using the four direction arrow to move the right side of cutting bit near to the alignment block.
- Page 6 1.8 Please use some lubricating oil to protect the screw shaft. 1.8.1 Unscrew the right side carbon fibre plate and aluminum plate. 1.8.2 Unscrew the rear cover. Use some lubricating oil for the X screw shaft. 1.8.3 Use 2.5 allen key to move the cutting bit forward. After you see the Y screw shaft, please apply some lubricating oil on it.
- Page 7 MEMO Page 1...
- Page 8 MODEL TR-323 TIRE TRUER Design and Manufacturer by SMART-Workshop www.smart-workshop net...
