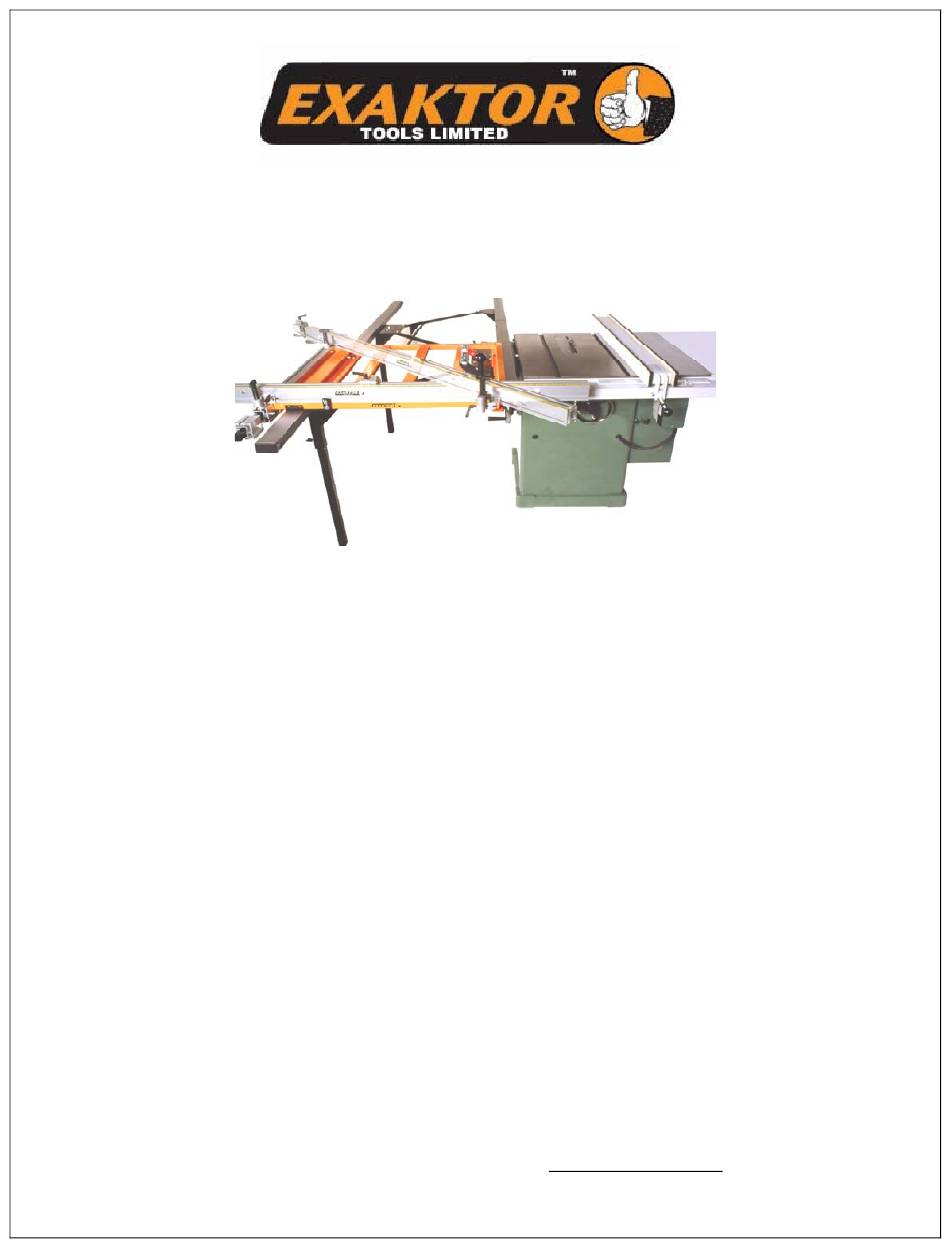

Thank you for choosing an EXAKTOR
upgrade for contractor and cabinet-style table saws whose owners expect accuracy with every table saw cut made.
The benefits of you owning an EXAKTOR
•
Quick Release Bracket for removal and/or attachment of the table to other machines.
•
Toggle Hold-Down Clamp to hold work down on the table and against the fence.
•
Two movable Work Stops for making repetitive cuts that are accurate every time.
•
Two telescopic Extensions and a Stainless Steel Panel provide support for your larger panels.
•
Inserts can be installed in the top of the table as additional support for shorter work pieces.
•
Optional Outboard Roller for ease of sliding your work onto the table.
•
Sealed Bearings that run on Stainless Steel Guide Rails for smooth table travel.
•
Steel Frame and Legs have baked-on powder coat paint surface for durability.
•
Workmanship and Material are guaranteed for as long as you own the Sliding Table.
Prior to installation of the EXAKTOR
yourself with the parts that are used in the assembly of the sliding table. If you have questions or if you feel there
are parts of this manual that need clarification, you are encouraged to let us know.
326 Watline Avenue
Mississauga, Ontario L4Z 1X2
Tel: 905-568-4459
Fax: 905-568-4059
EX40 & EX60
SLIDING TABLES
®
Sliding Table. This Sliding Table has been designed to function as a perfect
®
Sliding Table are:
®
Sliding Table please take the time to read this manual and then familiarize
You can contact EXAKTOR Tools Ltd
Canada
210 South Eighth Street
Lewiston, New York 14092
USA
Tel: 800-387-9789
info.exaktortools.com
1/11/2005
1
Advertisement
Summary of Contents for EXAKTOR EX40
- Page 1 Sliding Table. This Sliding Table has been designed to function as a perfect upgrade for contractor and cabinet-style table saws whose owners expect accuracy with every table saw cut made. ® The benefits of you owning an EXAKTOR Sliding Table are: •...
- Page 2 16. If there is something that you do not understand, do not operate the machine! Ask for help first. These safety rules do not cover every situation in a workshop. ® Consider your conditions when setting up and using your EXAKTOR Sliding Table. WARNING: NO PART OF THIS MANUAL MAY BE REPRODUCED IN ANY ®...
- Page 3 Table Saw Installation: There are two possible ways must be at 90° to the table surface of the machine. If to install the EX40 Sliding Table for use with a table the edge of the machine’s table is not square, the saw.
- Page 4 1/11/2005...
- Page 5 1/11/2005 Step 4A Fig. 1A Match the four holes in the Rear Outer Leg Mount (#6) with the four holes in the underside of the Outer Rail Tube (#2). Fasten using ¼-28x½” Hex Head Bolts (#10). Fasten the Front Outer Leg Mount (#5) to the underside of the Outer Rail Tube with three Hex Head Bolts (#10).
- Page 6 90° to the table surface of the machine. If Table Saw Installation: There are two possible ways the edge of the machine’s table is not square, the to install the EX40 Sliding Table for use with a table Mounting Plate must be shimmed. saw.
- Page 7 1/11/2005...
- Page 8 1/11/2005 Step 4B Fig. 1B Match the four holes in the Rear Outer Leg Mount (#6) with the four holes in the underside of the Outer Rail Tube (#2). Fasten using ¼-28 x ½” Hex Head Bolts (#10). Fasten the Front Outer Leg Mount (#5) to the underside of the Outer Rail Tube with three ¼“...
- Page 9 1/11/2005 Table Assembly For EX40 & EX60 Step 7 Fig. 2 Step 10 Fig. 2 The Lower Lip (#21) is attached to the inboard edge Thread a Stop (#18) through the Stop Tab (#26) and of the Table (#20) using two ¼-20 x 1¼” Socket head into the Wing Nut (#35).
- Page 10 1/11/2005...
- Page 11 1/11/2005...
- Page 12 1/11/2005 Step 13 Adjustments Slide the Table onto the end of the two Guide Rails, The Inboard Horizontal Bearings (#60B) are factory ensuring that the lower Lip (#21) is hooked under the installed using ¼-20 x 1” Button Head Bolts (#67), Inner Rail Tube (#1) and the Lower Bearings (#17) Bearing Spacers (#61) and Eccentric Adjusters (#62).
- Page 13 1/11/2005 Fence Assembly for EX40 & EX60 the top surface of the Angle Adjustment Rail (#23). Step 16 Fig. 4 Snug up the T-Locking Knob (#44). Assemble Locking Lever (#36), Washers (#19 & #31), ¼-20 x ¾” Hex Head Bolt (#29), and T-nut (#48) to a Fence Mount (#43).
- Page 14 1/11/2005...
- Page 15 1/11/2005 20 x ¾” Hex Head Bolts (#29C), which are threaded Set-up: into the backside of the Fence (#40). Getting the Sliding Table level with the top of the saw table. NOTE: When you change saw blades, the thickness of the blade can vary from one saw With the Fence installed at the front edge of the blade to the next.
- Page 16 ********************************************************* The sides of the cross members in the EX40 and EX60 Sliding Tables have ledges that can be used to support shop made inserts. These will prove to be helpful when it is desirable to have part, or all, of the top of the table filled in.
- Page 17 ST05 Front Outer Leg Mount ST43 Fence Mount ST06 Rear Outer Leg Mount ST44 T-Knob ¼-20 ST07 Leg (2 for EX40, 3 for EX60) ST45 Carriage Bolt ¼-20 x 3½” ST08 Brace (2 for EX40, 3 for EX60) ST46 Extension Block...
- Page 18 1/11/2005 Sliding Table Accessories Work Stop Assembly ® EXAKTOR Sliding Tables are shipped with parts to assemble two Work Stops. Wave Washer ⅜” ST33 ST19 Flat Washer ST48 T-Nut ST49 Work Stop Finger ST50 Work Stop Mount ST51 Shoulder Bolt 3/8-18 x 2”...
- Page 19 1/11/2005 Sliding Table Accessories Panel Support Assembly ® EXAKTOR Sliding Tables are shipped with parts to assemble one Panel Support, Part # Description ST48 T-Nut ST81 Thumb Screw ST31 Flat Washer ¼” ST83 Support Plate Insert the threaded stub of Thumb Screw (#81) though a ¼”...
- Page 20 1/11/2005 Sliding Table Accessories Outboard Roller Assembly The Outboard Roller is an optional accessory for the ® EXAKTOR Sliding Table. Part # Description Qty. ST76 Roller Bracket ST77 Roller Support ST78 Roller ST80 Hex Head Bolt 1/4-20 x 1/2” ST65...
- Page 21 ® EXAKTOR Numbers The Exaktor Solutions Center is our one-stop resource for all of your Exaktor tool needs. You can download the latest Assembly Manuals, read FAQ’s and troubleshooting tips. Visit us at: http://solutions.exaktortools.com For Customer Service: 1-800-597-1343 (Voice –...
- Page 22 Product properly packaged, freight prepaid, to Exaktor’s Service Center together with a photocopy of your bill of sale. What Exaktor will do: Exaktor will evaluate your report of a possible defect to determine whether a defect exists, and if it does exist, Exaktor will repair or (at Exaktor’s option) replace the Product with a product that performs the same functions and...
