- Page 1 P R O F E S S I O N A L R O O M S T E R I L I Z E R S MANUAL MODELS: VS-450, VS-600, VS-900, OPERATIONS VS-1200 ,VS-1500 AND VS-1800. Issue number 08042020...
-
Page 3: Table Of Contents
Table of Contents Notes for service technicians Notes for users Important safety instructions Product features Purpose Product description Operation principle:_ Packing contents: Operation 15 Operating the device Control panel Remote control Starting the device and selecting the operating mode Filtration mode UV-C disinfection mode O3 + UV-C sterilization mode Compliance with the ozone concentration limits... -
Page 4: Notes For Service Technicians
Notes for service technicians The following service instructions are intended exclusively for qualified service personnel. To reduce the risk of danger (electric shock, UV-C exposure, exposure to high ozone concentrations), persons without appropriate qualifications or without appropriate training should not perform any servicing other than as described below. -
Page 5: Notes For Users
Notes for users 1) The STERYLIS room steriliser can emit health hazardous UV-C radiation and generate high ozone concentrations. For this reason, please read these operating instructions very carefully, especially the chapter on safety! 2) Keep this manual and store it in a safe place. -
Page 6: Important Safety Instructions
Important safety instructions There are several warning stickers on the housing of the device, the contents of which are also present- ed below. It is imperative that you comply with them! Failure to comply with the information contained therein may lead to a risk to the health or life of the user or other persons, animals and living organisms, and may lead to the failure of the device. - Page 7 The device is designed to sterilise rooms by generating ozone in a concentration that may pose a threat to the health and life of humans and other living organisms. Despite the safety principles during the operation of the product as described in the following chapters, it is essential to read the information below on possible effects of ozone and on first aid in case of exposure to a hazardous concentration of the substance.
- Page 8 Concentration [ppm] The graph on the left shows very clearly what effects ozone poisoning can have on humans depending on their concentration and expo- Lethal area sure time. The graph shows: asymptomatic area (at such concentrations and such expo- sure times there should be no symptoms of ozone poisoning), non-toxic area (possible Permanently toxic area light, life-threatening symptoms), transiently...
- Page 9 Ozone sensors located on the outside of the steriliser allow the current concentration of ozone in the room to be tested, so that the controller can determine the required ozone time and control the individual ozone generators accordingly to maintain the correct ozone concentration during steril- isation.
- Page 10 • When the ozoning of the room is complete, it must be thoroughly ventilated for at least 30 minutes. • Ozone is a heavier gas than air, after switching off the circulating fan of the steriliser, STERYLIS tends to settle in the recesses of the ground and migrate by the floor.
-
Page 11: Product Features

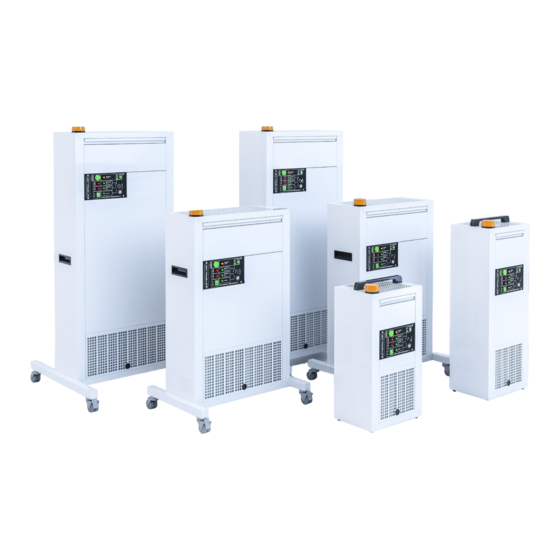

This value is calculated based on the cubic capacity of the room and on the current concentration of ozone in the room (the device is equipped with two ozone sensors). The device is available in 6 versions whose technical parameters are presented in the table: Name STERYLIS STERYLIS STERYLIS Model... -
Page 12: Operation Principle
Name STERYLIS STERYLIS STERYLIS Model VS - 1200 VS - 1500 VS - 1800 Rated voltage 230 V 230 V 230 V Frequency 50 Hz 50 Hz 50 Hz Rated power* 1330 W 1810 W 2210 W Rated current* 5,8 A... - Page 13 UV light emissions below 240 nm to be blocked inside the lamp. Thus, in disinfection mode, the STERYLIS steriliser does not produce any harmful ozone at all and is completely safe for the people around it. In addition, the corresponding wavelengths produced by UV-C light sources contribute to the acceleration of the decomposition of O3 particles into bi-atomic oxygen, reducing the ozone process length.
-
Page 14: Packing Contents
Packing contents A user who has purchased any model of STERYLIS room steriliser is included in the set: 1) Complete room steriliser ready for use 2) Remote control (OPTION) 3) Operating Manual 4) Declarations of conformity in Polish and English 5) Additional pre-filter 6) Warning sign "WARNING! NO ENTRY! STERILISATION IN PROGRESS”... -
Page 15: Operation
OPERATION The device should be operated in rooms whose parameters are consistent with the technical character- istics of the device. In addition, they must be operated in accordance with the information contained in the chapters: "MAINTENANCE" and "SAFETY". Operating the device To operate the room steriliser, use the control panel on the front of the device. -
Page 16: Control Panel
Control panel The signal lamp signals a user safe ozone concentration in the air after the ozone cycle. Leds signaling individual modes of unit operation Button to start the device in sterilisation-disinfection mode Alarm LED for operation or failure of the UV-C sterilisation lamp system Alarm LED for operation or failure of the ozone generator system Main device switch Operation mode selection knob... -
Page 17: Remote Control
Remote control STERYLIS room sterilisers are equipped with remote controls. The remote controls are equipped with two buttons: Green START button - has the same function as the START button on the control panel. If you hold it down for 10 seconds with the mode selector knob set at the same time, the O3 + UV-C sterilization mode will start. -
Page 18: Starting The Device And Selecting The Operating Mode
UV-C radiation with a wavelength of 253.7 nm and power depending on the size of the device (see technical data). UV-C radiation irreversibly inactivates viruses, bacteria, fungi, moulds and yeasts. The Sterylis steriliser has been designed in such a way that people can stay inside when the device is in disinfection mode with the UV-C light source switched on. -
Page 19: O3 + Uv-C Sterilization Mode
O3 + UV-C sterilization mode In sterilisation mode fan(s), filters and ozone generators are operating. This mode is used to sterilise the air and surfaces that come into contact with the air by generating ozone evenly throughout the room. The capacity of the ozone generator varies depending on the version (see technical data). This mode requires special precautions to be taken by the user (see: chapter on safety in use). -
Page 20: Uv-C Disinfection Mode (Silent)
This results in a significantly reduced sound power level of the steriliser. Working time counters The STERYLIS room steriliser is equipped with three operating time counters. The first one is a general working time counter, counting the working hours of the device regardless of the operating mode. The second counter counts the operating time of the pre- and carbon filters to signal the need to replace them. -
Page 21: Instructions For Resetting The Filter Operating Time Counter / Deleting The Filter Replacement Alarm
Instructions for resetting the filter operating time counter / deleting the filter re- placement alarm Step 1. Set the mode selector knob to "UV-C - SILENT MODE". Step 2. Hold down the "START" button for 30 seconds. Step 3. The green "O3 concentration safe" light flashed once. -
Page 22: Instructions For Resetting The Uv Lamp Counter / Resetting The Lamp Replacement Alarm
Instructions for resetting the UV lamp counter / resetting the lamp replacement alarm Step 1. Set the mode selector knob to "UV-C - STANDARD MODE". Step 2. Hold down the "START" button for 30 seconds. Step 3. The green "O3 concentration safe" light flashed twice. -
Page 23: Malfunctions And Other Indications
Malfunctions and other indications STERYLIS is a device with a very high level of self-diagnosis. In case of various types of malfunctions it informs the user about them by means of indications on the control panel or by means of the warning beacon. -
Page 24: Testing Of Control Lights
OTHER INDICATIONS Indication Meaning Two failure LEDs flashing alternately (every 1 Achieving 500 hours of filter operation second) Flashing of the UV lamp failure LED once per Achieving 9000 hours of UV lamp operation second Beacon warning lights The device works in sterilisation mode Confirmation of the start of the device in sterili- Orange LED on the control panel sation mode... -
Page 25: Maintenance
Maintenance Recommendations for maintenance The product is intended for cleaning and sterilising rooms. Depending on the mode of operation, it can work as a standard air purifier, an air purifier extended by sterilisation lamps with UV-C light source and as an ozoniser. The maximum cubic capacity of the room in which the product can work is given in the technical characteristics of the product for each model. -
Page 26: Replacing The Uv-C Radiators
The expected lifetime of the generators is very high and significantly exceeds the lifetime of the UV-C radiators. For this reason, their replacement due to exceeding the service life is very rare. Caution! The replacement of ozone generators in STERYLIS sterilisers may only be carried out by the manufacturer's service or another authorised service centre. -
Page 27: Procedure For Carrying Out The Ozoning Process
Procedure for carrying out the ozoning process The process of ozoning the room should be carried out, if possible, in accordance with the following steps. Before starting to ozone, read the rest of this manual and meet all the safety requirements described at the beginning of this document. - Page 28 12) The ozoning process will be completed when the green safety ozone LED comes on. It is possible not to reach the threshold concentration of ozone in a room (2 ppm) if its volume is too high. In this case, after 2 hours from the start of the ozoning process, the device will display an error, go to the waiting phase and then after 30 minutes go to ozone neutralisation with UV lamps.
-
Page 29: Declaration Of Conformity
Declaration of conformity This device complies with the relevant directives and standards in force in the European Union, provided that the device is operated as intended and in accordance with this manual. The product complies with the following directives: • Directive 2014/35/EU, on the harmonisation of the laws of Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits •... -
Page 30: Warranty And Service
• Serial number • Date of manufacture • Device name and model IGLOO SP. Z O.O. STARY WIŚNICZ 289 32-720 NOWY WIŚNICZ Device name POLAND NAME STERYLIS Device model MODEL VS500 YEAR OF SERIAL NUMBER MANUFACTRE 2020 Date of manufacture...
