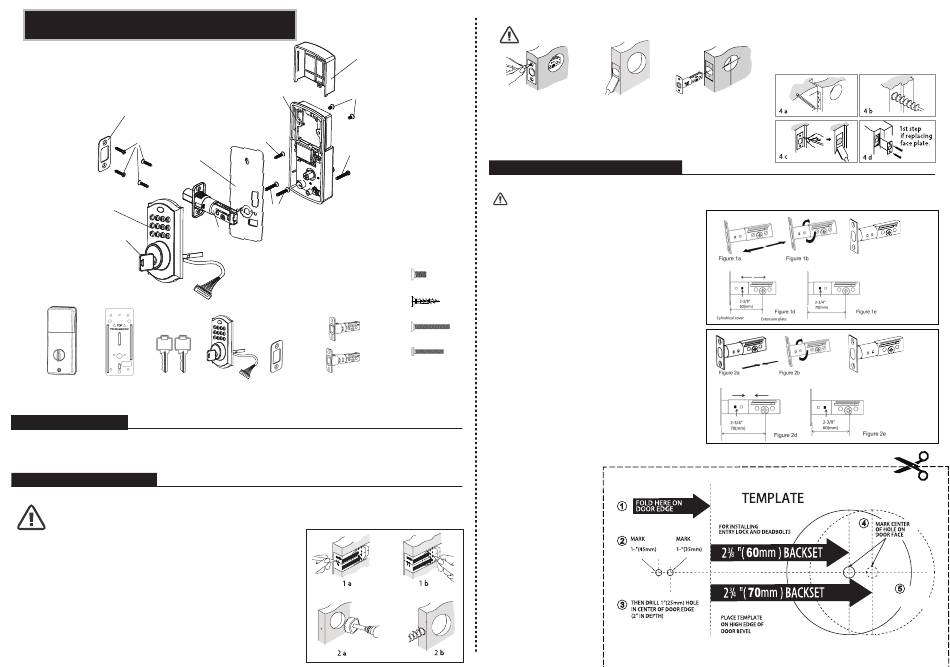

ShowMojo MojoLock Installation Instructions

Installation Instructions
MojoLock
Strike Plate
3/4" (19mm) screws (4ea.)
Mounting Plate
Touch Keypad
Assembly
Key
Interior Assembly Mounting Plate Entry Keys (2ea.)
1. Tools Required
Tools required for installation on doors that require drilling:
• Drill • Pencil • 1" (25mm) Drill Bit
• Tape Measure • 2-1/8" (54mm) Drill Hole Saw • 1/16" (2mm) Drill Bit
Lorem ipsum dolor sit amet, consec
2. Drilling Hole in Door
Note:
• Please read and understand this entire manual before attempting to assemble, operate, or install.
• Do not use electric screwdriver, only hand tighten screws with a Phillips Head screwdriver.
• DO NOT OVER TIGHTEN SCREWS.
• If your door has pre-drilled holes, skip to step 3c.
1. Mark Door for Drilling
a. Start 36" from floor. Fold and apply template to high edge of door.
b. Mark center hole on door face through guide on template for 2-3/8"
(60mm) or 2-3/4" (70mm) backset.
2. Drill Holes
a. Drill 2-1/8" hole through door face as marked for lock set.
b. Drill 1" hole in center of door edge for latch.
3. Mark the Jamb Hole Location
a. Insert latch in hole, keeping it parallel to face of door. Mark outline and
remove latch.
b. Chisel 1/8" deep or until latch face is flush with door edge.
c. Insert latch and tighten screws.
Battery Cover
Interior Assembly
5/16" (8mm) screws (2ea.)
Optional 3/4" (19mm)
screw (1ea.)
1" (25mm) screw (1ea.)
1-5/16" (33mm) screws (2ea.)
Latch
5/16" (8mm) screws (2ea.)
3/4" (19mm) screws (5ea.)
1-5/16" (33mm) screws (2ea.)
Keypad
Deadbolt Latch Set (Adjustable)
Strike Plate
Assembly
2-3/8" (60mm) to 2-3/4" (70mm)
• Chisel • Philips Head Screwdriver
• Hammer
Note: To drive in latch, drill hole size indicated on template and press latch until it is flush with door edge.
3 a
4. Install Deadbolt Strike Plate into Door Frame
Note: If hole is pre-drilled, skip to step 4d.
a. Mark template from edge of jamb and locate strike opening.
b. Drill 1" hole 1-3/16" deep in door jamb on center line of screws.
c. Outline outside edges of strike. Chisel 1/6" deep for strike or until flush.
d. Install strike and tighten screws. Use 3/4" (19mm) screws.
Lorem ipsum dolor sit amet, consectetuer adipi
3. Adjusting Deadbolt Latch Set
Note: Deadbolt Latch Set is shipped with the backset set at 2-3/8" (60mm). Backset is the distance between edge
of the door and the center of the lock. Measure the backset on door to confirm before installation.
Do not extend Cylindrical Cover past 2-3/4" (70mm)
1. To convert FROM 2-3/8" (60mm) backset
TO 2-3/4" (70mm) backset:
a. Hold latch with numbers facing forward and thumb
pressing on the bolt (Figure 1a).
b. Rotate the cylinder cover clockwise (Figure 1b).
c. Pull and twist the extension plate all the way
out (Figure 1c).
d. Rotate the cylinder cover counter-clockwise so that
the marking aligns with the 2-3/4" (70mm) position
indicator (Figure 1d).
2. To convert FROM 2-3/4" (70mm) backset
TO 2-3/8" (60mm) backset:
1" (25mm) screw (1ea.)
a. Hold latch with numbers facing forward and thumb
pressing on the bolt (Figure 2a).
b. Rotate the cylinder cover clockwise (Figure 2b).
c. Push and twist the extension plate all the way
in (Figure 2c).
d. Rotate the cylinder cover counter-clockwise so that
the marking aligns with the 2-3/8" (60mm) position
indicator (Figure 2d).
1st step if hole is predrilled
3 b 3 c
FOR FOR
3 3
8
4
DOOR
DOOR
IMPORTANT!
Figure 1c
Your latch is now set
2-3/4" (70mm) backset
Figure 2c
Your latch is now set
2-3/8" (60mm) backset
DRILL
2-1/8"(54mm)
HOLE
