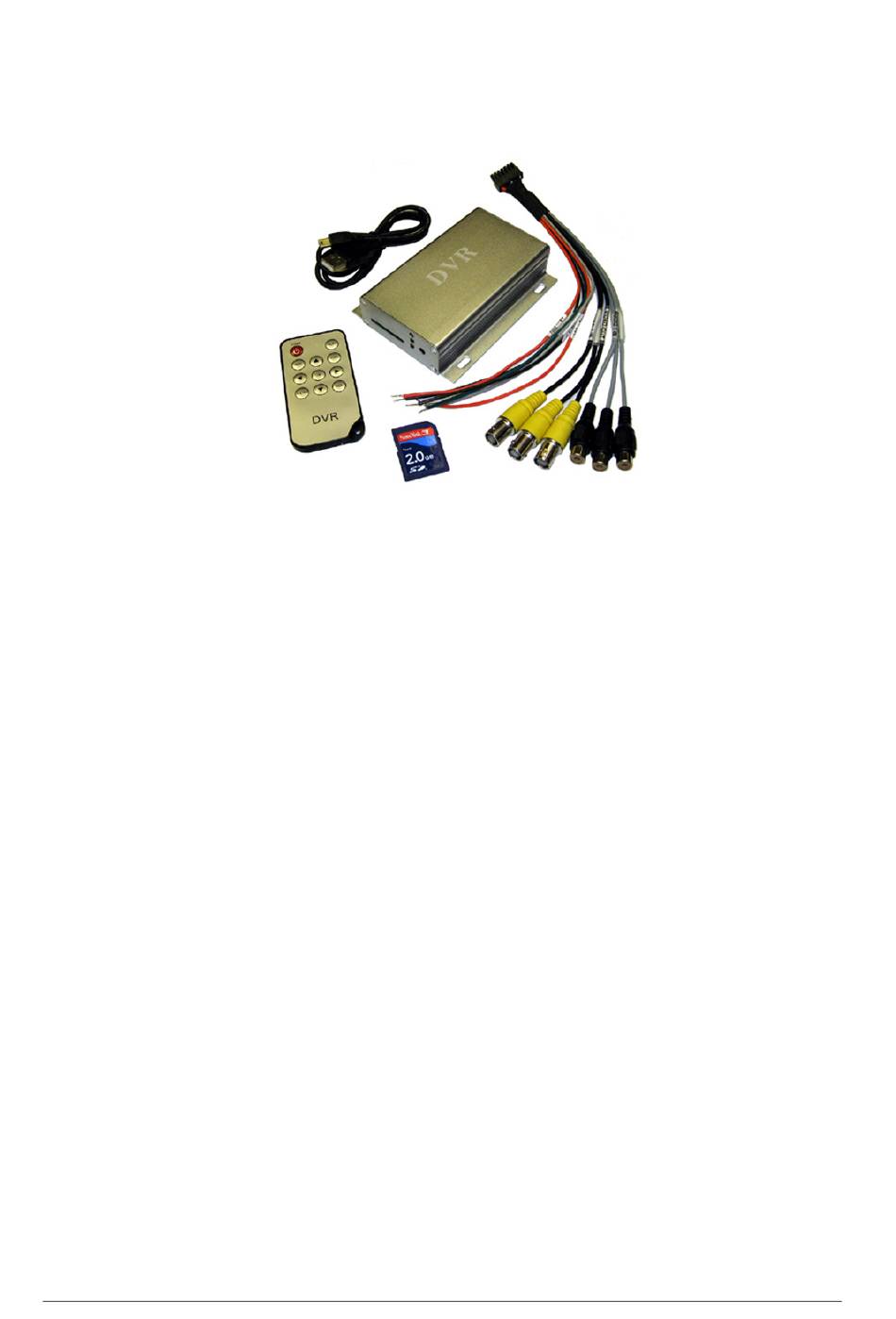

VZ INRS0101 – Mini Digital Video Recorder
Congratulations on purchasing your Mini DVR, which will give a lifetime of reliable service if cared
for and used correctly. It incorporates many advanced features such as; dual camera connectivity,
alarm inputs and outputs, event or motion detection and more.
Getting the best out of your DVR:
To get the best out of your DVR and ensure its correct use, please read this "Quick Set-up Guide" (which is
designed to make the set-up quick and easy for users, who just want to record Video and audio from a single
connected camera), or the "Full User Manual", before setting up or operating the unit.
Note:
•
The Unit Must be Switched Off, before inserting or removing the SD card
•
Turn off the power when the unit is not in use
•
Do not connect the unit to a PC, while it is in recording / operating mode,
•
Do not attempt to open or carry out repairs to the unit (in the event of failure of the unit, please
contact your supplier)
•
Avoid placing the unit in direct sunshine – best working temperature "0" to "40" C
•
Connect the unit to a suitable power supply: 5v to 20v DC
•
Use quality SD Cards, i.e. Transcend or Sandisk (standard SD cards are fine, you don't need to use
expensive high speed cards such as the Sandisk Extreme range)
•
Do not use thinners, chemical solvents, etc, to clean the unit
IIVZINRS0101-Quick-Setup.doc
Quick Set-up Guide
Page 1 of 5
Advertisement
Table of Contents
Summary of Contents for Insight Security VZ INRS0101
- Page 1 VZ INRS0101 – Mini Digital Video Recorder Quick Set-up Guide Congratulations on purchasing your Mini DVR, which will give a lifetime of reliable service if cared for and used correctly. It incorporates many advanced features such as; dual camera connectivity, alarm inputs and outputs, event or motion detection and more.
- Page 2 Easy Set Up Guide for Single Camera Recording; Connecting your system components; Figure 1 Schematic of Connection Cable All connections to the DVR are made via the convenient plug in wiring loom (see figure 1 schematic above). The wiring loom itself, plugs into the secure connection socket on the rear of the DVR. Connecting the camera Connect the camera to the wiring loom (see fig.1 above).
- Page 3 Powering up the system and Accessing the Main Menu Powering On Press the Power button on the remote control to power the system up (remember the SD Card should be inserted before you power up) – a welcome message appears Access Main Menu Press the Menu button on the remote control to access the Main Menu >...
- Page 4 Select Recorder Setting (from the main menu) …then select and action each menu heading as shown below; Menu Heading Select Select Comments / Info Channel Setting > Channel Auto Switch > Off Recording Type > Video Motion Detect > Off Select “Off”...
- Page 5 Using a slower frame rate Frame Rate > 25 FPS (i.e.15 FPS), will increase the length of movie time that can be recorded on to the SD card, but movements will look jerky (like an old Keystone Cops movie), when played back. Note: this controls the size of Resolution >...
