GuaRdboX
IOM
(
Installation, Operating & Maintenance Manual)
1.
Introduction:
This instruction manual contains important information regarding the safety instructions, installation, operation, maintenance and storage of
the "Guardbox" limit switch boxes.
The limit switch boxes may only be mounted, wired and installed by qualified and trained personnel. If you require any additional
information or assistance, please contact the manufacturer or its representative. All contacts are listed in the footnote together with the QR
code for an easy access to the complete product documentation. Please read these instructions carefully before proceeding with the limit
switch box installation and save them for future reference.
2. Product description:

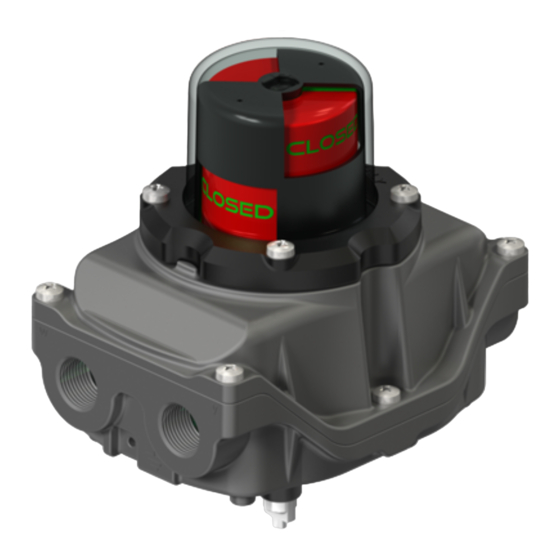

Guardbox Limit switch boxes are electromechanical devices ideal for monitoring the remote operation of industrial valves in plants,
designed and manufactured for demanding applications in extreme environments and where there are requested high standards for safety
and reliability products. The Guardbox devices are used to control the position of the valve and provide high accuracy electrical feedback
signal of valve status to plant control systems. Guardbox devices are equipped in standard configuration with a 3D high visibility position
indicator that represent a true indication of valve position. The indicator is visible on all 4 sides and is fully adjustable on 360° without
disassembly. Guardbox limit switch boxes are built to be installed on valves or actuators which drive the process valves from closed to
open position (Normal acting) or from open to closed position (Reverse acting) . Normal acting is considered full CW when the process
valve is closed and CCW when the process valve is open. Reverse acting is full CW when the process valve is open and CCW when the
process valve is closed.
3. Safety instructions:
Guardbox Limit switch boxes are electromechanical devices ideal for monitoring the remote operation of industrial valves in plants,
designed and manufactured for demanding applications in extreme environments and where there are requested high standards for safety
and reliability products. The Guardbox devices are used to control the position of the valve and provide high accuracy electrical feedback
signal of valve status to plant control systems.

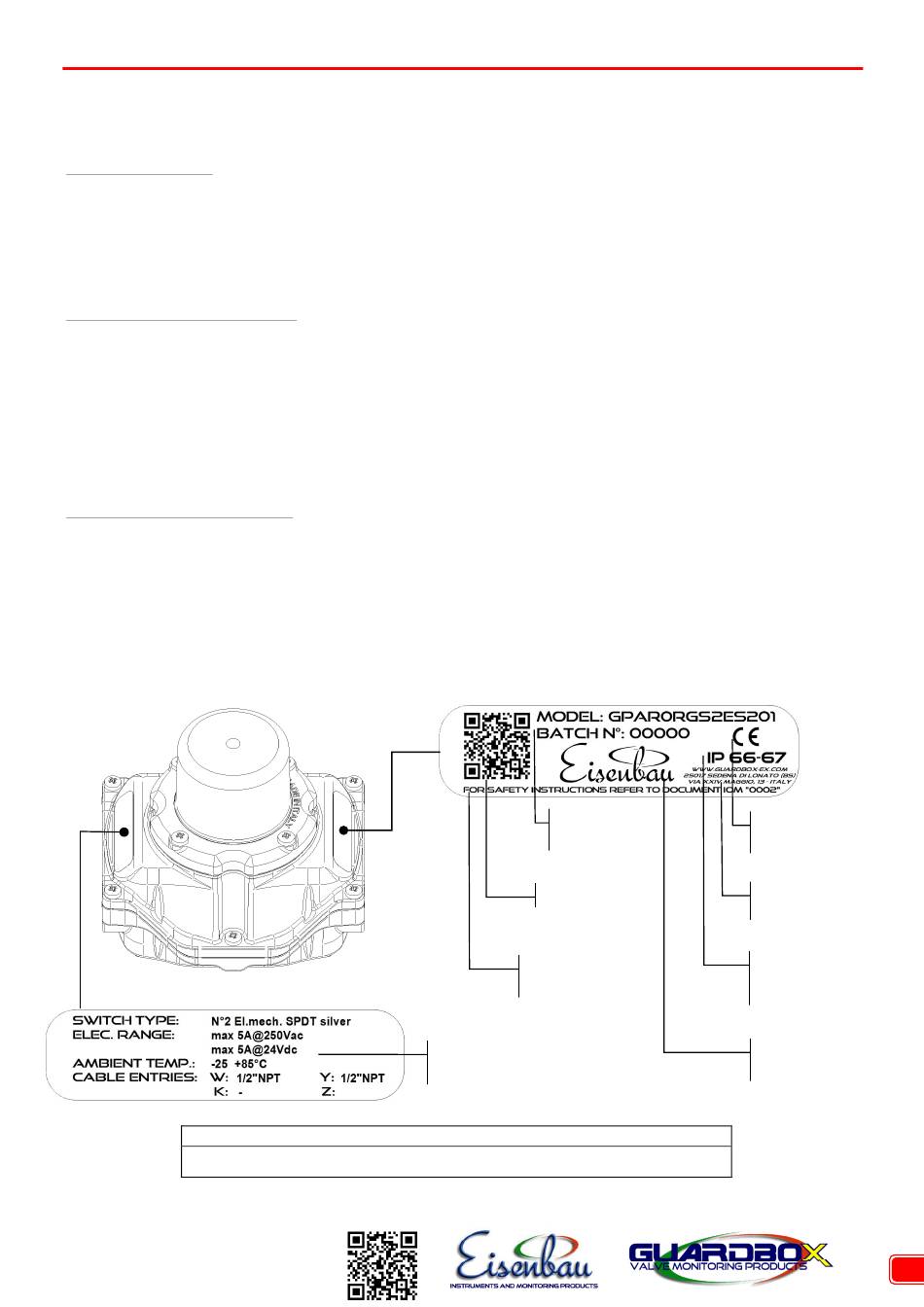

On the outside of the GP-series box cover there are two adhesive labels on which are marked all the information and references about the
manufacturer, electrical and ambient range of use of the specific configuration, product identification, together with a QR code for a quick
link and easy access to the product documentation including wiring diagram, drawings and datasheet:
Aluminium Alloy EN AB ed AC 44300 Al Si 12 (Fe) (a) or Stainless steel 316L (CF3M)
Eisenbau s.r.l. a socio unico
Via T.A:Edison, 16 20090 Cusago (MI) Italy
Phone : +390293562116 Fax: +390293567735
Guardbox production unit : Via XXIV Maggio, 13
25017 – Sedena di Lonato (BS)
Phone : +390309131240 Fax: +390309130946
GP – Equipment Marking
Product's
range of use
Enclosure material
www.eisenbau.it
GP
-
series
0002-ENG
Product
Identification
QR Code
Warning
markings
www.guardbox-ex.com
rev.2
Conformity
symbol
Manufacturer
contacts
IP-
Protection
degree
Manufacturer's
name
1
Advertisement
Table of Contents
Related Manuals for Eisenbau Guardbox GP Series
Summary of Contents for Eisenbau Guardbox GP Series
- Page 1 Enclosure material Aluminium Alloy EN AB ed AC 44300 Al Si 12 (Fe) (a) or Stainless steel 316L (CF3M) Eisenbau s.r.l. a socio unico Via T.A:Edison, 16 20090 Cusago (MI) Italy Phone : +390293562116 Fax: +390293567735 Guardbox production unit : Via XXIV Maggio, 13 25017 –...
-
Page 2: Declaration Of Conformity
Eisenbau. DECLARATION OF CONFORMITY The manufacturer Eisenbau s.r.l. herewith declare under his sole responsibility, that the limit switch boxes GP-series complies, when installed in accordance with the installation and safety instruction, with all the following norms: 1. -
Page 3: Electrical Wiring
The box has on the bottom surface a drilling according to ISO 5211, as shown in the image. Fix the proper mounting bracket (supplied in option by Eisenbau) to the box using M6 screws (6). Move the actuator to a completely “Open” or “Close” position, then align the box shaft (3) to actuator slot (7) ensuring of their correct coupling. - Page 4 (7). 7.14 Fasten the six captive screws (8) using a torque of 3,5Nm. Eisenbau s.r.l. a socio unico Via T.A:Edison, 16 20090 Cusago (MI) Italy Phone : +390293562116 Fax: +390293567735 Guardbox production unit : Via XXIV Maggio, 13 25017 –...
- Page 5 (1) is activated (2) is activated Eisenbau s.r.l. a socio unico Via T.A:Edison, 16 20090 Cusago (MI) Italy Phone : +390293562116 Fax: +390293567735 Guardbox production unit : Via XXIV Maggio, 13 25017 –...
- Page 6 (1) to desired viewing angle according to valve position. (OPEN or CLOSED appearing through indicator window). Retighten the four captive M5 screws (3) using a torque of 3,5Nm. Eisenbau s.r.l. a socio unico Via T.A:Edison, 16 20090 Cusago (MI) Italy Phone : +390293562116 Fax: +390293567735 Guardbox production unit : Via XXIV Maggio, 13 25017 –...
-
Page 7: Storage And Maintenance
Ensure safety warnings are observed during maintenance. 10.6 Eisenbau reserves the right to change or modify products without prior notice or without incurring any obligation to make some changes on products previously or subsequently sold. 10.7 All trademarks are property of their respective owners. - Page 8 GuaRdboX series Installation, Operating & Maintenance Manual) 0002-ENG rev.2 Eisenbau s.r.l. a socio unico Via T.A:Edison, 16 20090 Cusago (MI) Italy Phone : +390293562116 Fax: +390293567735 Guardbox production unit : Via XXIV Maggio, 13 25017 – Sedena di Lonato (BS) Phone : +390309131240 Fax: +390309130946 www.guardbox-ex.com...
