Etneo 202D Operation Manual

Intelligent lead free soldering station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Tel +39 0321697200 - Fax +39 0321 688515 - Email:

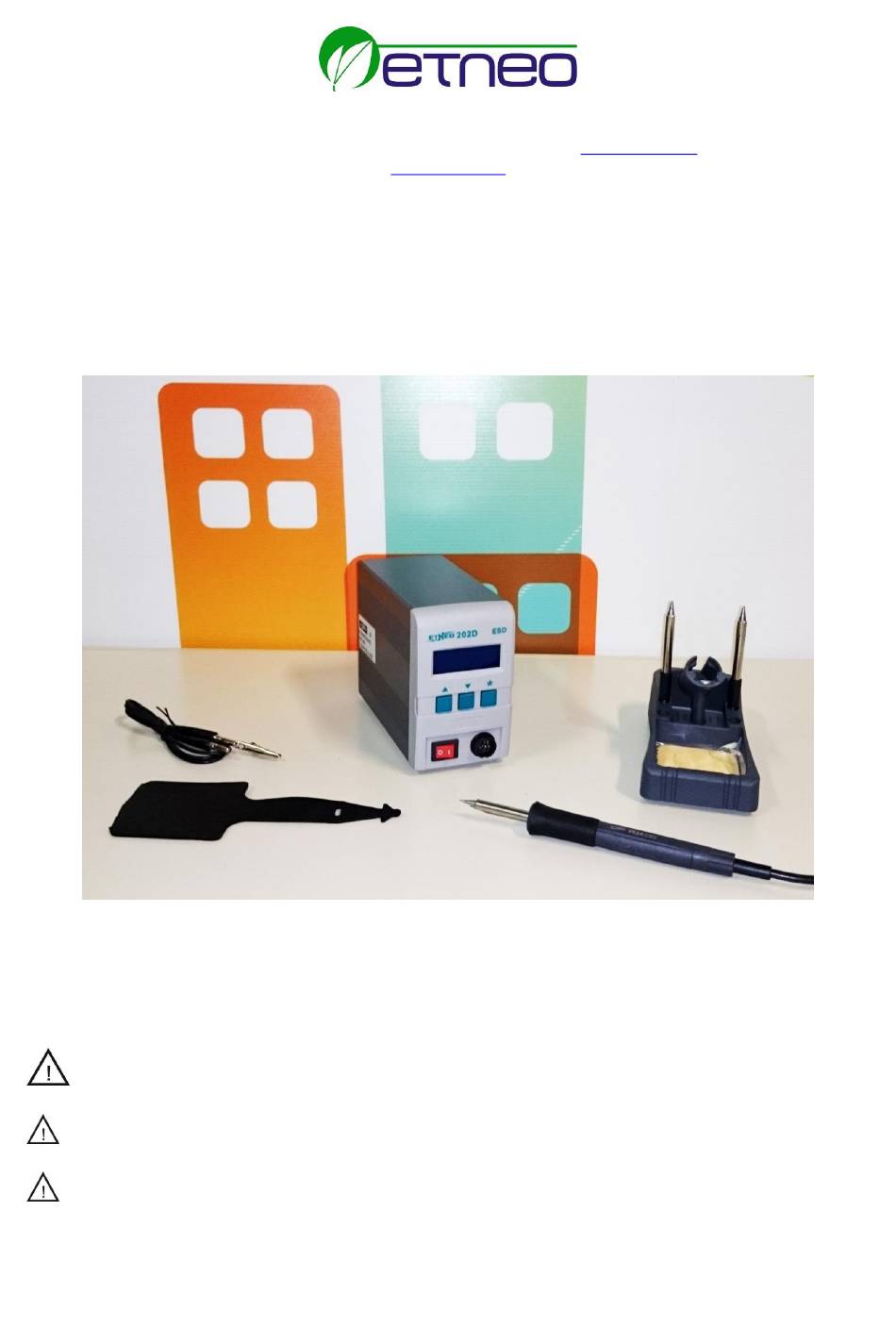

Intelligent Lead Free Soldering Station 202D
High frequency Rapid recovery of temperature
1. Safety Instruction
WARNING: In this instruction manual, "Warning" "Caution" and" Note" are defined as follows:
WARNING: Misuse may potentially cause death of, or serious injury to the user.
CAUTION: Misuse may potentially cause injury to the user or physical damage to the objects involved.
NOTE: A Note indicates a procedure or point that is important to the process being described.
Scientific technological Center
Via Bovio 6 – 28100 Novara - NO - Italy
www.etneo.com
Sensor in front Digital Calibration
OPERATION MANUAL
info@etneo.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 202D and is the answer not in the manual?

Questions and answers

Related Manuals for Etneo 202D

Summary of Contents for Etneo 202D

  • Page 1 Via Bovio 6 – 28100 Novara - NO - Italy Tel +39 0321697200 - Fax +39 0321 688515 - Email: info@etneo.com www.etneo.com Intelligent Lead Free Soldering Station 202D Sensor in front Digital Calibration High frequency Rapid recovery of temperature OPERATION MANUAL 1.
  • Page 2 CAUTION When the power is on, the tip temperature is very high. Mishandling may lead to burns or fire, be sure to comply with the following precautions:  Please use the unit only as the described manner, and avoid abusing it ...

  • Page 3: Specification And Characteristic

    3. Specification and characteristic Specification Power 120W Output voltage The temperature range of the iron 80℃~480℃ The temperature range of the sleeping 50℃~250℃ The time range of the sleeping 0~250 (unit: minute) The time range of the shutting 0~250 (unit: minute) Temperature Stability ±2℃...

  • Page 4: Setting The Parameters

    Iron Holder and Sponge 1) Dampen the small cleaning sponge with water and then squeeze it dry. Place it in the groove of the iron holder base 2) Add a little water to the iron holder. The small sponge will absorb the water to keep the large sponge above it wet all times.

  • Page 5: Setting The Temperature

    b) If the inputted password is correct: If the display shows , this means the inputting password is correct. After displaying about four seconds, the station will come into the normal work process, and it can set the temperature. 3. Input the new password: Note: the next inputted password must be same with the last inputted password, and then the new password will be recorded in the soldering station and change the password successfully.

  • Page 6: Mode Setting

    4.3.3 Mode setting When inputting the correct password and the display shows , press “△” and “*”keys simultaneously to the mode setting. The display shows the current setting value and change the type of the modes by pressing “△”and “▽ ”keys. The changing series as following: Working mode table Press △...
  • Page 7  Take up the iron- handle Note: * The soldering iron must be placed at the soldering iron station. And only in this state, the soldering station can sleep automatically when up to the setting time. * The solder station will not into sleep when the sleeping time is 000. And the solder will sleep at once when the setting sleeping time is 001 and the handle is placed at the solder holder.

  • Page 8: Calibrating The Temperature

    5) Down temp setting a) In the down temp setting, the display shows “Down Temp”(refer to the picture) and press “△” or “▽” key to change the temperature. Once difference in temperature between the real temperature (Real Temp) and the setting temperature (set temp) is bigger than the Down Temp, the soldering station will alarm when in the alarming mode b) The range of the “Down Temp”...
  • Page 9 5. Use / care and maintenance Select a correct tip 1. Select a tip which maximizes contacting area between the tip and solder joint. Maximizing contact area transfers the heat more efficient, helping the operators to produce high quality solder joints quickly 2.
  • Page 10 3) Never keep the soldering iron at high temperature for a long time when not using,. Because the tip will be covered with oxide that can greatly reduce the tip's heat conductivity 4) Wipe the tip and coat it with fresh solder after using. This helps to prevent tip oxidation 5) Clean the tip regularly with a cleaning sponge.

  • Page 11: Error Messages

    Error messages Various error messages will be displayed when there is something wrong with the device. If the following message is displayed, refer to the 5.6. Sensor error: if there is some malfunction in the sensor or anywhere in the sensor S–E circuit, “S-E”...
  • Page 12 5.6.2 Checking the heating element Pull out the plug and measure the resistance value between the pins of the connecting plug when the heating element cooling down to the room temperature. 1) If the values of ‘a’ and ‘b’ are different from the values in the following table, replace the heating element or sensor or cord assembly.

  • Page 13: Replace The Fuse

    Note: * The joint between wire and pin should be covered with a shrinkable hose. * No heating when not installing the tip or else the heating element will be damaged. 5.6.4 Test the heating element 1. Measure the resistance values between pin 4 and pin1 or pin4 and pin2, between pin5 and pin 1or pin 2, between pins 3 and pin 1 or pin 2, between pin 3 and pin 4 or pin 5.
