Advanced accessible gaming mixing from oneswitch.org.uk and celticmagic.org.
Read this manual before using.
FEATURES INCLUDE
SHIFT (switch 10) gives extra power to switches and joysticks.
One stick and one button enough to reach all standard controls.
SLOTS (1-9) can make your controls appear as a mouse or
gamepad. Slots can be customised upon request.
Multi-platform compatible with many computers, phones and
consoles. Some machines require extra adapters.
Optional PC INPUT controls and apps (e.g. Voice Attack) can be mixed in by using the short-cable to the PC Prog socket and using
the free GTuner IV software in KMG Capture mode.

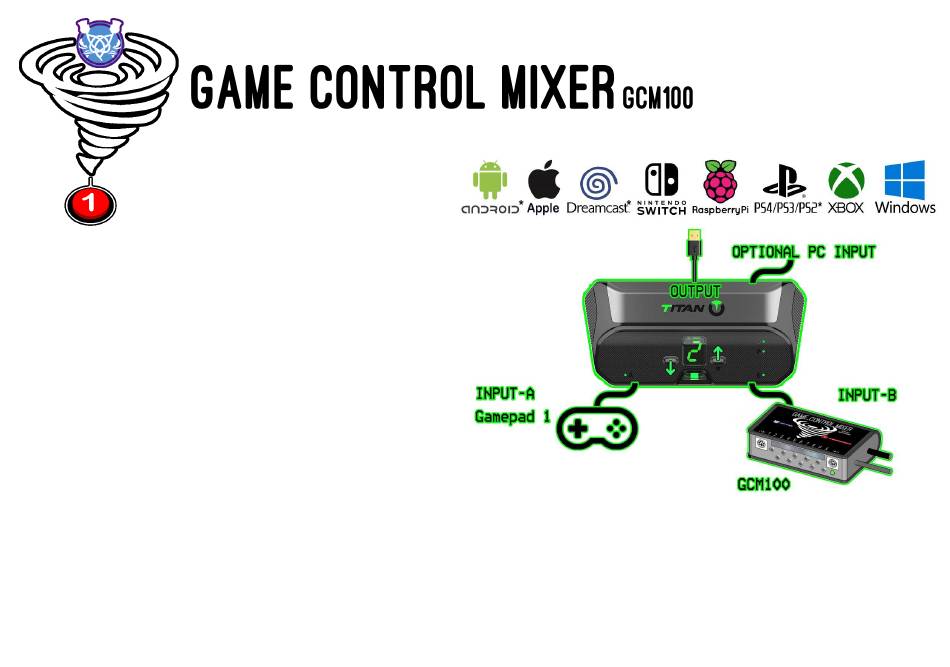

INPUT-A
connect STANDARD gamepad. See HELP section for more.
17.02.2020
Advertisement
Summary of Contents for OneSwitch GCM-100
- Page 1 17.02.2020 Advanced accessible gaming mixing from oneswitch.org.uk and celticmagic.org. Read this manual before using. FEATURES INCLUDE SHIFT (switch 10) gives extra power to switches and joysticks. One stick and one button enough to reach all standard controls. SLOTS (1-9) can make your controls appear as a mouse or gamepad.
- Page 2 INPUT-B connect GCM100 / GCM100P (sip-puff) IMPORTANT: Connect PS/2 (6-pin round connector) external joysticks before powering up. Do not touch any controls until the GCM coloured lights settle down. The Titan should display a number (1-9) with a green light for INPUT-A, INPUT-B and OUTPUT. Connect accessibility switches and the optional LED Compass Display (left-side connector) at any time.
- Page 3 Titan Two SLOTS CHANGE SLOTS* = T2 UP/DOWN buttons SLOT 1 = MOUSE Experimental work in progress feature that may require a PC restart to work correctly. STICK 1 = Mouse pointer (W1-W3 = MOUSE/DRAG/SCROLL) (E1-E3 = SAME BUT SLOWER) (S1=S3 = ALTERNATIVE) = LEFT-CLICK = RIGHT-CLICK...
- Page 4 GCM Joystick Modes SHIFT + move stick 1-6 times North, East, South or West. LED compass will indicate the current mode. Modes 4-6 blink. N1 = Menu buttons N2 = PS4 Touch-pad N3 = Shoulder buttons N4 = RetroPie menu buttons N5 = PS4 Touch-pad Analogue N6 = R2 / L2 E1 = Right-stick...
- Page 5 KMG Capture: Mixing in Windows 10 controls Keyboard, Mouse and Gamepad (KMG) controls can be “captured” from a Windows PC and added to a control mix. PC apps such as Voice Attack (speech recognition), Project Iris (eye-gaze), JoyToKey and Universal Control Remapper (advanced gamepad to keyboard converters) are ideal. 1.
- Page 6 Sip-Puff Essentials (GCM100P version) Celtic Magic supplied headsets or tube assemblies are supplied with a 60ml syringe with a female “Luer Lock” connection. To clean the internal pipes this can be attached to just the headset itself or the whole pipe assembly. To clean the internal pipework, use a warm strong soapy water solution.
- Page 7 HELP Customisation options includes joystick sensitivity adjustment, button blocking, latching and simple mode shifting (e.g. limit the number of modes available from two upwards). A standard game-pad can be set up so you can change the function of the joysticks too (to give 4 sticks in total maximum that can be changed).
- Page 8 N.B. Do not use round power socket on T2. Only use extra power as detailed on previous page. For more help with your Game Control Mixer contact barrie.ellis@oneswitch.org.uk. The Game Control Mixer is a joint project with Celtic Magic. We are indebted to Jefferson Koppe (ConsoleTuner.com) and Scachi for their invaluable help.
- Page 9 Custom SLOTS Slots 1-8 have the following common adjustments (all aimed at PS2 use) Platform: PS3 (to connect to Brook PS2 adapter set to PS2 mode) Input: USB-A = co-pilot (standard gamepad controls) GCM100 Joysticks = High Sensitivity E2 joystick mode (Cross/Triangle swapped) E5 joystick mode (Cross/Triangle swapped) Switch Socket 1 = Cross;...
