Summary of Contents for My Cable Mart FE-AY80

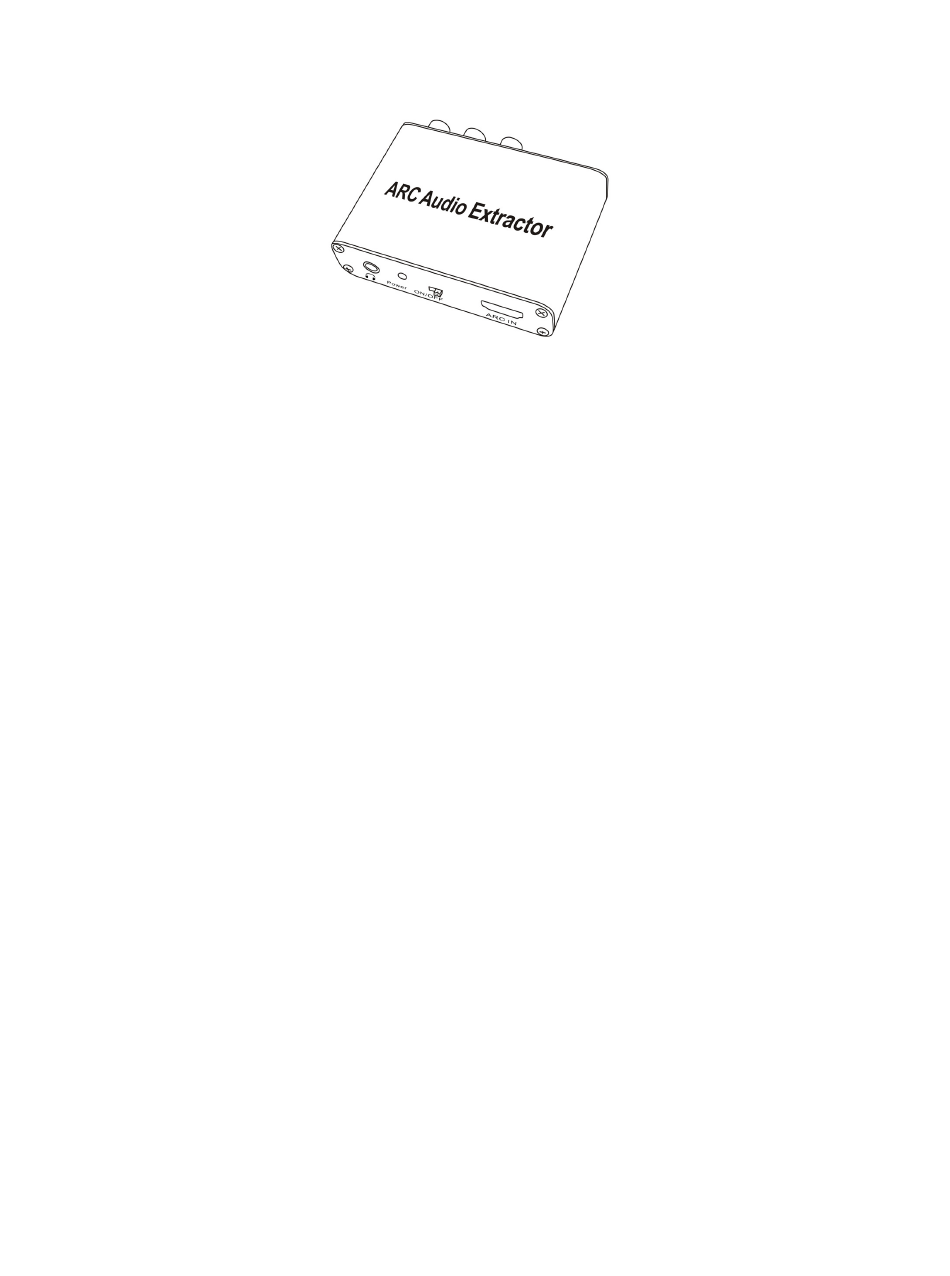

- Page 1 HDMI Audio Return Channel Adapter HDMI Audio Return Channel Adapter HDMI Audio Return Channel Adapter HDMI Audio Return Channel Adapter User’ ’ ’ ’ s Manual User s Manual User User s Manual s Manual...
- Page 2 Thank you for choosing our products.We f ocus on producing professional,high-quality,cost -effective high-tech products. Let you easily en joy high-definition digital life brought by techno logy.For the optimum performance and safety, please read these instructions carefully before connecting,operating or adjusting the product. And please keep this manual for future refere nce.
- Page 3 Support SPDIF output Support COAXIAL output Support RCA Stereo output Support 3.5mm stereo headphone output 3.5mm stereo headphone port equipped with high-performance audio.amplifier Support switch noise reduction Support automatic signal mute function Support transmission of 192KHz audio sampling rate ...
- Page 4 Storage humidity..5~95%RH (non-condensing) Case size ......81.5*58.5*21.5 (mm) Weight .............88g Package Contents: Package Contents: Package Contents: Package Contents: Adapter............1pcs Users Manual ..........1pcs DC5V/1A Power Adapter....1pcs(optional) USB power supply line....1pcs (optional) Diagram of Interfaces: Diagram of Interfaces: Diagram of Interfaces: Diagram of Interfaces: ①...
- Page 5 ②L:Left channel output ③Coaxial:Coaxial digital audio output interface,connected audio amplification equipment ④SPDIF:Optical digital audio output interface, connected audio amplification equipment ⑤DC 5V:5V Power Interface ⑥ :3.5mm stereo output ⑦Power:Power indicator,light up ⑧ON/OFF:ARC function switch(not power switch) ⑨ARC IN:HDMI/ARC input port , connected to the HDMI/ARC interface of the TV Connection Diagram: Connection Diagram:...
- Page 6 Connect the HDMI port of adapter to the HDMI/ARC port of TV via an HDMI cable. Note: Note: Note: Note: Please connect HDMI port with “ARC” mark. 2.Use optic cable, coaxial cable or RCA cable and 3.5mm audio cable to connect to the amplifier system. 3.Connect the DC head of the power adapter to the DC input of the adapter and plug the adapter into the power outlet.
- Page 7 inside parts. 7. Please use the original factory USB Power Cable. Common fault diagnosis and processing methods: Common fault diagnosis and processing methods: Common fault diagnosis and processing methods: Common fault diagnosis and processing methods: Before powering on, you should carefully check whether the cable is normal and you must ensure that all connectors are properly connected.
- Page 8 ARC HDMI interface 4.Whether the TV is turned on ARC function (use the TV's remote control to open) 5. Whether it is AGW26 standard HDMI1.4 cable (inferior quality or HDMI 1.3 version HD line without ARC function) Set the TV to stereo output port ,headp (PCM/LPCM 2-channel output) hone port...
