Summary of Contents for DHL Formula-e EFFIBOT
- Page 1 EFFIBOT GUIDEBOOK...
-
Page 2: Contents Page

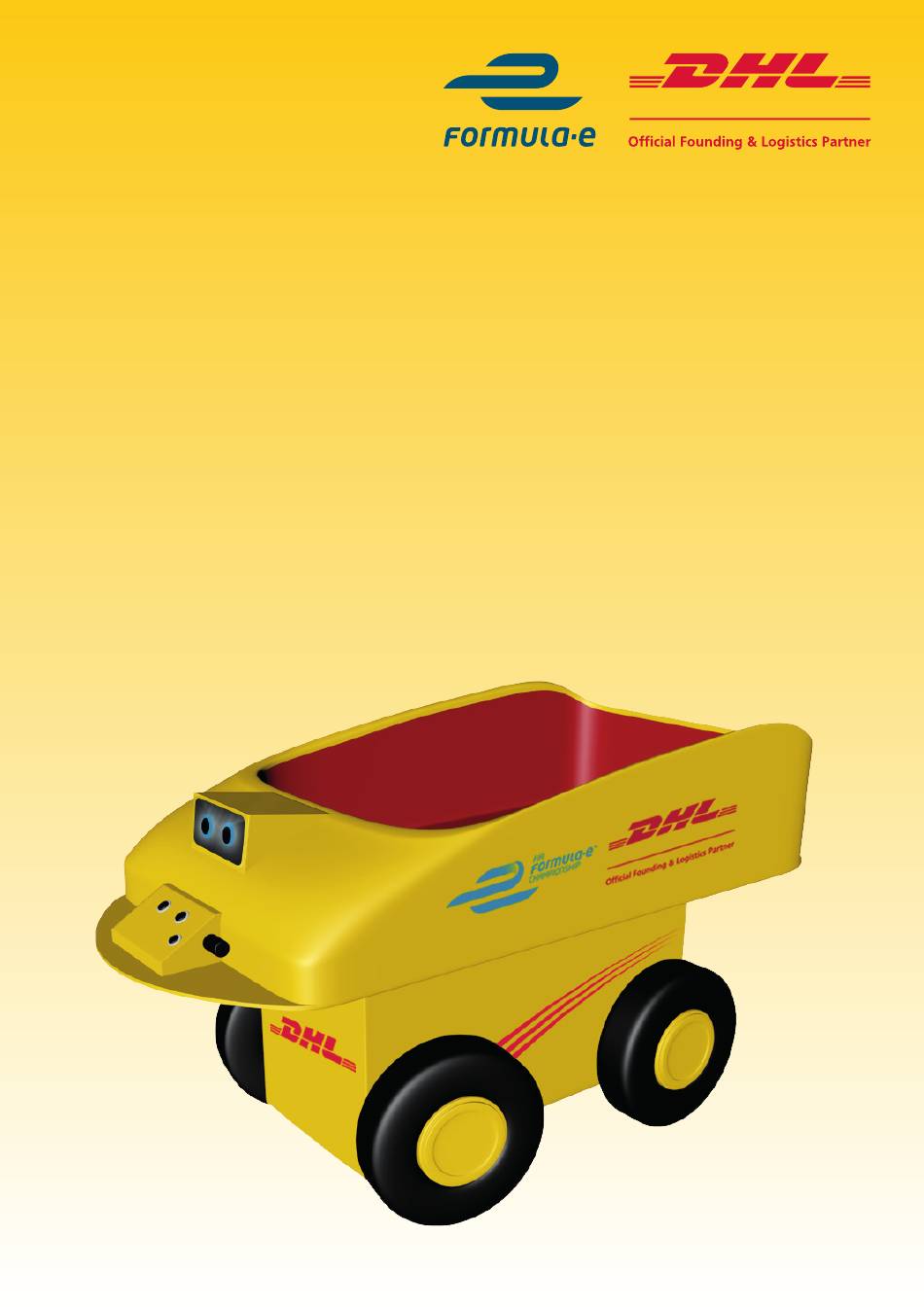

CONTENTS PAGE EFFIBOT INTRODUCTION SAFETY EFFIBOT PACKAGE CONTENTS UNDERSTANDING EFFIBOT OPERATING EFFIBOT INSTALLING & OPERATING 360 CAMERA... - Page 3 EFFIBOT INTRODUCTION DHL in partnership with Effidence are introducing a unique solution to support employees in their daily work and improve efficiencies within the picking process. Collaborative automated order picking is the next step in improving warehouse operations, by enabling multi-order picking. Pickers are accompanied by an automated cart known as EffiBOT, which moves at 7 km/h and is capable of carrying loads of up to 300kg.
-
Page 4: Safety Notes
SAFETY NOTES The following basic instructions must be observed at all times: 1. The device must not be commissioned until the manual has been read and understood. 2. The power supply to produce the supply voltage must have a safe electrical isolation by means of double insulation and a safety transformer. - Page 5 EFFIBOT PACKAGE CONTENTS The DHL EffiBOT package will contain the following items: • 1x EffiBot Robot • 1x External power charger • Remote control • Remote control charger • Effibot eyes charger...
- Page 6 EFFIBOT INTERFACE CONSOLE INTERFACE The front and rear of EffiBot are identical with consoles composed of five buttons and one LED. POWER BUTTON: To turn EffiBOT on and off, press and hold the power button for 2 seconds. • Light on indicates EffiBot is in operation •...
- Page 7 OPERATING EFFIBOT EffiBOT is a collaborative automated robot that assists in moving objects by following a designated user. When operating EffiBOT, use on a flat surface, walk at a steady pace and stay within the search area. CHARGING EFFIBOT 1. Connect electrical charger to the lowest of three connector ports on the side of EffiBOT. 2.
- Page 8 DESIGNATE USER TO PRECEDE To Operate EffiBOT in ‘Precede Mode’, a user must be designated using the following steps: 1. Press ‘Precede Me’ button on console interface. 2. User must stand to the rear of EffiBOT. 3. Once recognised, EffiBOT will select the user and ‘precede mode’...
-
Page 9: Box Contents
INSTALLING & USING 360 CAMERA Handle the lens with caution because it is made of glass. Always store the camera in the included soft case when not in use. The Ricoh 360 Camera is not weatherproof, so avoid using in temperatures exceeding 40 Celsius, 90% humidity as well as rain or snow. -
Page 10: Installing The Camera
INSTALLING THE CAMERA 1. Remove the camera from the box, taking care not to touch the glass lens. 2. Move the Veledge camera bracket to align with the top of EffiBOT. Tighten to hold in place. 3. Screw the base of the camera into the bracket securely and face the lens parallel with the front and back of EffiBOT. -
Page 11: Viewing Content
2. Open “RICHO THETA S” in My Computer and click through to “DCIM”. 3. Select the file you wish to transfer and send it to the following contacts via WeTransfer or DHL File Transfer tool. Once the videos have been shared, please delete these from the camera via the Smartphone.
