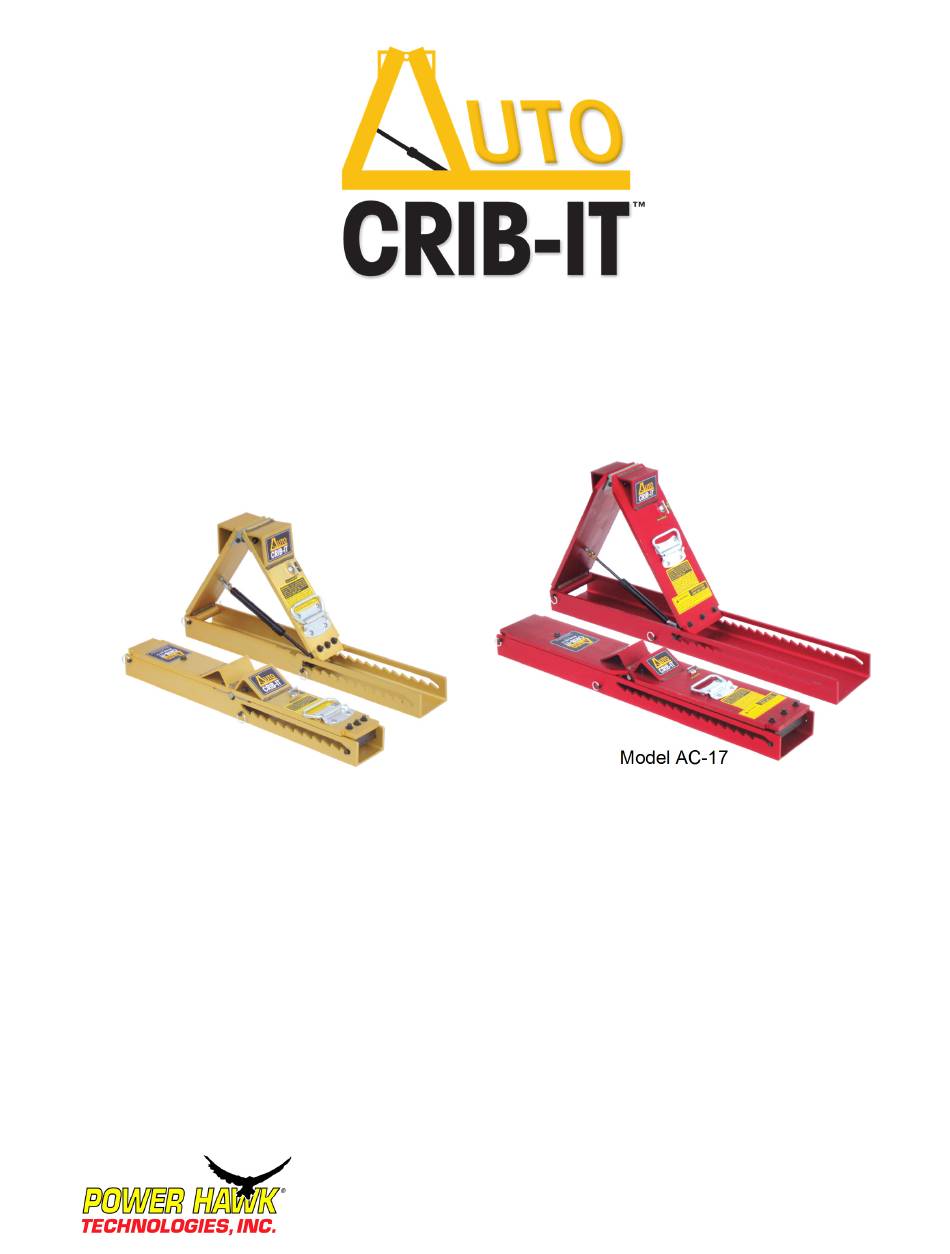

INSTRUCTION MANUAL
For
MODELS AC-14 and AC-17
Model AC-17
Model AC-14
AUTO CRIB-IT™ Description
CONGRATULATIONS on your purchase of the AUTO CRIB-IT™!!... the easiest and
quickest vehicle stabilization tool on the market! Lightweight and portable, this tool can
be positioned and operated to automatically extend and stabilize vehicles in seconds.
Use it for auto-extrication and other stabilization operations, up to a maximum load of
2000 lbs for the AC-14 and 2800 lbs for the AC-17! The AUTO CRIB-IT is patented and
utilizes gas-spring actuated extender plates that automatically rise to engage the
working material and lock into place. Because the AUTO CRIB-IT is gas-spring-loaded,
it will self-adjust upward and lock as weight is removed from the vehicle.
The AUTO
CRIB-IT can also be placed completely under and parallel to rocker panels to avoid trip
hazards. Because the tool is made from high-strength aluminum and other metal parts,
the AUTO CRIB-IT is easily decontaminated. Its super compact design makes it easy
to stow and can free up room for other vital equipment.
Rockaway, New Jersey USA
Rev F 3/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTO CRIB-IT AC-14 and is the answer not in the manual?

Questions and answers

Summary of Contents for Power Hawk AUTO CRIB-IT AC-14

  • Page 1 INSTRUCTION MANUAL MODELS AC-14 and AC-17 Model AC-17 Model AC-14 AUTO CRIB-IT™ Description CONGRATULATIONS on your purchase of the AUTO CRIB-IT™!!... the easiest and quickest vehicle stabilization tool on the market! Lightweight and portable, this tool can be positioned and operated to automatically extend and stabilize vehicles in seconds. Use it for auto-extrication and other stabilization operations, up to a maximum load of 2000 lbs for the AC-14 and 2800 lbs for the AC-17! The AUTO CRIB-IT is patented and utilizes gas-spring actuated extender plates that automatically rise to engage the...
  • Page 2 F. Slide Bracket Pin (P/N 2C0934-1) G. Pin (P/N 2C0935-1) H. Gas Piston Spring Kit (P/N C16-29760) Handle (P/N 2C0912-1) J. Lock (P/N PHT1820A26) K. Bottom Grip Surface (P/N PHT6970T153) POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA Rev F 3/2013...

  • Page 3: General Safety Information

    2. Determine the AUTO CRIB-IT orientation for proper stabilization (i.e. perpendicular or parallel to the rocker panel) Starting Clearance Perpendicular Parallel POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA Rev F 3/2013...
  • Page 4 4. Disengage AUTO CRIB-IT Lock by turning the knob Clockwise as shown below. Be sure to hold the top plates down against the Channel Base to prevent unintended automatic extension. POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA Rev F 3/2013...
  • Page 5 Model AC-14: 2,000 LBS. MAX LOAD Model AC-17: 2,800 LBS. MAX LOAD Failure to do so may result in breakage of components and may cause serious personal injury, damage to property and/or equipment. POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA Rev F 3/2013...
  • Page 6 If the Tab becomes bent, use pliers to straighten so that it properly engages the upper part of the Channel slot when in the WRONG! LOCKED position. POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA Rev F 3/2013...

  • Page 7: Maintenance

    Apply WD-40 (or equivalent) to slide pin, fixed pin, channel automatic operation base slots, and hinge. Annually Check for sufficient Replace gas spring piston assembly as necessary. spring action POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA Rev F 3/2013...

  • Page 8: Troubleshooting

    300 Forge Way, Suite 2, Rockaway, New Jersey 07866 USA 1-800-PWR-HAWK (1-800-797-4295) or 973-627-4646 Fax: 973-627-4622 www.powerhawk.com “Power Hawk” is a Registered Trademark of Power Hawk Technologies, Inc. “AUTO CRIB-IT” is a Trademark of Power Hawk Technologies, Inc. POWER HAWK TECHNOLOGIES INC., Rockaway, New Jersey USA...

  • Page 9: Warranty

    (3) any special or punitive damages of any nature. If Power Hawk Technologies, Inc. determines, in its sole and final discretion, that the nature of the defect precludes remedy by repair and/or replacement Power Hawk Technologies, Inc.
